Description
The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5" tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.
The Blackmagic Design 6K G2 camera comes with a DaVinci Resolve Studio activation key plus a 30W power supply, offering simultaneous battery charging, an NP-F570 battery, a lens port cap, and a camera strap.
Specifications
Lens Mount | Canon EF |
Sensor Resolution |
Effective: 21.2 Megapixel (6144 x 3456)
|
Image Sensor |
23.1 x 12.99 mm (Super35) CMOS
|
ISO Sensitivity Range | 100 to 25,600 |
Internal Recording Modes |
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 Mb/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 Mb/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 Mb/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] |
External Recording Modes |
4:2:2 10-Bit via HDMI
1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps |
Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast |
Video I/O |
1 x HDMI (Unspecified Signal) Output
|
Mobile App Compatible |
Yes: iOS Only
App Name: BlackMagic Camera Control Functionality: Adjust Settings, Remote Control *As of May, 2023: Check with manufacturer for the most up-to-date compatibility Show More |
Battery Type | Sony L-Series |
Imaging | |
Lens Mount | Canon EF |
Lens Communication |
Yes, with Autofocus Support
|
Sensor Resolution |
Effective: 21.2 Megapixel (6144 x 3456)
|
Image Sensor |
23.1 x 12.99 mm (Super35) CMOS
|
Image Stabilization | No |
Built-In ND Filter | No |
Internal Filter Holder | No |
Capture Type | Stills & Video |
Exposure Control | |
Shutter Type |
Electronic Rolling Shutter
|
Shutter Type |
Electronic Rolling Shutter
|
ISO Sensitivity Range | 100 to 25,600 |
Shutter Angle | 5 to 360° |
Advertised Dynamic Range | 13 Stops |
Video Capture |
|
Internal Recording Modes |
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 Mb/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 Mb/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 Mb/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] |
External Recording Modes |
4:2:2 10-Bit via HDMI
1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps |
Sensor Crop While Recording |
6K (6144 x 2560) in 2.4:1 When Recording in Raw
5744 x 3024 When Recording in Raw 4K (4096 x 2160) When Recording in Raw 3728 x 3104 When Recording in Raw 2868 x 1512 When Recording in Raw |
Fast-/Slow-Motion Support | Yes |
Built-In Microphone Type | Stereo |
IP Streaming | No |
Interface | |
Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast |
Video I/O |
1 x HDMI (Unspecified Signal) Output
|
Audio I/O |
2 x Mini XLR Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Power I/O |
1 x Weipu SF610/S2 (12 to 20VDC) Input
|
Other I/O |
1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output
1 x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
Wireless | Bluetooth Control |
Mobile App Compatible |
Yes: iOS Only
App Name: BlackMagic Camera Control Functionality: Adjust Settings, Remote Control *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | No |
Monitor | |
Display Size | 5" |
Resolution | 1920 x 1080 |
Display Type | Tilting Touchscreen LCD |
Type | Optional, Not Included |
Focus | |
Focus Type | Auto and Manual Focus |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General | |
Battery Type | Sony L-Series |
Shoe Mount | No |
Tripod Mounting Thread | 2 x 1/4"-20 Female |
Accessory Mounting Thread | 1 x 1/4"-20 |
Material of Construction |
Carbon Fiber, Polycarbonate
|

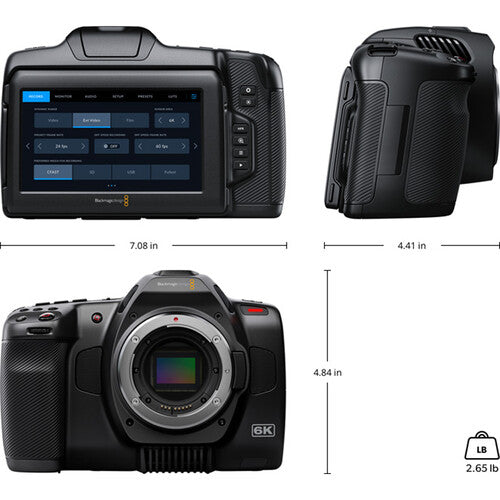

Dimensions (W x H x D) |
7.08 x 4.84 x 4.41" / 17.98 x 12.29 x 11.2 cm
|
Weight | 2.65 lb / 1.20 kg |
Packaging Info | |
Package Weight | 4.345 lb |
Box Dimensions (LxWxH) | 10.1 x 6.9 x 6.9" |
