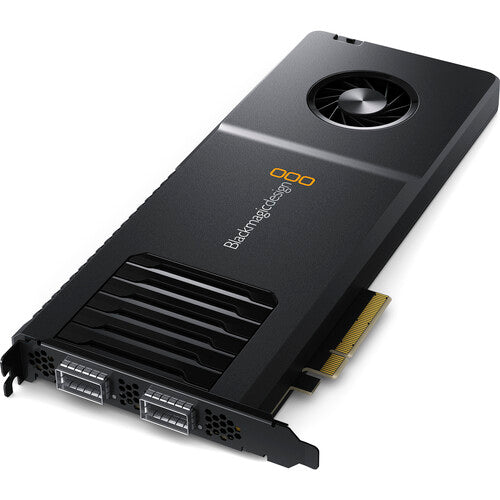

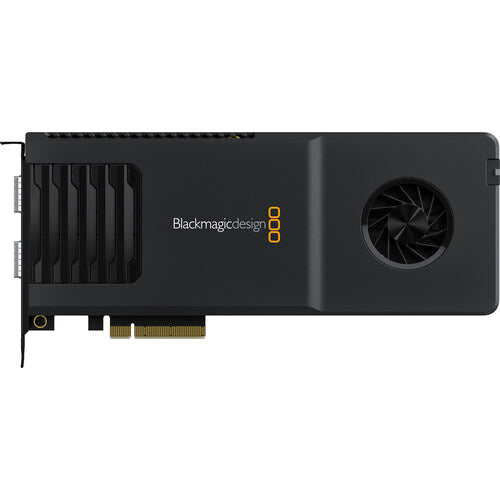

Experience the next level of broadcast technology with the Blackmagic Design DeckLink IP 100G. This powerful PCIe capture and playback card supports up to eight UHD video channels with dual 100G Ethernet ports for seamless redundancy. With GPU Direct RDMA, enjoy ultra-low latency for real-time graphics, AI, and live compositing. Compatible across multiple systems, it's a must-have for modern workflows.
Features
- PCIe IP Video Capture & Playback Card
- Up to 8 Simultaneous UHD Video Channels

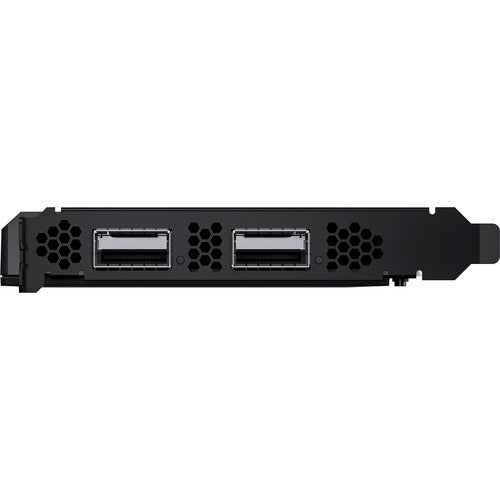

- Dual Redundant 100G Ethernet Ports
- GPU Direct RDMA Support Reduces Latency
- PCI Express Gen 4 Interface with 8 Lanes
- Ideal for 2110 IP Broadcast Systems
- Universal Video Software Compatibility
- Compatible with macOS, Windows & Linux
- Media Express Software Included
- Built-In Cooling Fan
Specifications
| Video I/O |
- |
| Other I/O |
- |
| Video Resolution |
Fiber Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) |
|
4096 x 2160 up to 120 fps |
| Audio Format |
Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit |
| Embedded Audio |
IP: 2-Channel |
| Video Standard Compliance |
SMPTE: ST 2110-20/ST 2110-21/ST-2110 |
| HDR Support |
Yes, Hybrid Log Gamma |
| Broadcast System Compatibility |
NTSC, PAL |
| OS Compatibility |
Windows 10 to 11 |
|
macOS 14.0 |
|
macOS 15.0 or Later |
|
Linux |
| Power Consumption |
- |
| Operating Conditions |
41 to 122°F / 5 to 50°C at 0 to 90% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 0 to 90% Humidity |
| Dimensions |
10.52" / 26.72 cm |
| Weight |
390 g |
What's in the box
- Blackmagic Design Decklink IP 100G
- Limited 3-Year Manufacturer Warranty
