Description

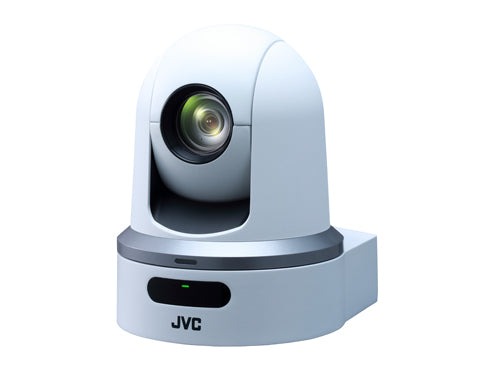

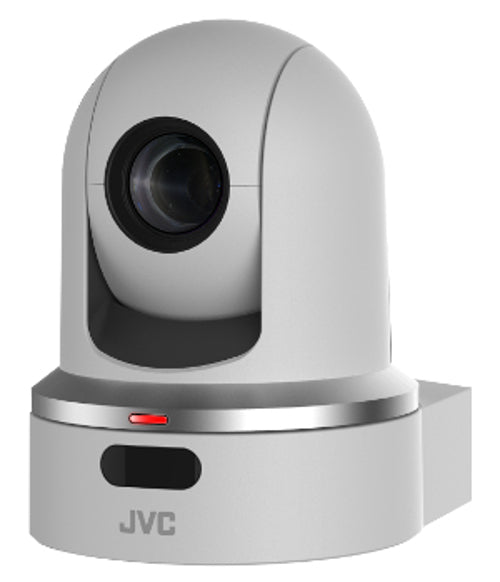

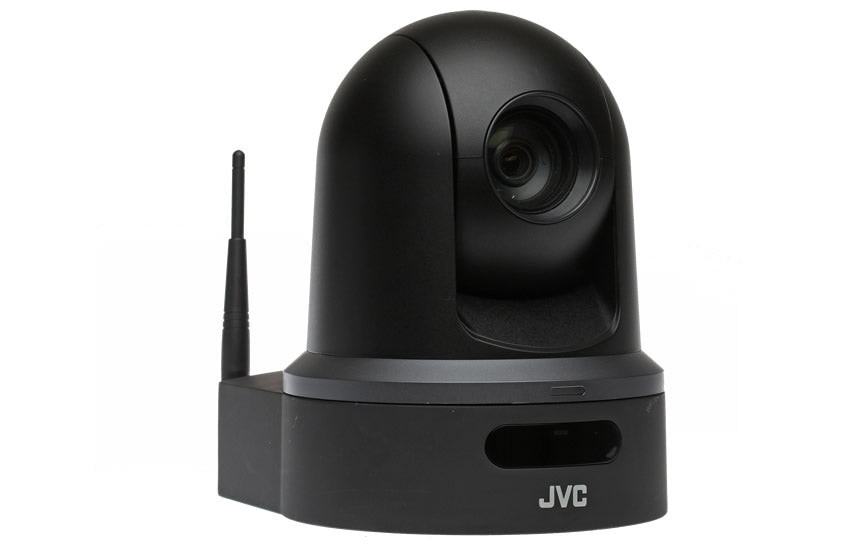

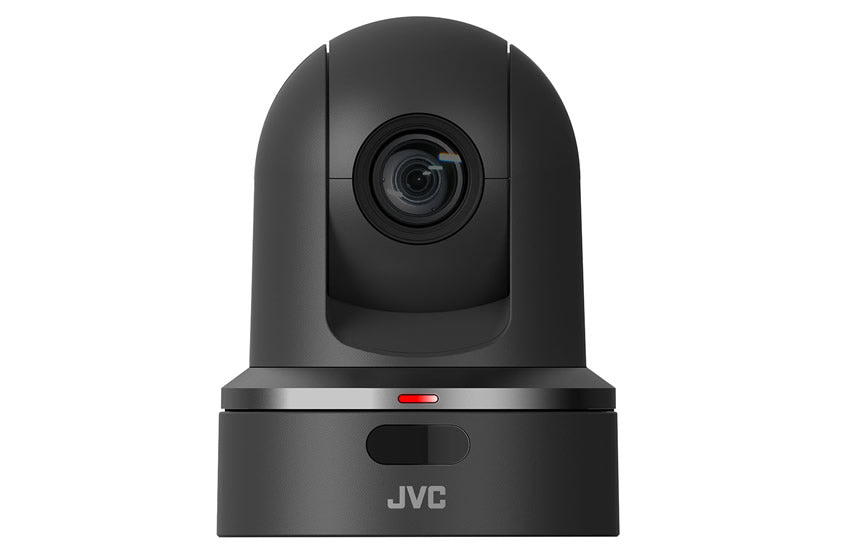

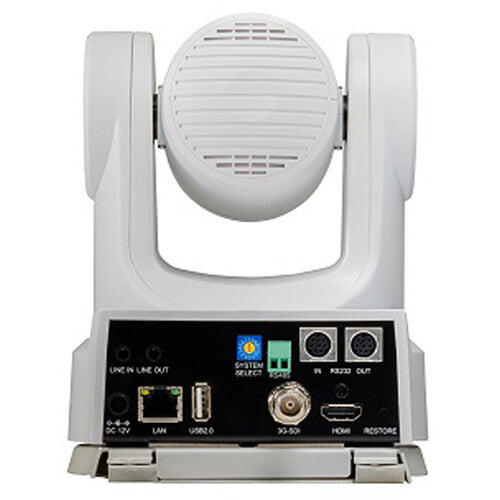

JVC KY-PZ100W (KYPZ100W) Robotic PTZ Network Video Production Camera (White). The KY-PZ100 is a robotic pan, tilt and zoom video production camera. It's the first PTZ camera that features JVC's unique IP communications engine providing network connection via WiFi, 4G-LTE, or direct LAN connection. It's designed to be used as a stand alone remote camera or as part of a multi-camera system in both studio and field environments. In addition to its 3G-SDI and HDMI outputs, it is also capable of reliably streaming 1080i/60, 1080p, 720p, 540p and 270p video with 2-channel audio--all with minimal latency and forward error correction. Camera control is possible from a web browser, or with the dedicated RM-IP100 remote control panel, or from a from a variety of remote units using standard protocol. The camera also includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card with the ability to upload the recorded files to an external server.

Features

1/2.8-inch CMOS sensor (2.2 million pixels)
Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
Fast f/1.6-4.7 maximum aperture for excellent low light
LoLux mode (down to 0.01 lux)
Robotic pan, tilt and zoom
Full HD 1080p, 1080i, 720p video
3G-SDI and HDMI digital outputs
2 channels audio (or 1 channel balanced audio w/phantom power)
USB host connection for WiFi or 4GLTE adapter
LAN connector supports Power over Ethernet
Advanced IP communications capability:
Streaming with SMPTE 2022 forward error correction
Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control
Low latency streaming
Micro SDHC/SDXC memory card recording
Remote control via RS-232C / RS-422, or via IP controller
Can memorise over 100 preset settings and positions
Can be mounted u pside-down or right-side-up

SPECIFICATIONS

Sensor	1/2.8-inch CMOS sensor (2.2 million pixels)
Zoom	Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
