Description

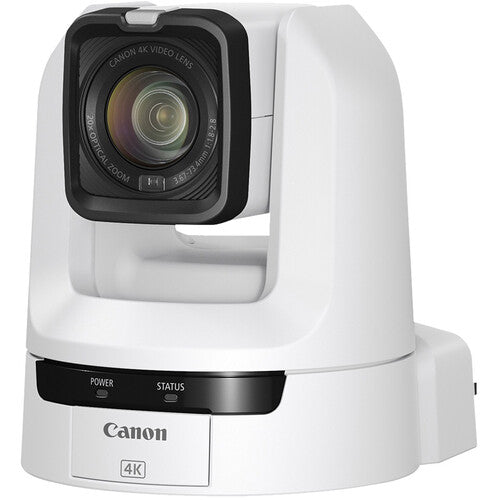

Enhance your production with remotely controlled cameras to easily operate with a small team while delivering a high-quality output. The exquisite titanium white CR-N100 4K NDI PTZ Camera from Canon is the perfect addition to elevate your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event venue, or even documentary shoot. Equipped with features of a Canon camcorder like a 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, and optical image stabilization, this camera also offers scene modes, 20x optical zoom, 20x digital zoom, microphone input, and video capture and output up to UHD 4K. With NDI|HX and SRT support, no additional license is required, making it easy to integrate the camera into your existing NDI network with minimal setup.
Features
- Capture up to UHD 4K30 / 1080p60 Video
- 8.29MP 1/2.3" CMOS Sensor with Hybrid AF
- HDMI, IP & USB-C Video Output
- 20x Optical, 20x Digital Zoom, AWB
- Optical Image Stabilization
- Built-In NDI|HX, SRT, PoE+ Support
- 3.5mm Audio Input, AC Adapter Included
- Canon DIG!C DV6 Processor
- IP, RS-422, IR, and Wi-Fi Control
- Works with Canon Software & Controllers
Specifications
| Image Sensor |
1/2.3"-Type CMOS
|
| Sensor Resolution |
Actual: 21.14 Megapixel
Effective: 8.29 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Built-In ND Filter | No |
| Image Stabilization |
Optical in Integrated Lens
|
| Focus Control | Autofocus Manual Focus |
| Shutter Speed |
1/2000 to 1/6 Second
|
| Gain | 0 to 36 dB |
| Minimum Illumination |
1.5 Lux at 1/30 Shutter Speed
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2000 to 15,000K
Presets: Set B, Manual, Set A, AWB |
| Focal Length |
3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
|
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 20x |
| Field of View |
Horizontal: 65.6 to 3.6°
Vertical: 39.8 to 2° |
| Maximum Aperture | f/1.8 to 2.8 |
| Minimum Focus Distance |
Wide: 0.4" / 1.0 cm
Telephoto: 23.6" / 60.0 cm |
| External Recording Modes |
USB
HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Embedded Audio | HDMI |
| Broadcast Output | NTSC/PAL |
| Gamma Curve |
Rec709, Standard
|
| IP Streaming |
H.264, NDI|HX, RTMP, RTMPS, RTP, RTSP, SRT
3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p |
| Presets |
100 via IP, VISCA
|
| Move Speed |
Pan: 2 to 300°/sec
Tilt: 0.2 to 170°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 130° (-30 to 100°) |
| Tally Light | Yes |
| Supported Control Protocols | Canon XC IR RS-422 VISCA |

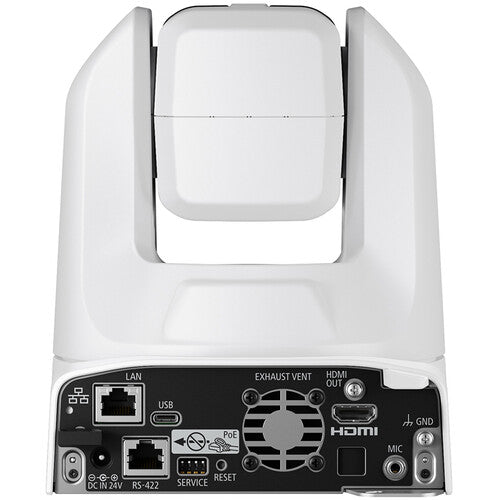

| Video I/O |
1x HDMI (Unspecified Signal) Output
1x RJ45 (NDI) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
|
| Other I/O |
1x RJ45 (RS-422, VISCA) Input
1x USB-A Input |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | PoE+ 802.3at |
| Power I/O |
1x Barrel (24VDC) Input
|
| Power Consumption |
PoE: 16.2 W
Power Supply: 24 VDC 13.9 W |
| Mounting |
1x 1/4"-20 Female for Tripod
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| OS Compatibility |
Computer: Windows 10 or Later / macOS 11 Only
Mobile: Android/iOS |
| OS Compatibility |
Windows 10 (64-Bit Only)
macOS 11 |
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup |
| Dimensions (W x H x D) |
154 x 178 x 164 mm (Without Protrusions)
|
| Weight |
2.2 kg (Body Only)
|
What's in the box
- Canon CR-N100 4K NDI PTZ Camera with 20x Zoom (Titanium White)
- IR Remote Control
- Mounting Plate
- Mounting Plate Screw
- Safety Wire
- Safety Wire with Screw
- AC Adapter
- Power Cable
- Remote Battery
- Limited 1-Year Manufacturer Warranty
