Description
This black KY-PZ100 Robotic PTZ Network Video Production Camera from JVC can be used as a single camera or part of a multi-camera shoot. It features a 1/2.8" sensor and captures 1080i/p and 720p footage to a microSDHC/SDXC card slot (microSD card not included). The PTZ camera features 3G-SDI and HDMI outputs and can simultaneously output video while streaming over its Ethernet port or an optional USB Wi-Fi adapter or LTE modem.
The KY-PZ100 supports RS-232C, RS-422 control signals and IP control via its RJ45 connector (Ethernet port). You can program over 100 presets and positions into the camera, which enables you to pre-plan your show. The camera can be mounted on either a tripod or ceiling, and with its POE capability you don't need to worry about running an AC power cord.
Features
- 1/2.8" CMOS Sensor, 1080i/p, 720p
- Remote Pan, Tilt, and Zoom
- 30x Optical Zoom
- 0.01 Lux in LoLux Mode
- 3G-SDI and HDMI Output
- Wireless Streaming (Requires Adapter)
- LAN Streaming and POE
- RS-232C, RS422, IP Control
- 100+ Programmable Presets and Positions
- Ceiling, Desktop, or Tripod Mount
Specifications
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | 2.13 MP |
| Gain | 0 to 48 dB |
| Signal-to-Noise Ratio | 50 dB |
| Shutter Speed | 1/60 to 1/10,000 sec |
| Max Digital Zoom | 12x |
| Optical Zoom Ratio | 30x |
| Focal Length | 4.3 to 129mm |
| Field of View | Horizontal: 2.3 to 63.7° |
| Maximum Aperture | f/1.6 to 4.7 |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | SDI, HDMI: 1920 x 1080 |
| IP Streaming | MPEG2, RTMP, RTP, RTSP, TCP, UDP, Zixi: 1080i, 1080p, 720p, 360p |
| Recording Modes | H.264: 1920 x 1080p at 50/59.94 fps (28 to 50 Mb/s) 1920 x 1080i at 50/59.94 fps (5 to 50 Mb/s) 1920 x 1080p at 25/29.97 fps (28 to 35 Mb/s) 1280 x 720p at 50/59.94 fps (18 to 35 Mb/s) 1280 x 720p at 25/29.97 fps (5 to 18 Mb/s) |
| Audio Recording | MOV: 2-Channel 48-Bit 16 kHz LPCM Audio |
| Memory Card Slot | 1 x microSDXC |
| Presets | 100 |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP Pelco-D RS-422 RS-485 |

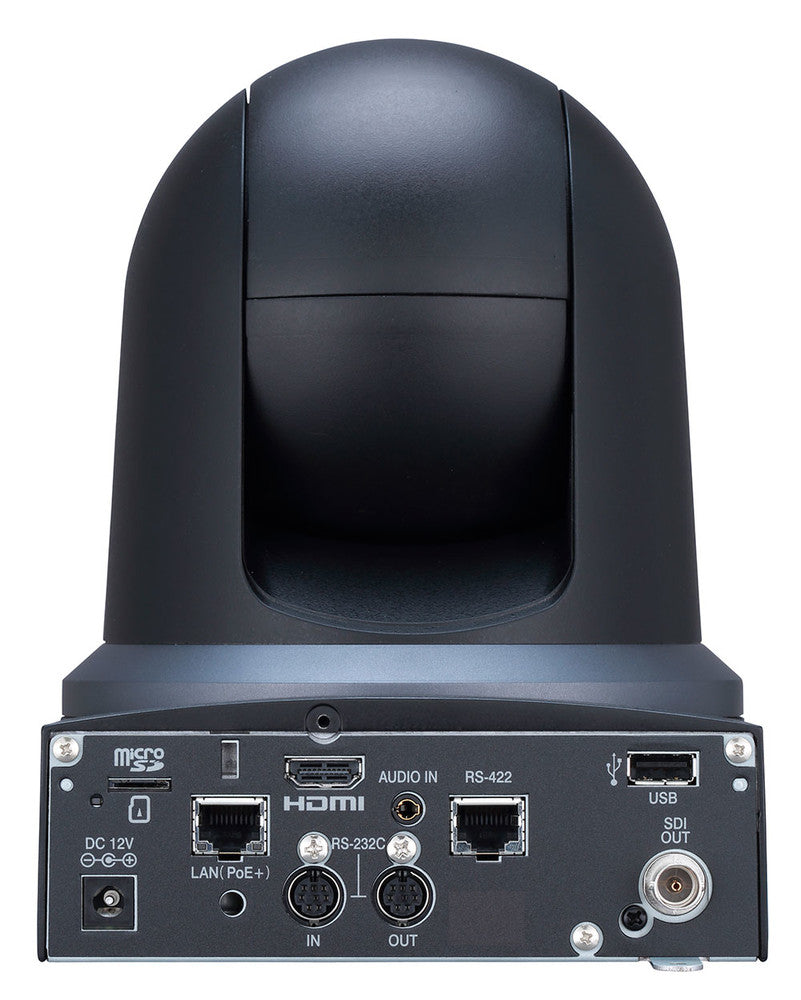

| Video Output Connectors | 1 x BNC (3G-SDI) 1 x HDMI Type A |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (LAN, RS-422) 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output |
| Other I/O | 1 x USB (Unspecified Type) (LAN) Input/Output |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC up to 1.2 A) |
| Power Consumption | PoE: 42 to 57 VDC at 0.4 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Dimensions | 7.85 x 6.77 x 5.83" / 199.5 x 172 x 148 mm |
| Weight | 4.19 lb / 1.9 kg |
| Package Weight | 7.4 lb |
| Box Dimensions (LxWxH) | 12.1 x 11.9 x 9.9" |
