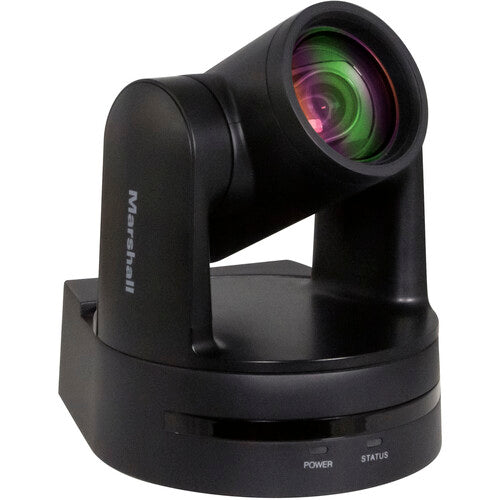

The Marshall CV612-TBI Compact 12x Auto-Track PTZ camera offers precise ±170° pan and ±90° tilt for versatile framing, controlled effortlessly via its IR remote. Supporting Dante AV-H with two audio channels and stereo input, it embeds audio seamlessly across all video outputs. Compatible with VISCA, Pelco-D, ONVIF, and VISCA-over-IP protocols, it integrates smoothly into diverse setups. Its compact, quiet design suits professional environments like boardrooms and classrooms, while advanced AI-driven features ensure reliable, high-quality performance for demanding applications.
Features
- AI-Powered Auto-Track, Follow, and Frame
- 1080p60 Resolution
- 12x Optical Zoom | 8x Digital Zoom
- 3G-SDI, HDMI, USB-C, and IP Outputs
- 1/2.8", 2.07MP HD CMOS Sensor
- 70.3 to 6.6° Horizontal AOV
- ±170° Pan | ±90° Tilt
- AI Facial Recognition Technology
- Dante-Ready AV-H with 2 Audio Channels
- Includes IR Remote Control
Specifications
| Image Sensor |
1/2.8"-Type CMOS |
| Sensor Resolution |
Effective: 2.07 Megapixel |
| Optical Zoom Ratio |
12x |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
- |
| Supported Control Protocols |
- |
| PoE Support |
- |
| Power Consumption |
- |
| Mounting |
|
| Exposure Control |
- |
| Presets |
Auto, Manual, One Push, VAR |
| Range |
2400 to 7100K |
| Lens Focal Length |
4.13 to 49.2mm |
| Field of View |
70.3 to 6.6° |
| Maximum Aperture |
- |
| Minimum Focus Distance |
- |
| Pan/Tilt |
|

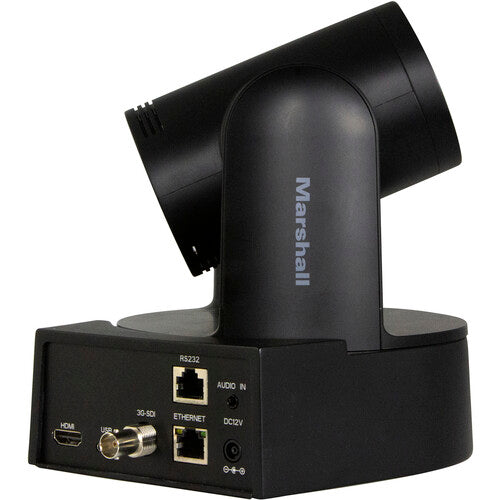

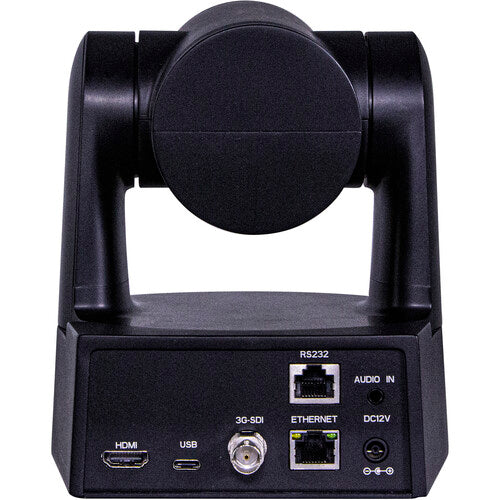

| Interface |
|
| - Video I/O |
SDI/BNC / HDMI |
|
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps |
|
1920 x 1080i at 50/59.94/60.00 fps |
|
1280 x 720 at 50/59.94/60.00 fps |
|
USB |
|
1920 x 1080p at 25/30.00/50/60.00 fps |
|
1280 x 720 at 25/30.00/50/60.00 fps |
|
800 x 600 at 30.00 fps |
|
720 x 576 at 30.00 fps |
|
960 x 540 at 30.00 fps |
|
720 x 480 at 30.00 fps |
|
640 x 480 at 30.00 fps |
| -Audio I/O |
- |
| -Other I/O |
- |
| Built-In Microphone |
- |
| Built-In Speaker |
- |
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
- |
What's in the box
- Marshall Electronics CV612-TBI Compact PTZ Camera with AI Auto-Framing (Black)
- 12V Power Adapter
- IR Remote Control
- USB-C Cable
- Limited 2-Year Manufacturer Warranty
