Description

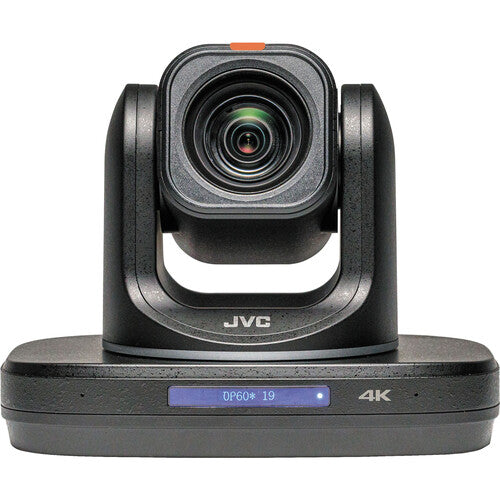

Elevate your control over remotely capturing sharp and vibrant images up to UHD 4K60 with the sophisticated and exclusive black KY-PZ510 NDI|HX 4K PTZ Remote Camera from JVC. This ultrawide angle PTZ boasts a 1/2.8" CMOS, 8.40 MP sensor, and an integrated 12x optical zoom, perfect for any setting from a luxurious house of worship to a high-end classroom or a professional web conference. With advanced tracking technology, you can easily follow specific subjects within the frame, while multiple video outputs including HDMI, 3G-SDI, and USB Type-C, as well as IP and ND 5 streaming, offer seamless versatility. Supported by H.264/H.265/MJPEG video compression and capable of transmitting IP video streams using RTSP, RTMP, and SRT protocols, this camera offers unparalleled clarity and efficiency. Plus, with up to 255 presets, you can effortlessly
Features
- 1/2.5" 4K CMOS Sensor, 12x Optical Zoom
- Capture up to UHD 4K 3840 x 2160p30
- HDMI, 3G-SDI & NDI|HX Video Output
- 255 Presets, 3.5mm Stereo Audio In/Out
- RS-232/RS-485 Serial Control, Cascading
- Supports H.264/H.265/MJPEG Compression
- Supports RTSP, RTMP, SRT, HTTP Protocols
- Embedded AAC and G712 Audio Encoding
- VITC and NTP Sync Support, PoE Power
- Camera Comes in Black Color
Specifications
| Image Sensor | 1/2.5"-Type CMOS |
| Sensor Resolution | Effective: 8.51 Megapixel |
| Built-In ND Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/30 Second |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Lens | |
| Focal Length | 4.4 to 52.8mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 71 to 8.2° Vertical: 42.7 to 4.5° |
| Maximum Aperture | f/1.8 to 2.6 |
| External Recording Modes | SDI/BNC / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps HDMI 3840 x 2160 at 25/29.97 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Embedded Audio | SDI |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG, NDI|HX, RTMP, RTSP 3840 x 2160 at 25p, 29.97p, 30p 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 1280 x 720 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 720 x 480 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 720 x 408 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 640 x 480 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 640 x 360 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 480 x 320 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 320 x 240 at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 RS-485 |
| Max Cable Length | 3937' / 1200 m (RS-485) 98.4' / 30 m (RS-232) |
| Interface | |

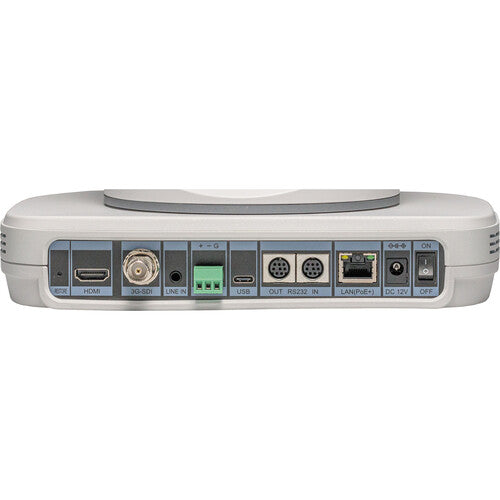

| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input 1 x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1 x Block 2-Pin (RS-485) Input/Output 1 x USB-A Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN, VISCA) Control Input |
| Built-In Speaker | No |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 60°C |
| General | |
| Mounting | 1 x 1/4"-20 Female for Ceiling/Tripod 3 x M3 Female for Ceiling |
| OS Compatibility |
Windows 10
macOS 10.12.6 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A |
| Dimensions (W x H x D) | 5.6 x 6.5 x 6.7" / 14.2 x 16.5 x 17 cm |
| Weight | 1.7 kg |
What's in the box
- JVC KY-PZ400N 4K NDI HX PTZ Remote Camera with 12x Optical Zoom (Black)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Ceiling Bracket
- Limited 1-Year Manufacturer Warranty
