Capture clear and smooth UHD 4K video with the CV630-BI IP PTZ Camera. Featuring a 25x zoom lens and 8MP sensor, this camera delivers stunning imagery. With connectivity options such as 3G-SDI, HDMI, and IP over LAN, as well as precise serial control, this camera is a versatile and high-performing addition to any networked video setup.
Features
- Up to UHD 4K Resolution
- 8MP 1/2.5" Sensor
- Supports H.265/H.264/MJPEG Compression
- 25x Optical Zoom, 68° Angle of View

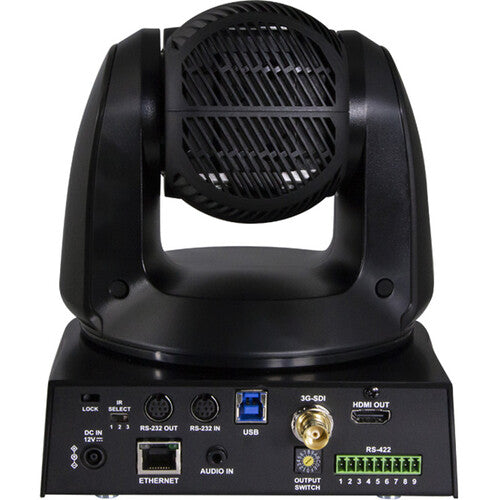

- 3G/HD-SDI, HDMI, Ethernet, USB 3.0 Out
- Stereo Mic/Line Audio Input
- RS-232, RS-422 and IP Control Support
- VISCA, VISCA over IP, Pelco, and ONVIF
- DC and PoE+ Support, Tally Light
- Includes 2 Mounts and Hardware
Specifications
| Image Sensor |
1/2.5" COMS |
| Sensor Resolution |
8MP |
| Shutter Speed |
1/1s to 1/10,000s |
| Optical Zoom Ratio |
25x Optical |
| External Recording Modes |
2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50 |
| Broadcast Output |
|
| IP Streaming |
Main : HEVC up to 2160p 59.94/50fps
Second : H.264 up to 1080p 59.94/50fps
Third : H.264 640x360 29.97fps
Webpage Preview: 640x360 15fps |
| Supported Control Protocols |
VISCA,VISCA-IP, PELCO-D, ONVIF, UVC/CGI |
| PoE Support |
PoE+ (IEEE802.3at) |
| Power Consumption |
PoE : 18W DC In : 16W |
| Mounting |
Wall/Ceiliing (A/B mount plates included) |
| Exposure Control |
|
| Presets |
- |
| Range |
- |
| Lens Focal Length |
4.8-120.5mm |
| Field of View |
68° |
| Maximum Aperture |
68 |
| Pan/Tilt |
Pan Range 340°
Tilt Range 120° |
| Interface |
|
| - Video I/O |
3G-SDI, HDMI,Ethernet,USB3.0 |
| -Audio I/O |
Ethernet / 3G-SDI / HDMI / USB 3.0 |
| -Other I/O |
- |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
- |
| Weight |
1.9kg |
What's In The Box
- Marshall Electronics CV630-BI UHD 4K IP PTZ Camera with HEVC and 25x Zoom (Black)
- Remote Control
- AC Power Cord
- Power Adapter
- RS-422 Connector
- Metal Installation Plate A
- Metal Installation Plate B
- 2 x Black M3 Screw
- 8 x Silver M3 Screw
- Limited 2-Year Manufacturer Warranty
