Description
Add a remotely controllable camera to your video production with this black KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom from JVC. This PTZ camera features resolutions up to 1080p60, a 1/2.8" HD CMOS sensor, and an integrated 20x optical zoom lens to capture crisp imagery for your event production, house of worship, classroom, meeting room, or web conference.
- In addition to HDMI, 3G-SDI, and USB output up to 1080p60, the camera supports H.264/H.265 compression and it transmits IP video streams using SRT, RTSP, RTMP, and HTTP protocols. You can also input audio using the 3.5mm analog audio input and output via 3.5mm to speakers.
- You can set the camera to rapidly move between positions using RS-485 or RS-232 control, with separately available serial controllers, IP control and configuration via a computer, or you can utilize the included IR remote control. The camera also supports UVC control over USB on macOS, Windows, Linux, and Android H.264/H.265/MJPEG video compression.
- You can power and connect the camera using one connector using PoE (Power-over-Ethernet).
The camera also supports UVC communication over USB for video control using a computer. The camera features 3.5mm analog line audio input and output. Also supported for multi-camera productions are VITC and NTP synchronization for event production support that requires VITC timecode and real-time NTP clock sync.
A ceiling bracket is included, and you can flip the camera image when it is mounted upside-down.
Features
- 1/2.8" HD CMOS Sensor, 20x Optical Zoom
- Resolution Capture up to 1920 x 1080p60
- HDMI/3G-SDI/USB Video Output, PoE Power
- 255 Presets, 3.5mm Stereo Audio In/Out
- RS-232/RS-485 Serial Control, Cascading
- Supports H.264/H.265/MJPEG Compression
- Supports RTSP, RTMP, SRT, HTTP Protocols
- Embedded AAC and G712 Audio Encoding
- VITC and NTP Sync Support
- Camera Comes in Black Color
Specifications
| Imaging | |
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| IR Cut Filter | No |
| Built-In ND Filter | No |
| Focus Control | Autofocus Manual Focus |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/30 Second |
| Minimum Illumination | 0.5 Lux |
| Lens | |
| Focal Length | 4.4 to 88.5mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 8x |
| Field of View | Horizontal: 60.7 to 3.36° Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.8 to 2.8 |
| Video Capture | |
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTSP 1920 x 1080 at 25p, 29.97p, 50p, 59.94p 1280 x 720 at 25p, 29.97p, 50p, 59.94p 1024 x 576 at 25p, 29.97p, 50p, 59.94p 720 x 480 at 25p, 29.97p, 50p, 59.94p 720 x 408 at 25p, 29.97p, 50p, 59.94p 640 x 480 at 25p, 29.97p, 50p, 59.94p 640 x 360 at 25p, 29.97p, 50p, 59.94p 480 x 320 at 25p, 29.97p, 50p, 59.94p 320 x 240 at 25p, 29.97p, 50p, 59.94p |
| Control | |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P RS-232 RS-422 RS-485 |
| Max Cable Length | 3937' / 1200 m (RS-485) 98.4' / 30 m (RS-232) |
| Interface | |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output 1 x RJ45 Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input 1 x 1/8" / 3.5 mm TRS Stereo Line Output |

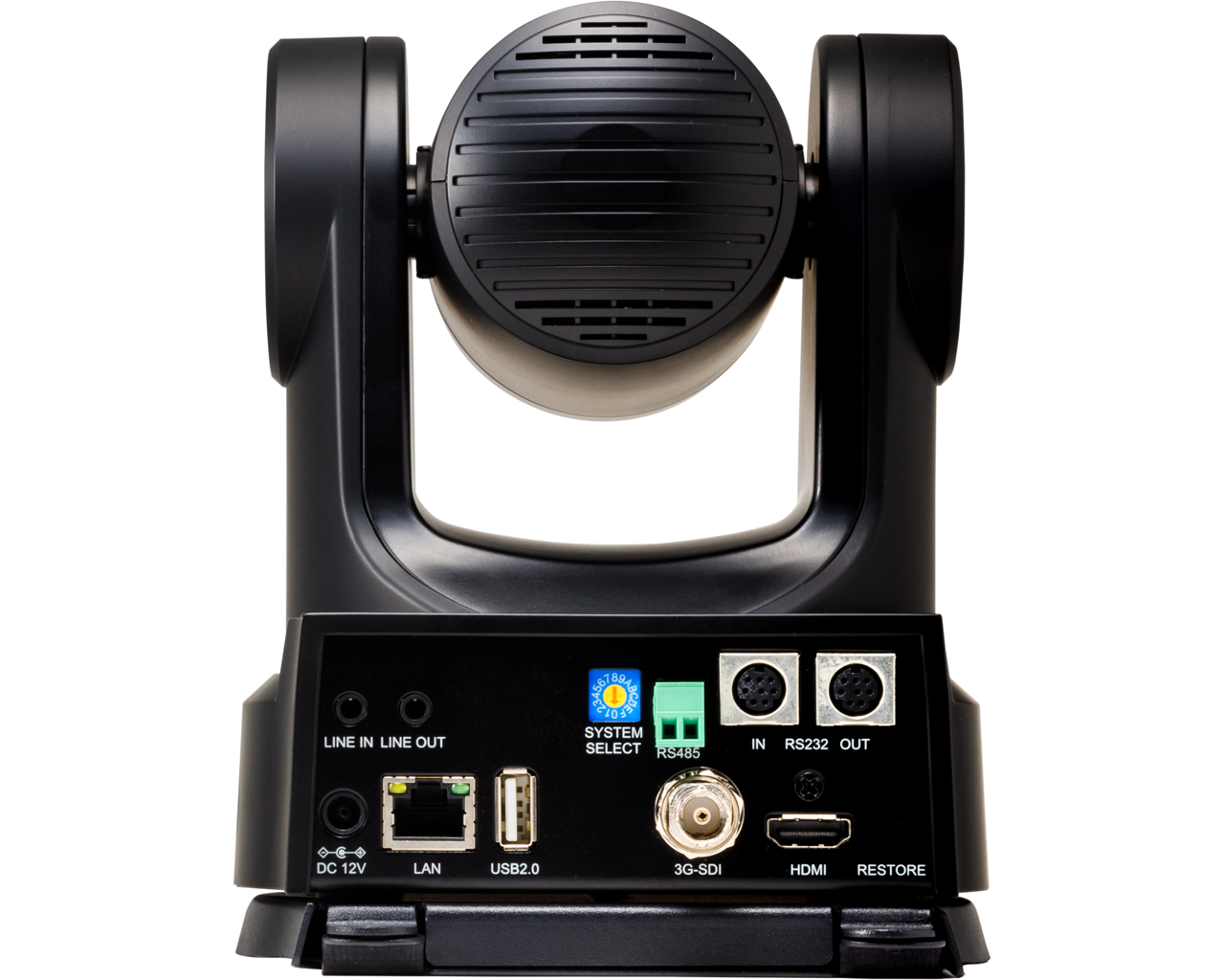

| Other I/O | 1 x Block 2-Pin (RS-485) Input/Output 1 x USB-A Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) |
| Built-In Speaker | No |
| Power | |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 30 to 80% |
| General | |
| OS Compatibility |
Windows 10
macOS 10.12.6 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A |
| Dimensions (W x H x D) | 5.6 x 6.5 x 6.7" / 14.2 x 16.5 x 17 cm |
| Weight | 3.7 lb / 1.7 kg |
| Packaging Info | |
| Package Weight | 6.49 lb |
| Box Dimensions (LxWxH) | 11.8 x 9.6 x 9.6" |
What's in the box
- JVC KY-PZ200N HD NDI|HX PTZ Remote Camera with 20x Optical Zoom (Black)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Ceiling Bracket
- Limited 1-Year Manufacturer Warranty
