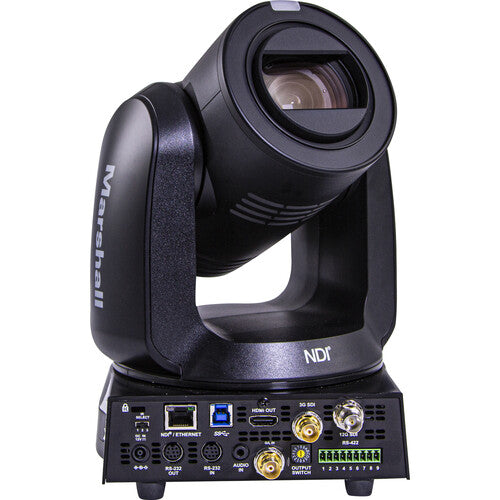

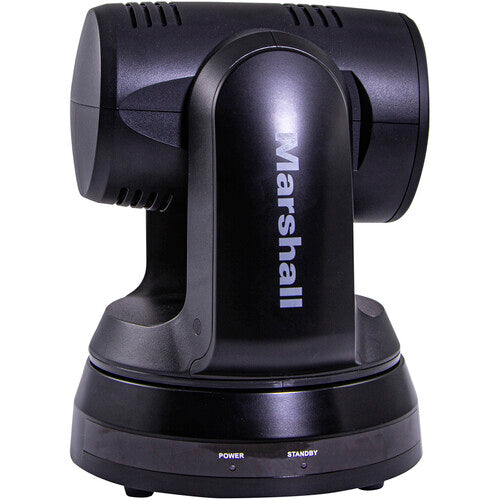

PTElevate your production with the CV730-BHN NDI/SDI/HDMI/IP PTZ Camera. With a 30x optical zoom lens, 12x digital zoom, and 9.2MP sensor, this camera captures stunning UHD 4K video at 59.94 fps. Use it in meeting rooms, events, or houses of worship for professional-level streaming, with simultaneous outputs in USB-B, 12G-SDI, HDMI, and IP.
Features
- Up to UHD 4K 59.94 fps Capture & Output
- USB-B, 12G-SDI & HDMI Outputs
- NDI, NDI|HX2/HX3, IP/HEVC & SRT Output
- 30x Optical Zoom, 12x Digital Zoom
- Built-In Tally Light, Audio Input
- Power Supply & PoE++ Support
- IP, Remote & RS-232/-422 Control Options
Specifications
| Image Sensor |
1/1.8"-Type CMOS |
| Sensor Resolution |
Effective: 9.2 Megapixel |
| Shutter Speed |
1/10000 to 1 Second |
| Optical Zoom Ratio |
30x |
| External Recording Modes |
SDI/BNC / HDMI / RJ45 |
|
3840 x 2160 at 25/29.97/50/59.94 fps |
|
1920 x 1080p at 25/29.97/50/59.94 fps |
|
1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC |
| IP Streaming |
H.264, H.265, MPEG-TS, NDI, NDI|HX, NDI|HX2, NDI|HX3, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP |
|
3840 x 2160 at 25p, 29.97p, 50p, 59.94p |
|
1920 x 1080 at 25p, 29.97p, 50p, 59.94p |
|
1280 x 720 at 25p, 30p, 50p, 59.94p |
| Supported Control Protocols |
Pelco-D |
|
RS-232 |
|
RS-422 |
|
VISCA |
| PoE Support |
PoE++ 802.3bt |
| Power Consumption |
Device: 39 W |
|
PoE: 40 W |
|
Device: 39 W |
| Mounting |
1x 1/4"-20 Female |
|
4x M3 Female for Bracket/Ceiling |
| Exposure Control |
|
| Presets |
ATW, Auto, Indoors, Manual, One Push, Outdoors, Sodium |
| Range |
3000 to 8000K |
| Lens Focal Length |
6.5 to 202mm |
| Field of View |
Horizontal: 65° |
| Pan/Tilt |
Pan: 340° at 5 to 300°/s |
|
Tilt: 120° |

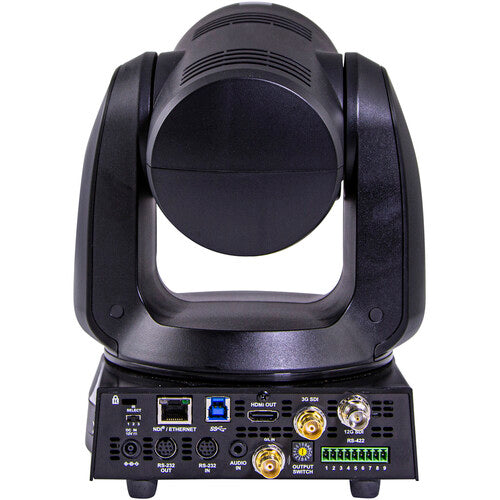

| Interface |
|
| - Video I/O |
1x BNC (12G-SDI) Output |
|
1x BNC (3G-SDI) Output |
|
1x HDMI 2.0 Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input |
|
1x Mini-DIN 8-Pin (RS-232) Control Output |
|
1x Block 9-Pin (RS-422) Control |
|
1x USB-B (USB 3.0) Control (Shared with Video Output) |
|
1x RJ45 (LAN, NDI) Control (Shared with Power Input, Video Output) |
|
1x BNC (Genlock) Input |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
Kensington Lock Slot |
| Weight |
6.6 lb / 3 kg (Body Only) |
What's in the box
- Marshall Electronics CV730-BHN NDI/SDI/HDMI/IP PTZ Camera with 30x Optical Zoom (Black)
- 12V Power Adapter
- Power Cord
- Remote Control
- RS-422 Connector Block
- Metal Installation Plate A
- Metal Installation Plate B
- Set of M3 Screws
- Limited 1-Year Manufacturer Warranty
