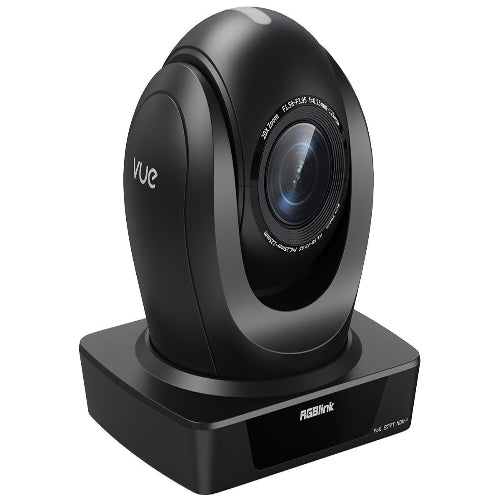

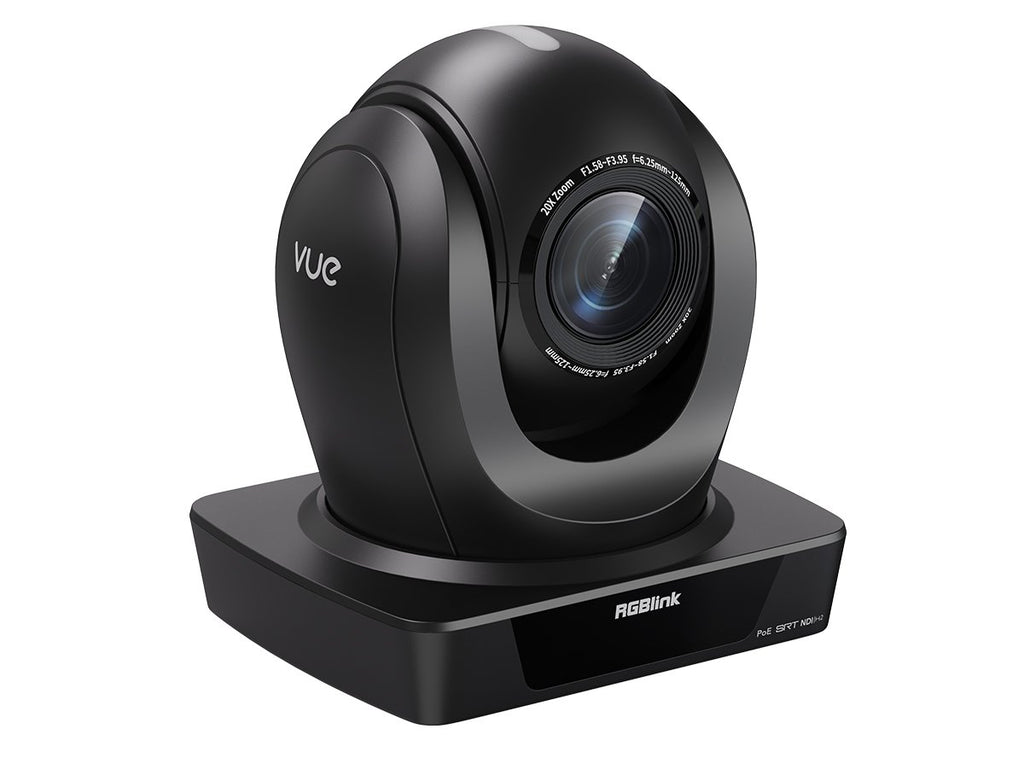

Experience exceptional video quality with the RGBLink PTZ 4K camera, featuring a premium Panasonic sensor and 20x optical zoom lens for detailed, sharp imagery. Advanced AI tracking ensures precise subject following, while versatile connectivity options—3G-SDI, HDMI, and USB3 output—support diverse production setups. Equipped with Tally lights and powered via POE+, this camera delivers seamless integration and reliable operation for professional environments.
Features
-
Stable AI Tracking
-
Resolution up to 3840x2160@60
-
High performance in low light scenarios with Wide Dynamic Range
- H.265/H.264 Dual Stream Output Adapted to Different Network Environments
- 12G-SDI | HDMI2.0 | USB Type-C Multiple Output
-
Pan and Tilt Control
-
Built-in Dual Microphones
-
NDI|HX2 output optional
-
Support TALLY
-
Support PoE+
-
Low-power Sleep Function
-
Wide Application
Specifications
| Image Sensor |
CMOS |
| Sensor Resolution |
- |
| Shutter Speed |
- |
| Optical Zoom Ratio |
20X |
| External Recording Modes |
- |
| Broadcast Output |
SDI (12G-SDI) (1 × BNC) ; HDMI 2.0 ; USB Type-C (UVC 1.5) |
| IP Streaming |
- |
| Supported Control Protocols |
- |
| PoE Support |
- |
| Power Consumption |
- |
| Mounting |
- |
| Exposure Control |
|
| Presets |
- |
| Range |
- |
| Lens Focal Length |
|
| Field of View |
Horizontal: 60° ~ 3.5° |
|
Vertical: 36° ~ 2.0° |
| Maximum Aperture |
F1.58 ~ F3.95 |
| Pan/Tilt |
Pan: –170° to +170° |
|
Tilt: –90° to +210° |

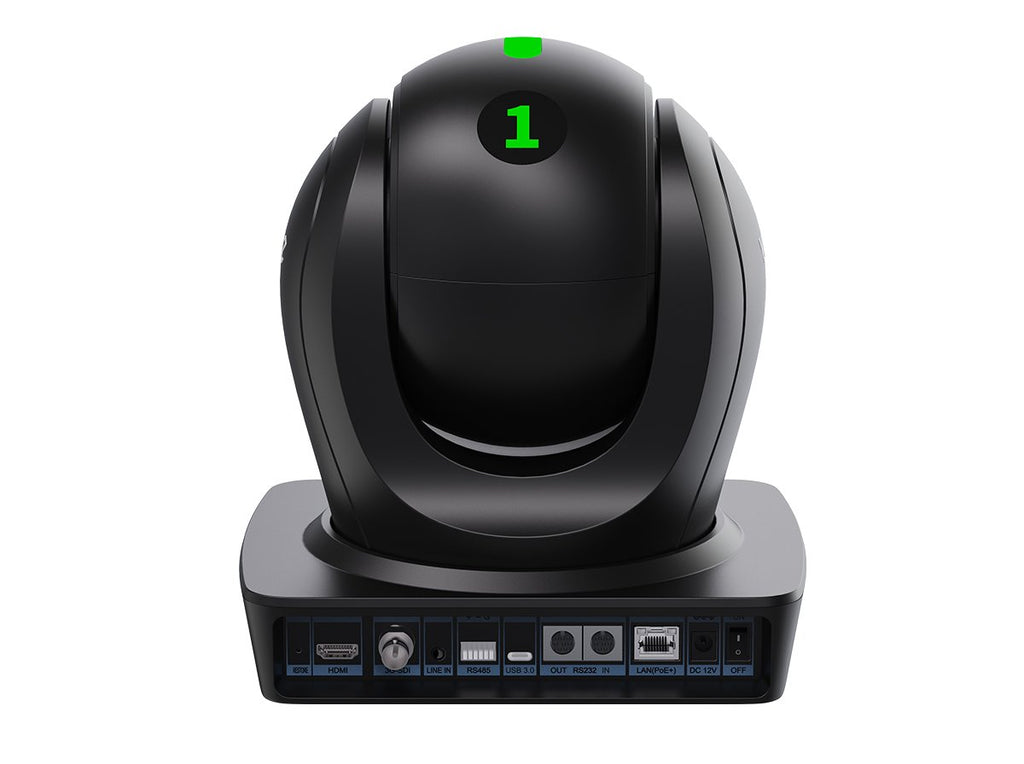

| Interface |
|
| - Video I/O |
SDI: 1xBNC |
|
HDMI: 1xHDMI 2.0 |
|
USB: 1xUSB Type-C |
|
LAN(PoE+): 1xRJ45 |
| -Audio I/O |
IN: 1x3.5mm TRS Stereo Jack |
|
Built-in: Dual Microphones |
| -Other I/O |
- |
| Built-In Microphone |
Yes |
| Built-In Speaker |
- |
| Impact Resistance |
- |
| Environmental Resistance |
Operating temperature: 0 °C to 40 °C |
|
Humidity: 20% to 80% RH |
| Security Lock Support |
- |
| Weight |
2.14kg |
What's in the box
- RGBLink PTZ 4K Panasonic Sensor
- IR Remote
- Power Supply
- Limited 1-Year Manufacturer Warranty
