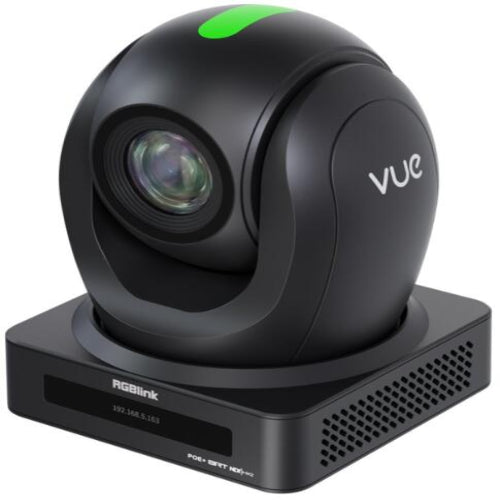

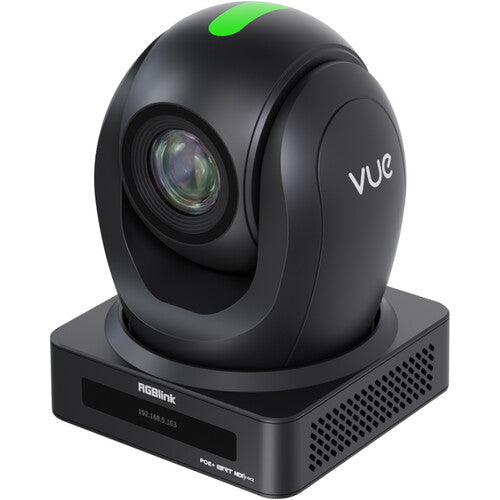

Add advanced real-time AI tracking to your production setup with the RGBLink PTZ 4K Camera featuring a Panasonic sensor. This sophisticated camera delivers sharp UHD 4K60 video through 3G-SDI, HDMI, and USB3 outputs, while its powerful 20x optical zoom and intelligent autofocus ensure precise framing. Equipped with NDI/HX2 for seamless IP streaming, RTMP Push, VISCA control, tally signals, and PoE+ power, it offers flexible integration and professional-grade performance for dynamic live events and broadcasts.
Features
- Low-Noise 1/2.8" 8.42MP CMOS Sensor
- 20x Optical Zoom, Advanced Autofocus
- HDMI/RTSP Output up to UHD 4K60
- HDMI, SDI, LAN, and USB Connectivity
- AI Tracking
- 2D/3D Noise Reduction for High SNR
- VISCA/Pelco-D/P with Auto Detection
- 360° Visible Tally Indicator
- 255 Presets, 10 Presets via Remote
- RTMP Push and VISCA Control
Specifications
| Image Sensor |
1/2.8"-Type CMOS |
| Sensor Resolution |
Effective: 8.42 Megapixel |
| Shutter Speed |
- |
| Optical Zoom Ratio |
- |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
3840 x 2160 up to 60p |
| Supported Control Protocols |
Camera Control Protocol |
|
IR/VISCA/RS-232/Pelco-D/RS-485/ONVIF/Pelco-P |
| PoE Support |
PoE Proprietary |
| Power Consumption |
18 W |
| Mounting |
- |
| Exposure Control |
|
| Presets |
|
| Range |
|
| Lens Focal Length |
4.8 to 96mm |
| Field of View |
- |
|
|
| Maximum Aperture |
f/1.8 to 2.9 |
| Pan/Tilt |
Pan: 170° (-170 to 170°) at 0.1 to 60°/s |
|
Tilt: 120° (-30 to 90°) at 0.1 to 30°/s |

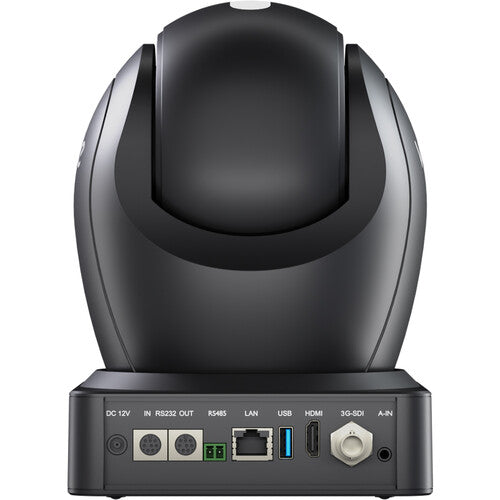

| Interface |
|
| - Video I/O |
1x HDMI Output |
|
1x BNC (3G-SDI) Output |
|
1x RJ45 LAN Input/Output |
|
1x USB-A 3.0 / 3.1/3.2 Gen 1 Output |
| -Audio I/O |
3.5 mm TRS Stereo Mic/Line Input on Camera Body |
| -Other I/O |
1x Block 2-Pin (RS-485) Control |
|
1x 9-Pin (RS-232) Input |
|
1x 9-Pin (RS-232) Output |
| Built-In Microphone |
Yes |
| Built-In Speaker |
- |
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
1.9 kg (Body Only) |
What's in the box
- RGBlink vue UHD 4K PTZ Camera with AI Dynamic Tracking & 20x Optical Zoom
- IR Remote
- Power Supply
- Limited 1-Year Manufacturer Warranty
