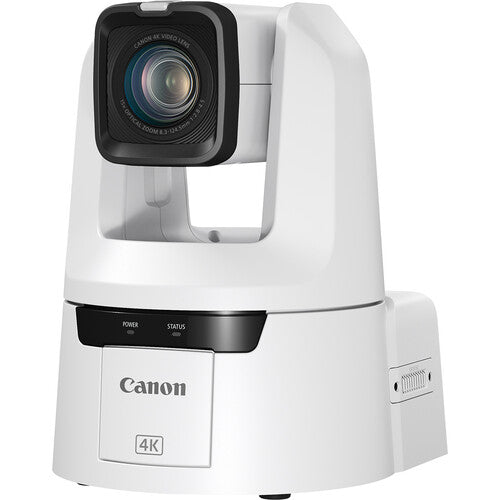

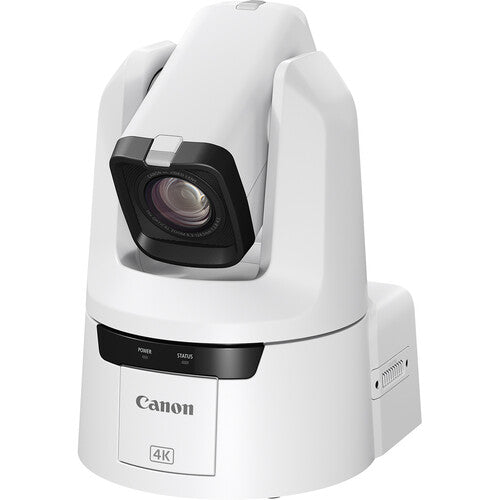

Capture exceptional 4K imaging in a PTZ form using the titanium white CR-N700 4K PTZ Camera from Canon. Ideal for high-end broadcast, TV studio, and live event use, the compact CR-N700 supports up to UHD 4K60p 4:2:2 10-bit HDR video. The CR-N700 shares several features with high-resolution, cine-style Canon cameras like a 1" type CMOS sensor, a Canon DIG!C DV7 image processor, Dual Pixel CMOS AF with EOS iTR AF X (autofocus), and a 15x optical/20x digital zoom with a 30x Advanced Zoom in HD.
Features
- Up to UHD 4K60 Video, HDR Imagery
- 1" CMOS Sensor, DIG!C DV7 Processor
- 15x Optical & 20x Digital Zoom
- Dual-Pixel CMOS AF with EOS iTR AF X
- HDMI, 12G/3G-SDI & IP Video Output
- XC, RTSP/RTP, NDI|HX, RTMP/RTMPS
- Built-In ND Filters: 1/4, 1/16, 1/64
- VISCA, Serial, FreeD, SRT Control
- Genlock, Dual XLR & 3.5mm Audio Input
- Optical Image Stabilization (OIS)
Specifications
| Sensor Resolution |
Actual: 13.4 Megapixel
Effective: 8.29 Megapixel
|
| Shutter Speed |
|
| Max Digital Zoom |
30x ( in 1080p) |
| Built-In ND Filter |
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Optical Zoom Ratio |
15x |
| Focal Length |
8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
|
| Field of View |
Horizontal: 73 to 5.7°
Vertical: 45.2 to 3.2°
|
| Maximum Aperture |
f/2.8 to 4.5 |
| Focus Control |
Autofocus
Manual Focus |
| Embedded Audio |
HDMI/SDI |
| Presets |
100 |
| Move Speed |
Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec
|
| Movement Range |
Pan: 34° (-170 to 170°)
Tilt: 120° (-30 to 90°)
|
| Supported Control Protocols |
IP
NDI
VISCA |
| PoE Support |
PoE++ 802.3bt |
What's in the box
- Canon CR-N700 4K PTZ Camera with 15x Zoom (Titanium White)
- Ceiling Plate
- Ceiling Plate Screw
- Safety Cable
- Camera-to-Mount Safety Cable
- IR Remote Control
- Battery for Remote Control
- Limited 1-Year Manufacturer Warranty
