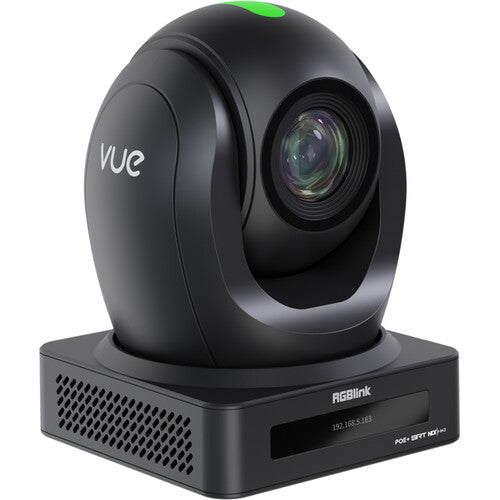

Elevate your production setup with the RGBLink PTZ 4K Camera featuring a high-performance Panasonic sensor and AI dynamic tracking. This sophisticated camera offers 20x optical zoom with advanced autofocus, ensuring crisp, detailed imagery. Supporting UHD 4K60 output via HDMI, 3G-SDI, USB3, and NDI/HX2, it delivers versatile connectivity, including PoE+ power and comprehensive control through RS-232 and RS-485 interfaces. Real-time resolution and IP data are conveniently displayed on the front OLED screen, while a 360° tally indicator provides clear selection status. Ideal for precise, professional-grade video tracking and streaming applications.
Features
- Low-Noise 1/2.8" 8.42MP CMOS Sensor
- 20x Optical Zoom, Advanced Autofocus
- HDMI/RTSP Output up to UHD 4K60
- HDMI, SDI, LAN, and USB Connectivity
- AI Tracking
- 2D/3D Noise Reduction for High SNR
- VISCA/Pelco-D/P with Auto Detection

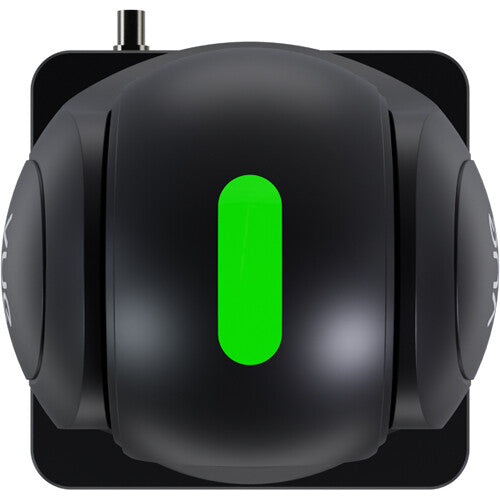

- 360° Visible Tally Indicator
- 255 Presets, 10 Presets via Remote
- RTMP Push and VISCA Control
Specifications
| Image Sensor |
1/2.8"-Type CMOS |
| Sensor Resolution |
Effective: 8.42 Megapixel |
| Optical Zoom Ratio |
- |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
3840 x 2160 up to 60p |
| Supported Control Protocols |
IR |
|
ONVIF |
|
Pelco-D |
|
Pelco-P |
|
RS-232 |
|
RS-485 |
|
VISCA |
| PoE Support |
PoE Proprietary |
| Power Consumption |
18 W |
| Mounting |
- |
| Exposure Control |
|
| Presets |
- |
| Range |
- |
| Lens Focal Length |
- |
| Field of View |
Horizontal: 60.04 to 3.81° |
| Maximum Aperture |
f/1.8 to 2.9 |
| Minimum Focus Distance |
- |
| Pan/Tilt |
Pan: 170° (-170 to 170°) at 0.1 to 60°/s |
|
Tilt: 120° (-30 to 90°) at 0.1 to 30°/s |

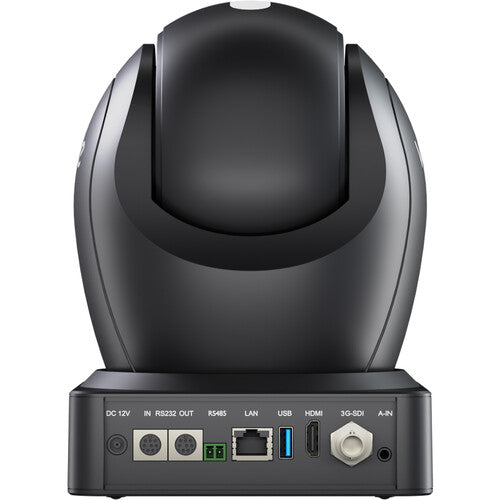

| Interface |
|
| - Video I/O |
1 x HDMI (Unspecified Signal) Output |
|
1 x BNC (3G-SDI) Output |
|
1 x RJ45 LAN Input/Output |
|
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Output |
| -Audio I/O |
3.5 mm TRS Stereo Mic/Line Input on Camera Body |
| -Other I/O |
1x Block 2-Pin (RS-485) Control |
|
1x 9-Pin (RS-232) Input |
|
1x 9-Pin (RS-232) Output |
| Built-In Microphone |
Yes |
| Built-In Speaker |
- |
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
1.9 kg (Body Only) |
What's in the box
- RGBlink vue UHD 4K PTZ Camera with AI Dynamic Tracking & 20x Optical Zoom
- IR Remote
- Power Supply
- Limited 1-Year Manufacturer Warranty
