Description
This black KY-PZ100 Robotic PTZ Network Video Production Camera from JVC can be used as a single camera or part of a multi-camera shoot. It features a 1/2.8" sensor and captures 1080i/p and 720p footage to a microSDHC/SDXC card slot (microSD card not included). The PTZ camera features 3G-SDI and HDMI outputs and can simultaneously output video while streaming over its Ethernet port or an optional USB Wi-Fi adapter or LTE modem.
Features
- 1/2.8" HD CMOS Sensor, 20x Optical Zoom
- Resolution Capture up to 1920 x 1080p60
- HDMI/3G-SDI/USB Video Output, PoE Power
- 255 Presets, 3.5mm Stereo Audio In/Out
- RS-232/RS-485 Serial Control, Cascading
- Supports H.264/H.265/MJPEG Compression
- Supports RTSP, RTMP, SRT, HTTP Protocols
- Embedded AAC and G712 Audio Encoding
- VITC and NTP Sync Support
- Camera Comes in Black Color
Specification
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| IR Cut Filter | No |
| Built-In ND Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/30 Second |
| Minimum Illumination | 0.5 Lux |
| Focal Length | 4.4 to 88.5mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 8x |
| Field of View | Horizontal: 60.7 to 3.36° Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.8 to 2.8 |
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTSP 1920 x 1080 at 25p, 29.97p, 50p, 59.94p 1280 x 720 at 25p, 29.97p, 50p, 59.94p 1024 x 576 at 25p, 29.97p, 50p, 59.94p 720 x 480 at 25p, 29.97p, 50p, 59.94p 720 x 408 at 25p, 29.97p, 50p, 59.94p 640 x 480 at 25p, 29.97p, 50p, 59.94p 640 x 360 at 25p, 29.97p, 50p, 59.94p 480 x 320 at 25p, 29.97p, 50p, 59.94p 320 x 240 at 25p, 29.97p, 50p, 59.94p |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P RS-232 RS-422 RS-485 |
| Max Cable Length | 3937' / 1200 m (RS-485) 98.4' / 30 m (RS-232) |

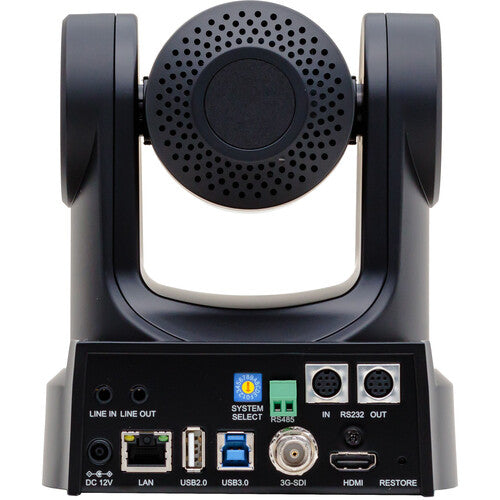

| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output 1 x RJ45 Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input 1 x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1 x Block 2-Pin (RS-485) Input/Output 1 x USB-A Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) |
| Built-In Speaker | No |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 60°C |
| Operating Humidity | 30 to 80% |
| OS Compatibility |
Windows 10
macOS 10.12.6 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A |
| Dimensions (W x H x D) | 5.6 x 6.5 x 6.7" / 14.2 x 16.5 x 17 cm |
| Weight | 3.7 lb / 1.7 kg |
What's in the box
- JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (Black)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Ceiling Bracket
- Limited 1-Year Manufacturer Warranty
