Description

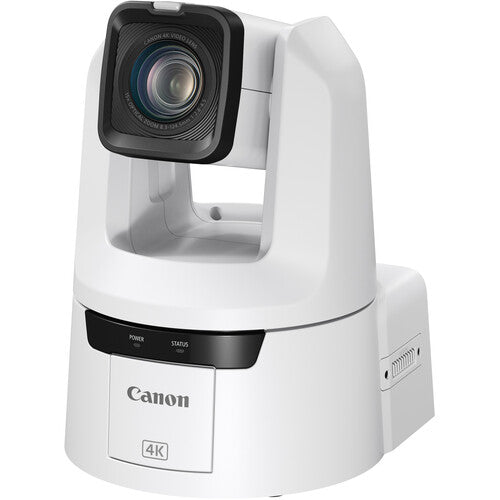

If you're working on a field or studio production with high-end cameras that can benefit from remotely controlled cameras with minimal operating crew, and you need more accurate camera-matching than a traditional PTZ camera, the titanium white CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom from Canon will fit right into your documentary shoot, event, streaming broadcast, reality show, or digital film production. The CR-N500 is designed to fit right into an existing multi-camera shoot, matching the color depth and visual look with its professional sensor and features so that post production camera matching and color correction is made easy.
Features
- 1" CMOS Sensor with Dual-Pixel AF
- Capture up to UHD 4K30 / 1080p60 Video
- HDMI, 3G-SDI & IP Video Output
- Built-In NDI|HX Support, 15x Zoom, PoE+
- Built-In ND Filters: 1/4, 1/16, 1/64
- Genlock, Dual XLR & 3.5 Audio Input
- Canon DIG!C DV6 Processor, 1.5 Lux
- IP, RS-422, IR, and Wi-Fi Control
- Works with Canon Control Software
- Compatible with Canon PTZ Controller
Specifications
| Image Sensor | 1"-Type CMOS |
| Sensor Resolution |
Actual: 13.4 Megapixel
Effective: 8.29 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Image Stabilization |
Optical in Integrated Lens
|
| Focus Control | Autofocus Manual Focus |
| Shutter Speed |
1/2000 to 1/3 Second
|
| Gain | 6 to 33 dB |
| Minimum Illumination |
1.5 Lux at 1/30 Shutter Speed
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2000 to 15,000K
Presets: Set B, Manual, Set A, AWB |
| Focal Length |
8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
|
| Optical Zoom Ratio | 15x |
| Max Digital Zoom | 20x |
| Field of View |
Horizontal: 73 to 5.7°
Vertical: 45.2 to 3.2° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance |
Wide: 0.4" / 1.0 cm
Telephoto: 23.6" / 60.0 cm |
| External Recording Modes |
4:2:0 8-Bit via RJ45
3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Embedded Audio | SDI |
| Broadcast Output | NTSC/PAL |
| Gamma Curve |
Canon Log 3, Rec709, Standard, Wide DR
|
| IP Streaming |
H.264, H.265, NDI|HX, RTMP, RTP, RTSP
3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p |
| IP Multi-Stream Support |
Simultaneous
H.264: UHD 4K, 1080p, 720p, 360p |
| Control | |
| Presets |
100 via IP, VISCA
|
| Move Speed |
Pan: 0.1 to 100°/sec
Tilt: 0.21 to 100°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 130° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | Canon XC IR RS-422 VISCA |

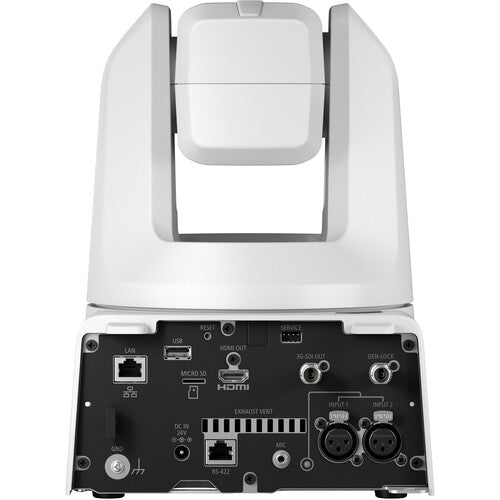

| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x RJ45 (NDI) Output |
| Audio I/O |
2x XLR 3-Pin Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Other I/O |
1x RJ45 (RS-422, VISCA) Input
1x USB-A Input 1x BNC (Genlock) Input/Output |
| PoE Support | PoE+ 802.3at |
| Power I/O |
1x Barrel (24VDC) Input
|
| Power Consumption |
PoE: 19.6 W
Power Supply: 24 VDC 18.6 W |
| Operating Conditions |
0 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
0 to 40°C at 10 to 90% Humidity
|
| OS Compatibility |
Computer: macOS 11 or Later / Windows 10 or Later
Mobile: Android/iOS |
| OS Compatibility |
macOS 11
Windows 10 (64-Bit Only) |
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup |
| Dimensions (W x H x D) |
19.99 x 26.9 x 20.8 cm (Without Protrusions)
|
| Weight |
4.1 kg (Body Only)
|
What's in the box
- Canon CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom (Titanium White)
- IR Remote Control
- Remote Battery
- Safety Wire
- Safety Wire with Screw
- Ceiling Plate
- AC Adapter
- Power Cable
- Limited 3-Year Manufacturer Warranty
