Elevate your video production with the Marshall CV730 UHD 4K60 IP PTZ Camera. Featuring a 30x optical zoom, 8.5MP sensor, and simultaneous 12G-SDI, HDMI, and IP outputs, this camera is perfect for capturing high-quality footage in any setting. With a built-in tally lamp and elegant black design, it's an essential tool for any professional production.
Features
- Up to UHD 4K/59.94 Capture and Output
- Simultaneous 12G-SDI, HDMI & IP Outputs
- 30x Optical Zoom
- Built-In Tally Light
- PoE++
- RS-232 and RS-422 Control for 7 Cameras
Specifications
| Image Sensor |
1/1.8"-Type CMOS |
| Sensor Resolution |
Effective: 8.5 Megapixel |
| Shutter Speed |
1/10000 to 1 Second |
| Optical Zoom Ratio |
30x |
| External Recording Modes |
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC |
| IP Streaming |
H.264, H.265, MPEG-TS, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP
3840 x 2160 (2.0 to 20.00 Mb/s)
1920 x 1080 (2.0 to 20.00 Mb/s)
1280 x 720 (2.0 to 20.00 Mb/s)
640 x 360 (0.5 to 5.0 Mb/s) |
| Supported Control Protocols |
IR
Pelco-D
RS-232
RS-422
VISCA |
| PoE Support |
PoE++ 802.3bt |
| Power Consumption |
PoE: 23.5 W
DC In: 23 W |
| Mounting |
1x 1/4"-20 Female
7x M3 Female |
| Exposure Control |
|
| Presets |
ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Range |
1700 to 10,000K |
| Lens Focal Length |
6.5 to 202mm |
| Field of View |
63~3.3° |
| Maximum Aperture |
1.5m (Tele/Wide) |
| Pan/Tilt |
Pan: 340° at 5 to 300°/s
Tilt: 120° |

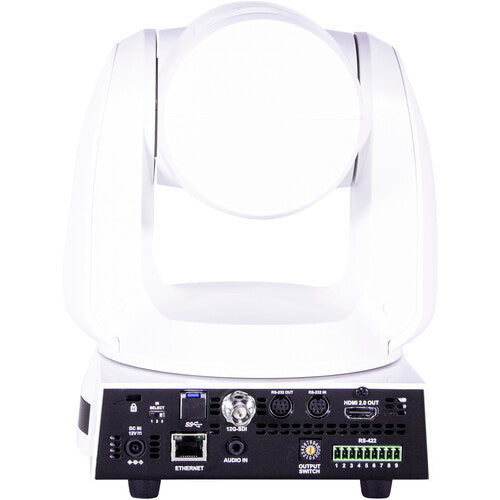

| Interface |
|
| - Video I/O |
1x BNC (12G-SDI) Output
1x HDMI 2.0 Output
1x RJ45 LAN Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output
1x Block 9-Pin (RS-422) Control
1x USB-B (USB 3.0) |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
- |
| Weight |
3 Kg |
What's In The Box
- Marshall Electronics CV730 UHD 4K60 IP PTZ Camera with 30x Optical Zoom (White)
- 12V Power Adapter
- Power Cord
- Remote Control
- RS-422 Connector Block
- Metal Installation Plate A
- Metal Installation Plate B
- Set of M3 Screw
- Limited 1-Year Warranty
