Description
JVC’s new economic HD robotic pan, tilt and zoom video production camera, the KY-PZ200 offers SRT and supports POE for a true 'one cable solution'. Ideal for studio or field use, the PTZ camera enables reliable remote IP production for education, corporate, live events and sport applications.
Features
- 1/2.8" HD CMOS Sensor, 20x Optical Zoom
- Resolution Capture up to 1920 x 1080p60
- HDMI/3G-SDI/USB Video Output, PoE Power
- 255 Presets, 3.5mm Stereo Audio In/Out
- RS-232/RS-485 Serial Control, Cascading
- Supports H.264/H.265/MJPEG Compression
- Supports RTSP, RTMP, SRT, HTTP Protocols
- Embedded AAC and G712 Audio Encoding
- VITC and NTP Sync Support
- Camera Comes in White Color
Specifications
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| IR Cut Filter | No |
| Built-In ND Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed |
1/10000 to 1/30 Second
|
| Minimum Illumination | 0.5 Lux |
| White Balance |
Presets: One Push, Indoors, Outdoors, Manual, Auto
|
| Focal Length | 4.4 to 88.5mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 8x |
| Field of View |
Horizontal: 60.7 to 3.36°
Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.8 to 2.8 |
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/50/59.94 fps |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC |
| IP Streaming |
H.264, H.265, MJPEG, RTMP, RTSP
1920 x 1080 at 25p, 29.97p, 50p, 59.94p 1280 x 720 at 25p, 29.97p, 50p, 59.94p 1024 x 576 at 25p, 29.97p, 50p, 59.94p 720 x 480 at 25p, 29.97p, 50p, 59.94p 720 x 408 at 25p, 29.97p, 50p, 59.94p 640 x 480 at 25p, 29.97p, 50p, 59.94p 640 x 360 at 25p, 29.97p, 50p, 59.94p 480 x 320 at 25p, 29.97p, 50p, 59.94p 320 x 240 at 25p, 29.97p, 50p, 59.94p |
| Presets | 255 |
| Move Speed |
Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 RS-485 |
| Max Cable Length |
3937' / 1200 m (RS-485)
98.4' / 30 m (RS-232) |

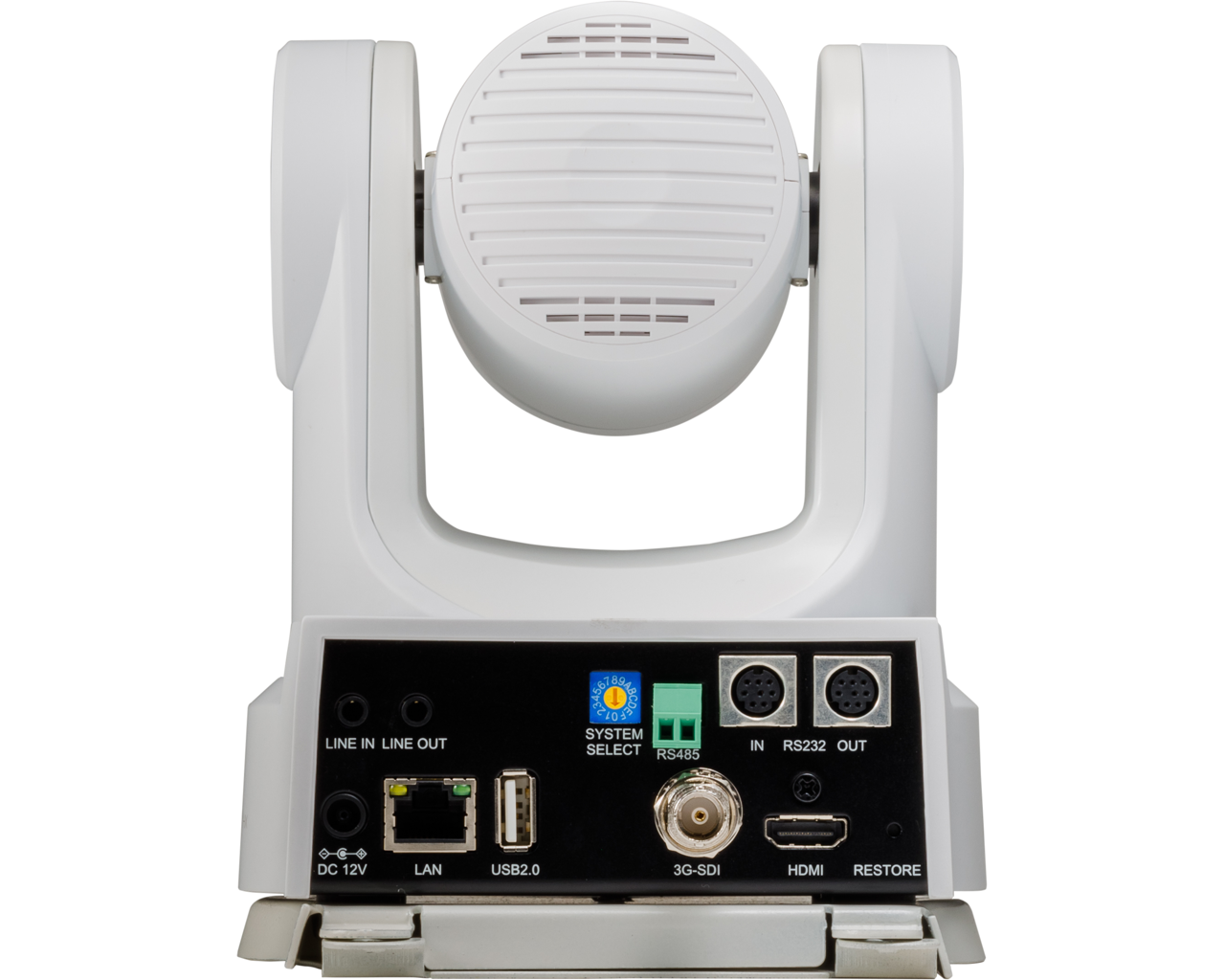

| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 1.4 Output 1x RJ45 Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O |
1x Block 2-Pin (RS-485) Input/Output
1x USB-A Input 1x Mini-DIN 8-Pin (RS-232) Input 1x Mini-DIN 8-Pin (RS-232) Output |
| Built-In Speaker | No |
| PoE Support | PoE 802.3af |
| Power I/O |
1x Barrel (12VDC at 1.5 A) Input
|
| Power Consumption |
Device: 12 VDC 12 W
|
| Certifications |
FCC Part 15 Class A
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 30 to 80% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| OS Compatibility | Windows 10 macOS 10.12.6 |
| Mobile App Compatible | No |
| Dimensions (W x H x D) |
14.2 x 16.5 x 17 cm
|
| Weight |
1.7 kg (Body Only)
|
What's in the box
- JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (White)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Ceiling Bracket
- Limited 1-Year Manufacturer Warranty
