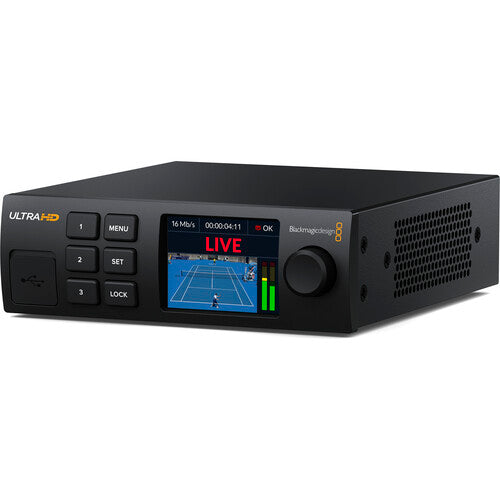

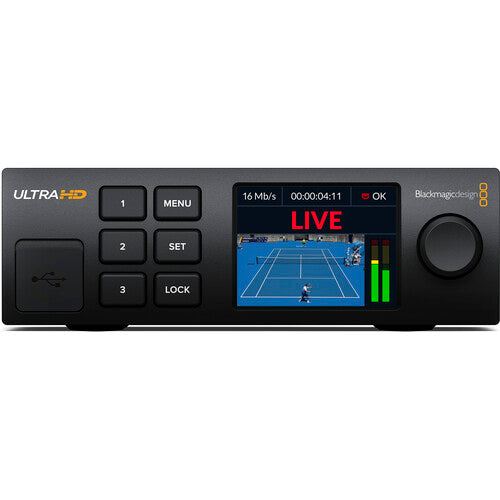

Elevate your streaming experience with the Blackmagic Streaming Encoder 4K. Convert H.264/265 streams to SDI and HDMI video, and utilize built-in streaming capabilities on Blackmagic Design cameras for seamless point-to-point video transmission. Control your stream with USB-C connectivity, and easily connect your devices with the 12G-SDI reference input.
Features
- Decodes H.264 & H.265 to SDI & HDMI
- Camera Control, Talkback & Tally Support
- USB-C Ports for Phone Tethering
- Tethers to 4G & 5G Phones for Streaming
- Blackmagic Streaming Utility Software
Specifications
| IP Video |
H.264/H.265: |
|
4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding |
| IP Audio |
- |
| Transport Protocols |
RTMP, SRT |
| Simultaneous Streams |
- |
| Wi-Fi |
No |
| Bluetooth |
No |
| Cellular Support |
5G NR / 4G LTE via Unspecified SIM Type |
| Video I/O |
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input |
|
2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output |
|
1x HDMI (HDMI 2.0) Output |
| Audio I/O |
- |
| Other I/O |
1x RJ45 Fast Ethernet Input/Output |
| Video Standard Compliance |
- |
| Embedded Audio |
SDI Input: 16-Channel |
|
SDI Output: 16-Channel |
|
SDI Output: 2-Channel |
|
HDMI Output: 8-Channel |
|
LAN (RJ45)/USB |
|
|
|
|
| Recording Media |
- |
| Power I/O |
1x IEC C14 Input |
|
1x Mini-XLR 4-Pin (12 VDC) Input |
| Power Consumption |
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions |
-4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display |
LCD |
| Dimensions |
6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm |
| Weight |
753 g |
What's in the box
- Blackmagic Design Streaming Decoder 4K
- Welcome Wallet with QR Code for Software Download
- Limited 1-Year Manufacturer Warran
