Description

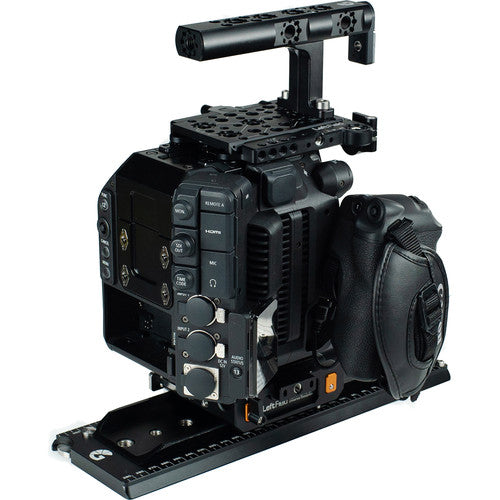

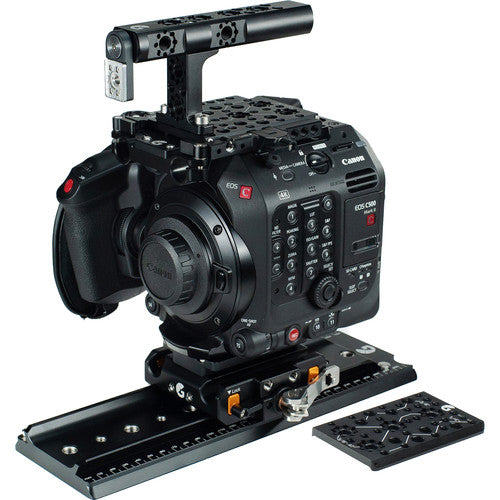

The Canon C500 Mark II Advanced Kit from Bright Tangerine encompasses a baseplate, top plate, top handle, and 11.8" ARRI-standard dovetail plate, along with a monitor bracket adapter for customizable positioning of the LCD monitor. The baseplate includes a camera-specific riser, short ARRI-standard dovetail plate, and 15mm LWS rod mounts on both the front and rear. The top plate attaches directly to the camera and features a sliding dovetail plate, as well as a 15mm LWS bracket. The top handle boasts multiple ARRI Accessory Mounts for added versatility. With the ability to expand this base kit into a full cage with other Left Field components, such as side plates, the Bright Tangerine Left Field Quick Release Baseplate is designed for use with the Canon C500 Mark II, C300 Mark III, C200, and C700 cameras.
Features
- Full-Frame CMOS Sensor, DIG!C DV 7 Chip
- Full-Frame, Super 35, and Super 16 Modes
- DCI 4K/2K, UHD 4K, and HD Modes
- User-Changeable Lens Mounts
- Dual Pixel CMOS AF
- Internal Canon RAW Light Recording
- Internal XF-AVC Recording
- 2 x CFexpress Card Slots, SD Card Slot
- Canon Log 2 and Log 3 Gamma
- 4-Channel Audio Recording
Specification
| Lens Mount | Canon EF |
| Lens Communication |
Yes, with Autofocus Support
|
| Sensor Resolution |
Actual: 20.8 Megapixel (6062 x 3432)
Effective: 18.69 Megapixel (5952 x 3140) |
| Image Sensor |
Full-Frame CMOS
|
| Image Stabilization | Digital |
| Built-In ND Filter |
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
|
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Type |
Electronic Rolling Shutter
|
| ISO Sensitivity Range |
160 to 25,600 (Extended: 100 to 102,400)
|
| Advertised Dynamic Range | 15 Stops |
| White Balance | 2000 to 15,000K |
| Internal Recording Modes |
Cinema RAW Light 10/12-Bit
5952 x 3140 from 12 to 59.94 fps 4096 x 2160 from 12 to 59.94 fps 3840 x 2160 from 12 to 59.94 fps XF-AVC 4:2:0 8-Bit 2048 x 1080 from 12 to 120 fps [24 to 35 Mb/s] XF-AVC 4:2:2 10-Bit 4096 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 3840 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 2048 x 1080 from 12 to 120 fps [160 to 810 Mb/s] 1920 x 1080p from 12 to 120 fps [160 to 810 Mb/s] |
| Recording Sensor Crop |
Crops to Output Resolution When Recording Raw
|
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve |
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Normal 1, Wide DR
|
| Built-In Microphone | Mono |
| Audio Recording |
4-Channel 24-Bit 48 kHz LPCM Audio
|
| IP Streaming | Yes |
| Aspect Ratio | 16:9 |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O |
1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
2x XLR 3-Pin Mic/Line Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x XLR 4-Pin (11.5 to 20VDC) Input
|
| Other I/O |
1x BNC (Timecode) Input/Output
|
| Wireless | No |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Adapter Required |
| Display Type |
Included External Touchscreen LCD
|
| Display Size | 4.3" |
| Resolution | 2,760,000 Dot |
| Type |
Optional, Not Included
|
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Automatic, Continuous-Servo AF, Manual Focus
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity | 85% |
| Battery Type |
Canon BP-A Series
|
| Power Consumption | ≤63 W |
| Shoe Mount | 1x Cold Shoe |
| Netflix Approved | Yes |
| Dimensions (W x H x D) |
16.8 x 15.2 x 14.7 cm
|
| Weight | 3.9 lb / 1.77 kg |
What's in the box
- Canon EOS C500 Mark II 5.9K Full-Frame Camera Body (EF Mount, No CFexpress Card)
- Canon GR-V1 Camera Grip for EOS C200
- Canon LM-V2 4.3" LCD Monitor
- Canon LA-V2 LCD Attachment Unit
- Handle Unit
- Shoulder Strap
- Battery Charger
- Compact Power Adapter for Battery Charger
- AC Power Cable US for Battery Charger
- Canon BP-A60 Battery Pack for EOS C300 Mark II, C200, and C200B
- Extension Unit Attachment Bracket
- Canon UN-5 Unit Cable for Select Canon EOS Cameras & XC15 (20")
- 1/4" Hex Wrench
- M3 Hex Wrench
- M4 Hex Wrench
- 1/4" Hex Socket Head Bolt
- M3 Hex Socket Head Bolt
- Bolt Stopper
- Limited 1-Year Manufacturer Warranty
