Description

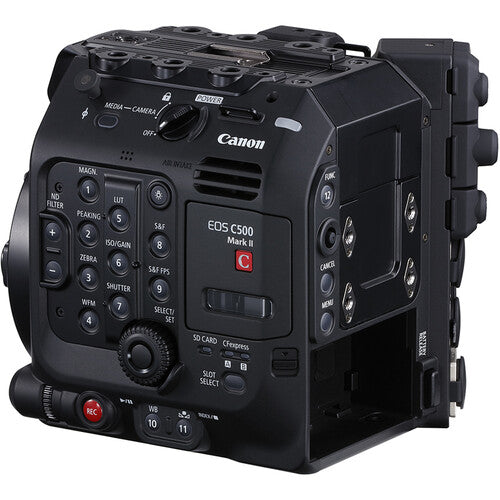

The Canon EOS C500 Mark II Full-Frame Camera Body is a luxurious addition to the Cinema EOS lineup, boasting a Full-Frame CMOS Sensor with an impressive 18.69MP resolution. With its 5.9K output and the ability to crop the sensor for Super 35 and Super 16 frame sizes while maintaining high resolution, this camera is truly a premium choice for professionals.
Features
- Full-Frame CMOS Sensor, DIG!C DV 7 Chip
- Full-Frame, Super 35, and Super 16 Modes
- DCI 4K/2K, UHD 4K, and HD Modes
- User-Changeable Lens Mounts
- Dual Pixel CMOS AF
- Internal Canon RAW Light Recording
- Internal XF-AVC Recording
- 2 x CFexpress Card Slots, SD Card Slot
- Canon Log 2 and Log 3 Gamma
- 4-Channel Audio Recording
Specifications
| Lens Mount | Canon EF |
| Lens Communication |
Yes, with Autofocus Support
|
| Sensor Resolution |
Actual: 20.8 Megapixel (6062 x 3432)
Effective: 18.69 Megapixel (5952 x 3140) |
| Image Sensor |
Full-Frame CMOS
|
| Built-In ND Filter |
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
|
| Internal Filter Holder | No |
| Capture Type |
Stills & Video
|
|
Exposure Control
|
|
| Shutter Type |
Electronic Rolling Shutter
|
| ISO Sensitivity |
160 to 25,600 (Extended: 100 to 102,400)
|
| Advertised Dynamic Range | 15 Stops |
| White Balance |
2000 to 15,000K
|
|
Video Capture
|
|
| Internal Recording Modes |
Cinema RAW Light 10/12-Bit
5952 x 3140 from 12 to 59.94 fps 4096 x 2160 from 12 to 59.94 fps 3840 x 2160 from 12 to 59.94 fps XF-AVC 4:2:2 10-Bit 4096 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 3840 x 2160 from 12 to 59.94 fps [160 to 810 Mb/s] 2048 x 1080 from 12 to 120 fps [160 to 810 Mb/s] 1920 x 1080p from 12 to 120 fps [160 to 810 Mb/s] XF-AVC 4:2:0 8-Bit 2048 x 1080 from 12 to 120 fps [24 to 35 Mb/s] |
| Sensor Crop Modes |
Super35 / APS-C
Super16 |
| Sensor Crop While Recording |
5K (5952 x 3140) in 17:9 When Recording in Raw
4K (4096 x 2160) in 17:9 When Recording in Raw 2K (2048 x 1080) in 17:9 When Recording in Raw |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve |
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Normal 1, Wide DR
|
| Built-In Microphone Type | Mono |
| Audio Recording |
4-Channel 24-Bit 48 kHz LPCM Audio
|
| IP Streaming | Yes |
|
Still Image Capture
|
|
| Aspect Ratio | 16:9 |
| Interface | |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
Single Slot: SD/SDHC/SDXC (UHS-II) |

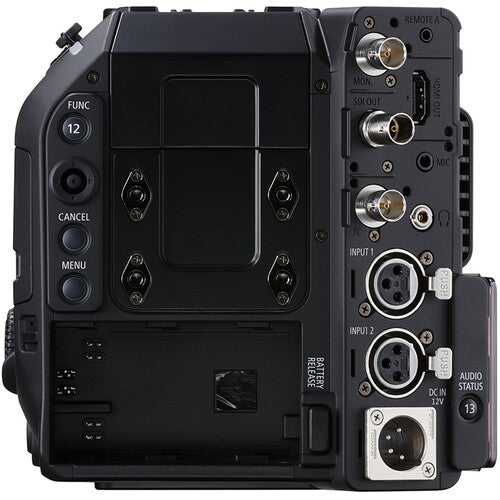

| Video I/O |
1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O |
1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input
2 x XLR 3-Pin Mic/Line Input 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1 x XLR 4-Pin (11.5 to 20VDC) Input
|
| Other I/O |
1 x BNC (Timecode) Input/Output
|
| Wireless | None |
| Mobile App Compatible |
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
|
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Adapter Required |
| Monitor | |
| Size | 4.3″ |
| Resolution |
2,760,000 Dot
|
| Display Type |
Included External Touchscreen LCD
|
| Viewfinder | |
| Type |
Optional, Not Included
|
| Focus | |
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Automatic, Continuous-Servo AF, Manual Focus
|
| General | |
| Battery Type |
Canon BP-A Series
|
| Power Consumption | ≤63 W |
| Netflix Approved | Yes |
| Dimensions (W x H x D) |
16.8 x 15.2 x 14.7 cm
|
| Weight |
1.77 kg
|
What's in the Box
- Canon EOS C500 Mark II 5.9K Full-Frame Camera Body (EF Mount, No CFexpress Card)
- Canon GR-V1 Camera Grip for EOS C200
- Canon LM-V2 4.3″ LCD Monitor
- Canon LA-V2 LCD Attachment Unit
- Handle Unit
- Shoulder Strap
- Battery Charger
- Compact Power Adapter for Battery Charger
- AC Power Cable US for Battery Charger
- Canon BP-A60 Battery Pack for EOS C300 Mark II, C200, and C200B
- Extension Unit Attachment Bracket
- Canon UN-5 Unit Cable for Select Canon EOS Cameras & XC15 (20″)
- 1/4″ Hex Wrench
- M3 Hex Wrench
- M4 Hex Wrench
- 1/4″ Hex Socket Head Bolt
- M3 Hex Socket Head Bolt
- Bolt Stopper
- Limited 1-Year Warranty
