Description

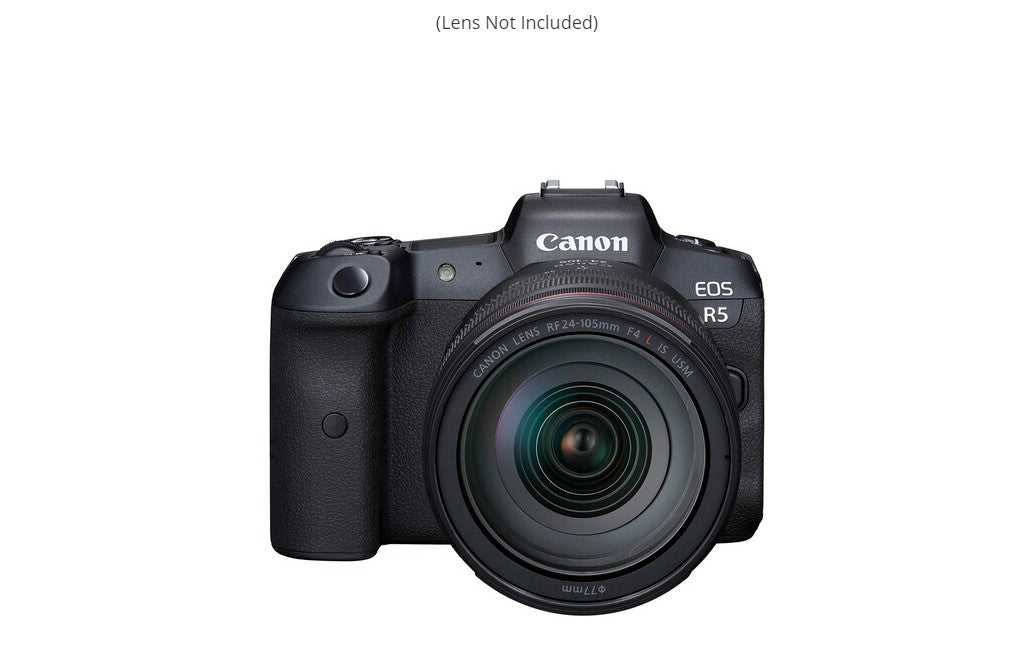

For the professional image-maker who needs resolution, speed, and video capabilities, the Canon EOS R5 full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.
Features
- 45MP Full-Frame CMOS Sensor
- DIGIC X Image Processor
- 8K30 Raw and 4K120 10-Bit Internal Video
- 400MP In-Camera Files with No Software
- Sensor-Shift 5-Axis Image Stabilization
- 12 fps Mech. Shutter, 20 fps E. Shutter
- Dual Pixel CMOS AF II with 1053 Points
- 3.2" Vari-Angle Touchscreen LCD
- Subject Tracking with Deep Learning
- CFexpress & SD UHS-II Memory Card Slots
Specifications
| Lens Mount | Canon RF |
| Sensor Resolution |
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464) |
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS
|
| Sensor Crop (35mm Equivalent) |
Crop Factor: 1x
Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes |
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
Mechanical Shutter
1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 1/2 Second |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity Range |
100 to 51,200 (Extended: 50 to 102,400) Video 100 to 25,600 (Extended: 51,200) |
| Metering Method |
Center-Weighted Average, Evaluative, Partial, Spot
|
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps)
|
| Metering Range | -3 to 20 EV |
| White Balance |
2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting |
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
| Interval Recording | Yes |
| Self-Timer |
2/10-Second Delay
|
| Image Sizes |
3:2 JPEG / Raw
44.7 MP (8192 x 5464) 22.4 MP (5808 x 3872) 11.6 MP (4176 x 2784) 5.9 MP (2976 x 1984) 3.8 MP (2400 x 1600) |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9
|
| Image File Format | JPEG, Raw |
| Bit Depth | 14-Bit |
| Internal Recording Modes |
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s] H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps ProResRAW 10-Bit via HDMI DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps 5088 x 2680 at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve |
Canon Log, Canon Log 3
|
| Recording Limit |
Up to 30 Minutes
|
| IP Streaming | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | AAC Audio LPCM Audio |
| Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1x Micro-HDMI (Unspecified Signal) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1x USB-C (5VDC at 1.5 A) Input
|
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Control Input |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Via Connected Smartphone |
| Display Size | 3.2" |
| Resolution | 2,100,000 Dot |
| Display Type |
Free-Angle Tilting Touchscreen LCD
|
| Secondary Display |
Top: Status Display
|
| Type |
Built-In Electronic (OLED)
|
| Size | 0.5" |
| Resolution | 5,760,000 Dot |
| Eye Point | 23 mm |
| Coverage | 100% |
| Magnification | Approx. 0.76x |
| Diopter Adjustment | -4 to +2 |
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Phase Detection: 1053
|
| Autofocus Sensitivity | -6 to +20 EV |
| Built-In Flash/Light | No |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps)
|
| Dedicated Flash System | eTTL |
| External Flash Connection | PC Terminal |
| Battery Type |
1x LP-E6NH Rechargeable Lithium-Ion
|
| Shoe Mount | 1x Hot Shoe |
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom)
|
| Material of Construction |
Magnesium Alloy
|
| Operating Conditions |
0 to 40°C up to 85% Humidity
|
| Dimensions (W x H x D) |
138 x 97.5 x 88 mm
|
| Weight |
738 g (With Battery, Recording Media)
|
What's in the box
- Canon EOS R5 Mirrorless Camera
- Canon LP-E6NH Lithium-Ion Battery (7.2V, 2130mAh)
- Canon LC-E6 Charger for LP-E6 and LP-EL Battery Packs
- Canon R-F-5 Camera Cover
- Battery Pack Cover
- Strap ER-EOS R5
- Canon IFC-100U Interface Cable (39.4")
- IFC Cable IFC-100U Protector
- Limited 1-Year Manufacturer Warranty
