Description

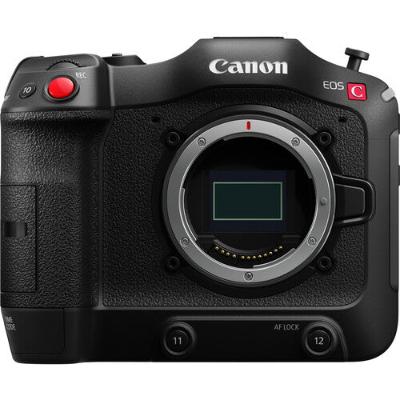

Incorporating key Cinema EOS video tools in a mirrorless-style body, the Canon EOS C70 Cinema Camera features a Super35 DGO (Dual Gain Output) sensor for capturing nuanced images with up to 16+ stops of high dynamic range. The EOS C70 is the first Cinema EOS camera with an RF mount that enables you to use Canon's line of fast, reliable RF lenses with advanced coatings and image stabilization.The innovative DGO system combines two separate gain readings for each photodiode on the sensor, emphasizing saturation in bright areas of your image and lowering noise in darker areas.
Video resolutions include DCI 4K capture at rates ranging from 23.98 to 60 fps, plus high-speed options up to 120 fps in UHD 4K and 180 fps in cropped 2K. Pro video functions include unlimited video recording, Dual Pixel CMOS AF autofocus control, a motorized ND filter wheel tucked into the shallower RF-mount flange depth, a BNC timecode input/output connector, and built-in dual mini-XLR audio inputs.
Features
- Super35 Dual Gain Output (DGO) Sensor
- DCI 4K 60p, Hi-Speed UHD 4K 120p/2K 180p
- Canon Log 2, 3, PQ & HLG HDR Recording
- RF Lens Mount / EF with Optional Adapter
- DIG!C DV7 Image Processor, XC Protocol
- 16+ Stops of Total Dynamic Range
- Built-In ND Filters / Auto ISO & Gain
- Dual Pixel CMOS AF & EOS iTR AF X
- 1 BNC Timecode / 2 Mini-XLR Audio Inputs
- Dual SD Card Slots, LUT/Long GOP Support
Specifications
| Imaging | |
| Lens Mount | Canon RF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Actual: 9.6 Megapixel (4206 x 2280) Effective: 8.85 Megapixel (4096 x 2160) |
| Image Sensor | 26.2 x 13.8 mm (Super35) CMOS |
| Image Stabilization | Digital, 5-Axis |
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
|
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/2000 to 1/12 Second |
| ISO Sensitivity Range | Photo/Video 160 to 25,600 (Extended: 100 to 102,400) |
| Gain | -6 to 54 dB (Native) -2 to 54 dB (Expanded) |
| Shutter Angle | 11 to 360° |
| Advertised Dynamic Range | 16 Stops |
| White Balance | 2000 to 15,000K Presets: AWB, Daylight, Set A, Set B, Tungsten |
| Video Capture | |
| Internal Recording Modes |
XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s] UHD 4K (3840 x 2160) at 24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s] DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s] DCI 2K (2048 x 1080i) at 50/59.94 fps [24 to 600 Mb/s] 1920 x 1080p at 23.98/24.00/25/50/59.94 fps [24 to 600 Mb/s] 1920 x 1080i at 50/59.94 fps [24 to 600 Mb/s] 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s] H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit DCI 4K (4098 x 2160) [135 to 225 Mb/s] DCI 4K (4098 x 2160) UHD 4K (3840 x 2160) at 50/59.94 fps [135 to 225 Mb/s] UHD 4K (3840 x 2160) 2840 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s] 2048 x 1080 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s] 1920 x 1080 1280 x 720 at 50/59.94 fps [12 Mb/s] H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit DCI 4K (4096 x 2160) UHD 4K (3840 x 2160) DCI 2K (2048 x 1080) 1920 x 1080 H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 10-Bit DCI 4K (4096 x 2160) [100 to 170 Mb/s] UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 170 Mb/s] DCI 2K (2048 x 1080) from 12 to 24.00 fps [35 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [35 Mb/s] 1280 x 720 at 50/59.94 fps [9 Mb/s] H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit DCI 4K (4096 x 2160) [150 Mb/s] UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [150 Mb/s] DCI 2K (2048 x 1080) [24 to 35 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 35 Mb/s] 1280 x 720 at 50/59.94 fps [8 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve |
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Wide DR
|
| Broadcast Output | NTSC/PAL |
| Built-In Microphone Type | Stereo Mono |
| Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | Yes |
| Still Image Capture | |
| Image Sizes | 16:9 JPEG 3840 x 2160 1920 x 1080 17:9 JPEG 4096 x 2160 2048 x 1080 |
| Aspect Ratio | 16:9, 17:9 |
| Image File Format | JPEG |
| Bit Depth | 12-Bit |
| Interface | |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC |
| Video I/O | 1 x HDMI (Unspecified Signal) Output |
| Audio I/O |
2 x Mini XLR Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Barrel (11.5 to 20VDC) Input |
| Other I/O | 1 x USB-C Control/Video Input/Output 1 x BNC (Timecode) Input/Output 1 x 2.5 mm Sub-Mini (LANC) Control |
| Wireless | No |
| Mobile App Compatible |
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Adapter Required |
| Monitor | |
| Display Type | Articulating Touchscreen LCD |
| Display Size | 3.5" |
| Resolution | 1280 x 720 (2,760,000 Dot) |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C (Recommended) |
| Operating Humidity | 85% (Recommended) |
| General | |
| Battery Type | Canon BP-A Series |
| Shoe Mount | 2 x Cold Shoe |
| Tripod Mounting Thread | 2 x 1/4"-20 Female (Bottom) 1 x 3/8"-16 Female (Bottom) 1 x 1/4"-20 Female (Side) |
| Accessory Mounting Thread | 1 x 1/4"-20 |
| Netflix Approved | Yes |
| Dimensions (W x H x D) | 5.1 x 6.3 x 4.6" / 130.2 x 160 x 115.9 mm |
| Weight | 2.58 lb / 1.17 kg (Body Only) 2.95 lb / 1.34 kg (With Battery) |
| Packaging Info | |
| Package Weight | 6.655 lb |
| Box Dimensions (LxWxH) | 13.6 x 10.3 x 8.3" |
What's in the box
- Canon EOS C70 Cinema Camera (RF Mount)
- Canon CA-CP200L Compact AC Power Adapter
- CG-A20 Battery Charger
- AC Power Cable
- Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
- Handle Unit
- Microphone Holder
- Body Cap
- SS-1200 Shoulder Strap
- Tape Measure Hook
- Shoe Mount Bracket
- Limited 1-Year Manufacturer Warranty
