Description

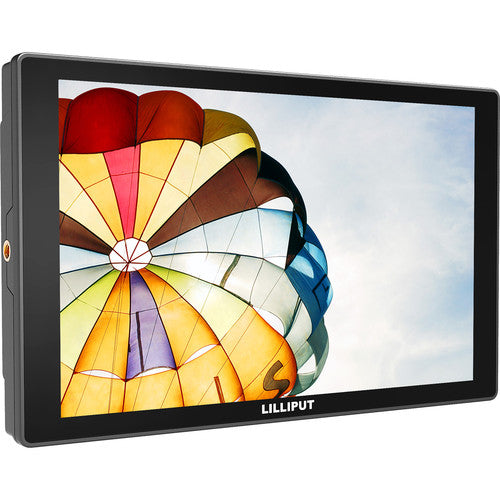

The 10.1" A11 4K HDMI & 3G-SDI Monitor from Lilliput is a field monitor designed for on-camera use with video, DSLR, and mirrorless cameras. This Full HD panel monitor features both 4K HDMI input/output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast, and 320 cd/m² brightness.
Integrated tools include focus peaking, histogram, selectable aspect ratios, false color, zoom, image flip, and an audio level meter. These display tools assist users in accurately monitoring their video when recording or playing back footage in post-production. Two user-assignable buttons enable you to quickly access your most-used tools.
Power the A11 monitor using one Sony L-series type battery and the included plate, or use a separately available V-mount or Gold mount battery plate with your compatible battery. Mounting options include a 1/4"-20 thread for use with a support arm and a 75 x 75mm VESA pattern.
Features
- 10.1" 1920 x 1200 HDMI & 3G-SDI Monitor
- 320 cd/m² Brightness
- 4K HDMI Input/Output
- Interchangeable L-Series Battery Plate
- 1000:1 Contrast Ratio
- 175° Viewing Angle
- Peaking / False Color / Histogram
- Exposure / Audio Meter / Image Flip
- 1/4"-20 and VESA 75 Mounting Options
Specification
| Panel Type | LCD |
| Display Size | 10.1" / 25.7 cm |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 175° Vertical: 175° |
| Touchscreen | No |
| Maximum Brightness | 320 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 224 ppi |
| Image Controls | Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Underscan, Zebra |
| Wi-Fi | None |
| Video | 1 x HDMI Type A (HDMI 1.4b) Input 1 x BNC (3G-SDI) Input 1 x DE-15/DB-15 (VGA) Input 1 x HDMI Type A (HDMI 1.4b) Output 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI SDI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x Barrel (24 VDC) Input |
| Other I/O | 1 x USB 2.0 (USB Type-B) |
| Card Slot | None |
| Video Format | HDMI UHD 4K: 30 1080p: 30 1080i: 30 720p: 30 576p: 30 576i: 30 480p: 30 480i: 30 |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 13 W |
| Mounting-Hole Pattern | 75 x 75 mm |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 9.9 x 6.2 x 1" / 252 x 157 x 25 mm |
| Weight | 1.21 lb / 550 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 3.59 lb |
| Box Dimensions (LxWxH) | 10.8 x 7.1 x 4.5" |
What's in the box
- Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate
- Sony L-Series Type Battery Plate
- AC Adapter
- Limited 1-Year Manufacturer Warranty
