The Belkin Universal USB-C 11 in 1 GaN Docking Station offers cutting-edge GaN technology for powerful, space-efficient performance. Delivering up to 146W total power, it supports 96W charging for laptops and 50W for peripherals. Equipped with USB-C 3.2 Gen 2 ports, including a high-speed host connection supporting data transfer up to 10 Gb/s, it ensures rapid file backup and transfer. Additional ports include USB-C 3.1 Gen 1 for device charging, USB-A 3.2 Gen 2, SD and microSD card readers for convenient media offloading, and Gigabit Ethernet for reliable wired networking.
Features
- USB-C 3.2 Gen 2 Host Connection (96W)
- Integrated GaN Technology
- Up to 146W Power Delivery
- Triple 4K Monitor Support
- 1 x USB-A 3.2 Gen 2
- 2 x USB-C 3.2 Gen 2
- 1 x USB-C 3.2 Gen 1
- SD & microSD Card Readers
- 2 x HDMI 2.0
- 3.5mm Audio Jack | Gigabit Ethernet Port
Specifications
| USB I/O |
1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports Video Alt Mode and 15 W Output |
|
1x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W Output |
|
1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 20 W Output |
|
1x USB-C (Charging Only) / Supports 96 W Power Delivery |
|
1x USB-A 3.1/3.2 Gen 2 / Supports 7.5 W Output |
| Video I/O |
2x HDMI |
| Max Resolution |
|
|
2 Displays Supported: |
|
7680 x 4320 at 30 Hz (Single) |
|
3840 x 1440 at 60 Hz (Dual) |
| Audio I/O |
3.5 mm Headphone/Microphone Combo Jac |
| Network I/O |
1x RJ45 (10/100/1000 Mb/s) |
| Host Connection |
USB-C 3.1/3.2 Gen 2 via Detachable Cable |
| Power Source |
Included AC Adapter: 100 to 240 VAC, 50/60 Hz |
| Media Card Reader |
1x SDXC |
|
1x microSDXC |
| Wireless Charging |
No |
| OS Compatibility |
- |
| Operating Conditions |
- |
| Storage Conditions |
- |
| Lock Slot |
No |
| Cable Length |
1 m |
| Weight |
- |

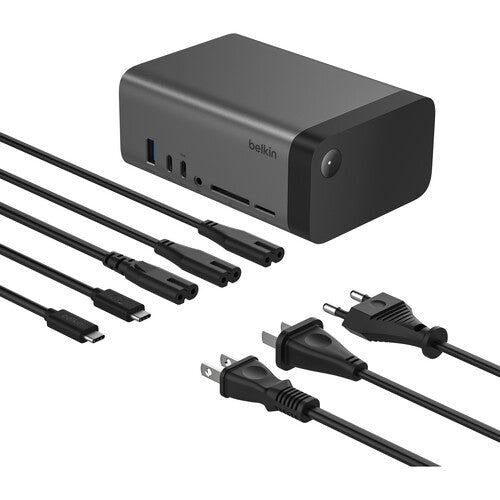

What's in the box
- Belkin Connect USB-C 11-in-1 Pro GaN Dock (150W)
- Power Cable
- USB-C Cable (3.3')
- Limited 2-Year Manufacturer Warranty
