Description

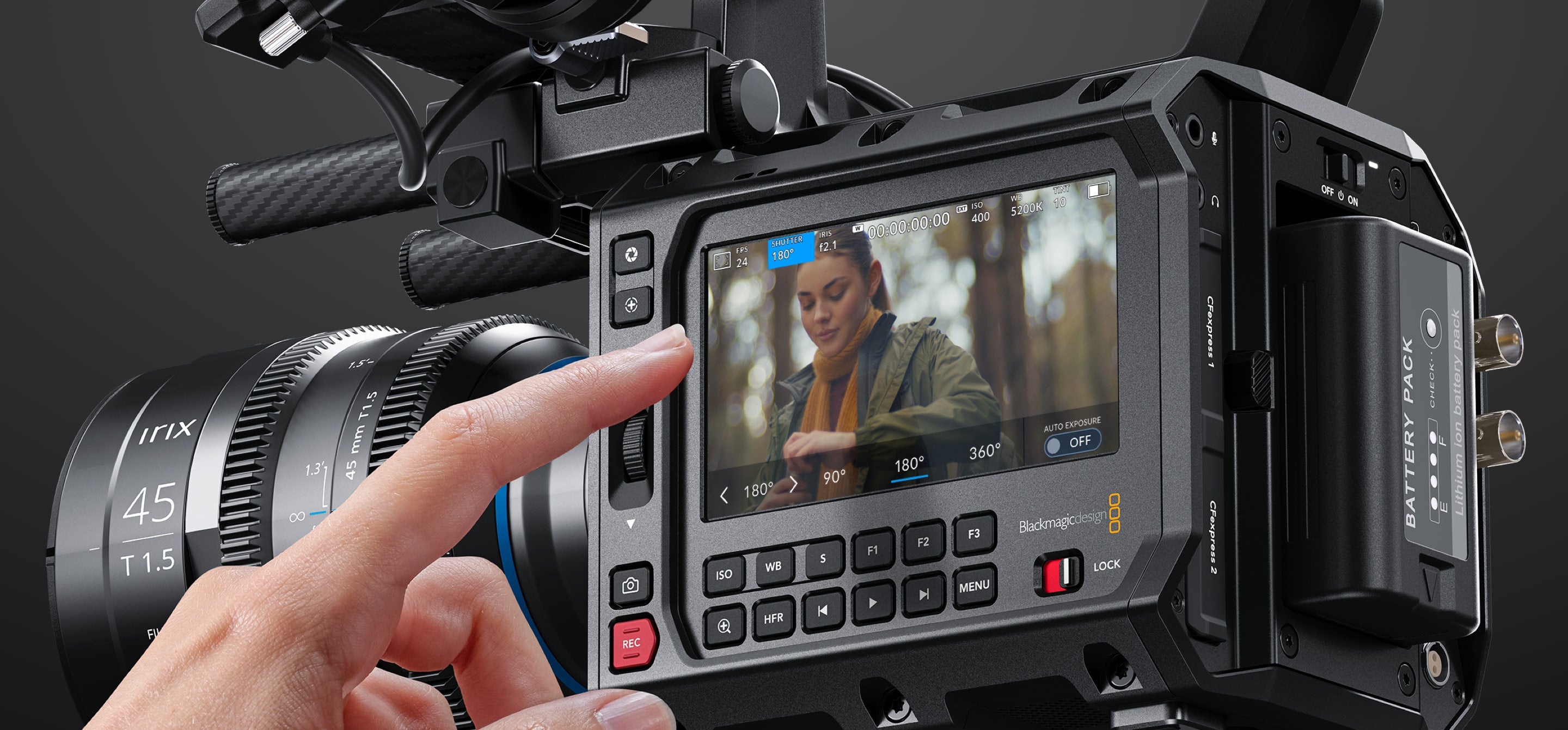

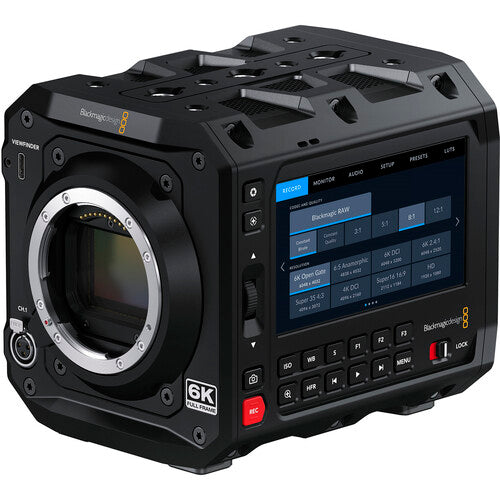

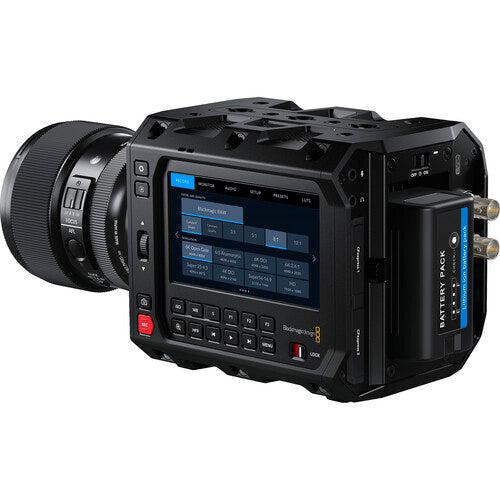

Introducing the Blackmagic PYXIS 6K - a high-end cinema box camera (Leica L) designed for elite filmmakers. Boasting a full-frame 6K sensor, this masterpiece captures breathtaking images with an impressive dynamic range of 13 stops. With the support of dual-native ISO, its low-light performance is unparalleled. The renowned Leica L lens mount offers an extensive array of top-quality lenses. Its 4-inch HDR LCD touchscreen enables real-time monitoring and adjustments. Fusing maximum quality with convenience, this camera allows recording in Blackmagic RAW as well as H.264 proxies for seamless editing. Built-in streaming over Ethernet and 4G/5G connectivity is an added bonus. With customizable features such as switchable side plates and diverse mounting threads, this modular camera caters to your every filming requirement. Store your masterpieces on two CFexpress card slots or transfer them through the USB-C port, Ethernet, or 12G-SDI connections.
Features
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- Leica L Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Specifications
| Lens Mount | Leica L |
| Sensor Resolution |
Not Specified by Manufacturer
|
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS
|
| Image Stabilization | No |
| ISO Sensitivity Range | 400 to 3200 |
| Internal Recording Modes |
Blackmagic RAW
6048 x 4032 [75 to 555 MB/s] 6048 x 3200 [60 to 441 MB/s] 6048 x 2520 [47 to 348 MB/s] 4832 x 4032 [60 to 445 MB/s] 4096 x 3072 [39 to 288 MB/s] DCI 4K (4096 x 2160) [28 to 203 MB/s] 2112 x 1184 [9 to 59 MB/s] 1920 x 1080 [8 to 49 MB/s] Show More |
| External Recording Modes | SDI/BNC 6048 x 4032 6048 x 3200 6048 x 2520 4096 x 3072 4096 x 2160 1920 x 1080 Show More |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
|
| Video I/O |
1x BNC (12G-SDI) Output
|
| Mobile App Compatible | No |
| Battery Type |
Sony BP-U Series
|
| Imaging | |
| Lens Mount | Leica L |
| Lens Communication | Yes |
| Sensor Resolution |
Not Specified by Manufacturer
|
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS
|
| Image Stabilization | No |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| ISO Sensitivity Range | 400 to 3200 |
| Advertised Dynamic Range | 13 Stops |
| Video Capture | |
| Internal Recording Modes |
Blackmagic RAW
6048 x 4032 [75 to 555 MB/s] 6048 x 3200 [60 to 441 MB/s] 6048 x 2520 [47 to 348 MB/s] 4832 x 4032 [60 to 445 MB/s] 4096 x 3072 [39 to 288 MB/s] DCI 4K (4096 x 2160) [28 to 203 MB/s] 2112 x 1184 [9 to 59 MB/s] 1920 x 1080 [8 to 49 MB/s] |
| External Recording Modes | SDI/BNC 6048 x 4032 6048 x 3200 6048 x 2520 4096 x 3072 4096 x 2160 1920 x 1080 |
| Fast-/Slow-Motion Support | No |
| Built-In Microphone | Stereo |
| IP Streaming | Yes |
| Still Image Capture | |
| Aspect Ratio |
3:2, 4:3, 16:9, 17:9
|
| Image File Format | Raw |
| Interface | |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
|
| Video I/O |
1x BNC (12G-SDI) Output
|
| Audio I/O |
1x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O |
1x LEMO 2-Pin (12VDC) Input
|
| Other I/O |
2x USB-C
1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet) |
| Wireless | Bluetooth |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type |
Fixed Touchscreen LCD
|
| Display Size | 4" |
| Resolution | 1920 x 1080 |
| Focus | |
| Focus Type |
Auto and Manual Focus
|
| Focus Mode | Manual Focus |
| Environmental | |
| Operating Temperature |
0 to 40°C
|
| Storage Temperature |
-20 to 45°C
|
| Operating Humidity | 0 to 90% |
| General | |
| Battery Type |
Sony BP-U Series
|
| Shoe Mount | No |
| Tripod Mounting Thread |
5x 1/4"-20 Female (Bottom)
5x 3/8"-16 Female |
| Accessory Mounting Thread |
2x 1/4"-20 on Camera Body
1x 3/8"-16 on Camera Body 4x M4 on Camera Body |
| Dimensions (W x H x D) |
10.59 x 11.91 x 15.09 cm
|
| Weight |
1.5 kg (Body Only)
|
What's in the box
- Blackmagic Design PYXIS 6K Cinema Box Camera (Canon EF)
- PYXIS Standard Mounting Plate
- PYXIS SSD Mounting Plate
- Lens Cap
- Power Supply with International Adapters (60W)
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
