Description

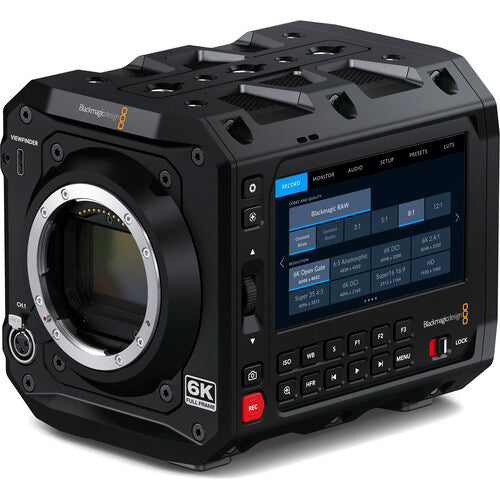

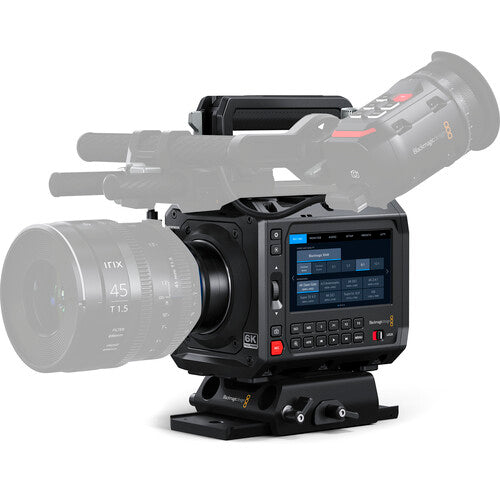

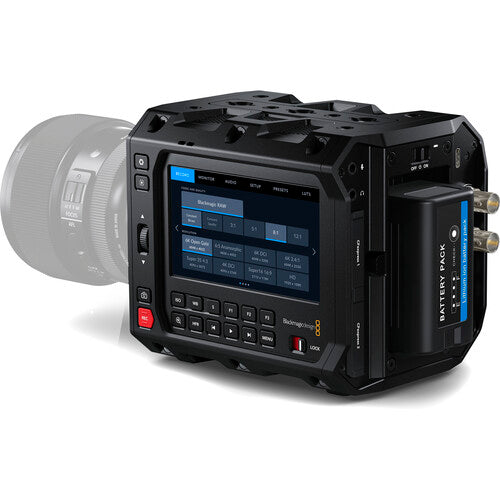

The Blackmagic PYXIS 6K EF is a top-of-the-line box camera equipped with a full frame 6K sensor capable of capturing stunning 6K resolution videos. It boasts a wide dynamic range of 13 stops and dual native ISO, providing outstanding performance even in low-light situations. The camera utilizes a Canon EF lens mount and includes a 4-inch HDR LCD touchscreen for precise footage monitoring. Along with Blackmagic RAW and H.264 proxy formats for video recording, it also offers convenient built-in streaming through Ethernet or 4G/5G connections. For maximum flexibility, the camera features interchangeable side plates with mounting threads, two CFexpress card slots for recording media, and an array of ports for seamless data transfer and video output.
Features
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- Canon EF Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-in streaming via Ethernet or 4G/5G
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Specifications
| Imaging | |
| Lens Mount | Canon EF |
| Lens Communication | Yes |
| Sensor Resolution |
Not Specified by Manufacturer
|
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS
|
| Image Stabilization | No |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
|
Exposure Control
|
|
| ISO Sensitivity Range | 400 to 3200 |
| Advertised Dynamic Range | 13 Stops |
| Video Capture | |
| Internal Recording Modes |
Blackmagic RAW
6048 x 4032 [75 to 555 MB/s] 6048 x 3200 [60 to 441 MB/s] 6048 x 2520 [47 to 348 MB/s] 4832 x 4032 [60 to 445 MB/s] 4096 x 3072 [39 to 288 MB/s] DCI 4K (4096 x 2160) [28 to 203 MB/s] 2112 x 1184 [9 to 59 MB/s] 1920 x 1080 [8 to 49 MB/s] |
| External Recording Modes | SDI/BNC 6048 x 4032 6048 x 3200 6048 x 2520 4096 x 3072 4096 x 2160 1920 x 1080 |
| Fast-/Slow-Motion Support | No |
| Built-In Microphone | Stereo |
| IP Streaming | Yes |
|
Still Image Capture
|
|
| Aspect Ratio |
3:2, 4:3, 16:9, 17:9
|
| Image File Format | Raw |
| Interface | |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
|
| Video I/O |
1x BNC (12G-SDI) Output
|
| Audio I/O |
1x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O |
1x LEMO 2-Pin (12VDC) Input
|
| Other I/O |
2x USB-C
1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet) |
| Wireless | Bluetooth |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type |
Fixed Touchscreen LCD
|
| Display Size | 4" |
| Resolution | 1920 x 1080 |
| Focus | |
| Focus Type |
Auto and Manual Focus
|
| Focus Mode | Manual Focus |
| Environmental | |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Operating Humidity | 0 to 90% |
| General | |
| Battery Type |
Sony BP-U Series
|
| Shoe Mount | No |
| Tripod Mounting Thread |
5x 1/4"-20 Female (Bottom)
5x 3/8"-16 Female |
| Accessory Mounting Thread |
2x 1/4"-20 on Camera Body
1x 3/8"-16 on Camera Body 4x M4 on Camera Body |
| Dimensions (W x H x D) |
4.17 x 4.69 x 5.94" / 10.59 x 11.91 x 15.09 cm
|
| Weight |
3.3 lb / 1.5 kg (Body Only)
|
What's in the box
- Blackmagic Design PYXIS 6K Cinema Box Camera (Canon EF)
- PYXIS Standard Mounting Plate
- PYXIS SSD Mounting Plate
- Lens Cap
- Power Supply with International Adapters (60W)
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
