Description

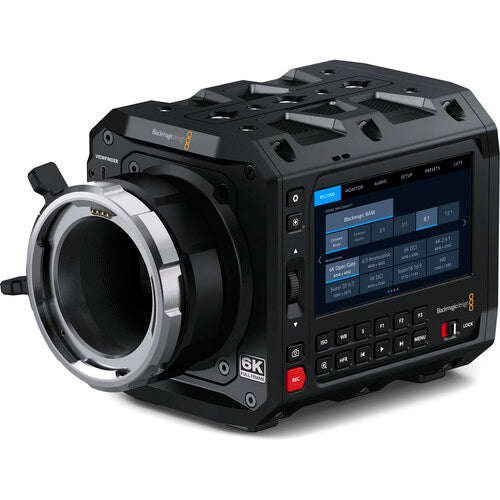

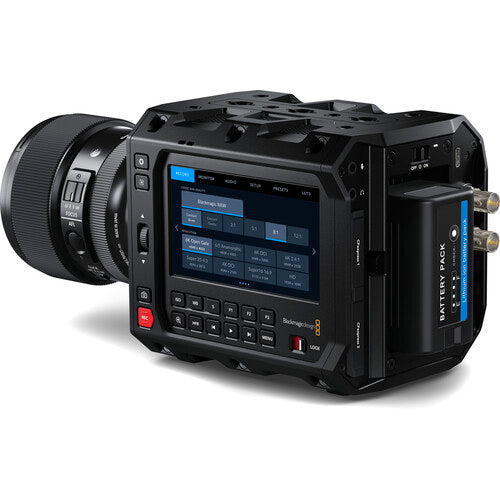

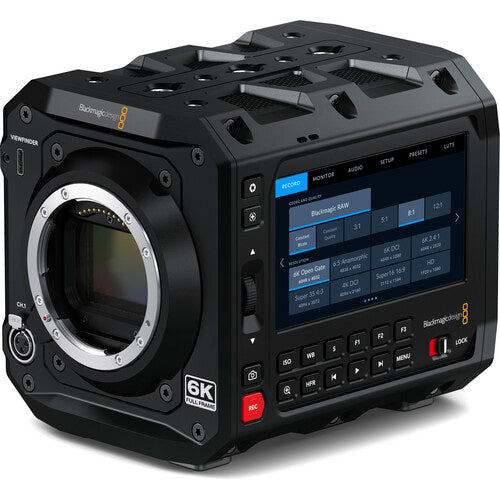

Experience the ultimate in digital film technology with the Blackmagic PYXIS 6K PL, featuring a luxury box-style design and a lockable ARRI PL lens mount. With a full-frame 6K sensor, advanced color capture, and a wide dynamic range, this cinema camera sets a new standard for cinematic excellence. Record Blackmagic RAW and H.265 proxy files or stream directly to social media through the power of Ethernet and 4G/5G technology. Shoot in a variety of selectable resolutions, including 6K Open Gate 3:2 at 36 fps or 6K Anamorphic 6:5 at 60 fps, and elevate your filmmaking to new heights.
Features
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- ARRI PL Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Specifications
| Imaging | |
| Lens Mount | ARRI PL |
| Lens Communication | Yes |
| Sensor Resolution |
Not Specified by Manufacturer
|
| Image Sensor |
36 x 24 mm (Full-Frame) CMOS
|
| Image Stabilization | No |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
|
Exposure Control
|
|
| ISO Sensitivity Range | 400 to 3200 |
| Advertised Dynamic Range | 13 Stops |
| Video Capture | |
| Internal Recording Modes |
Blackmagic RAW
6048 x 4032 [75 to 555 MB/s] 6048 x 3200 [60 to 441 MB/s] 6048 x 2520 [47 to 348 MB/s] 4096 x 3072 [39 to 288 MB/s] DCI 4K (4096 x 2160) [28 to 203 MB/s] 1920 x 1080 [8 to 49 MB/s] |
| External Recording Modes | SDI/BNC 6048 x 4032 6048 x 3200 6048 x 2520 4096 x 3072 4096 x 2160 1920 x 1080 |
| Fast-/Slow-Motion Support | No |
| Built-In Microphone | Stereo |
| IP Streaming | Yes |
|
Still Image Capture
|
|
| Aspect Ratio |
3:2, 4:3, 16:9, 17:9
|
| Image File Format | Raw |
| Interface | |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type B
|
| Video I/O |
1x BNC (12G-SDI) Output
|
| Audio I/O |
1x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O |
1x LEMO 2-Pin (12VDC) Input
|
| Other I/O |
2x USB-C
1x BNC (Reference, Timecode) 1x RJ45 (10 Gigabit Ethernet) |
| Wireless | Bluetooth |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type |
Fixed Touchscreen LCD
|
| Display Size | 4" |
| Resolution | 1920 x 1080 |
| Focus | |
| Focus Type |
Auto and Manual Focus
|
| Focus Mode | Manual Focus |
| Environmental | |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Operating Humidity | 0 to 90% |
| General | |
| Battery Type |
Sony BP-U Series
|
| Shoe Mount | No |
| Tripod Mounting Thread |
5x 1/4"-20 Female (Bottom)
5x 3/8"-16 Female |
| Accessory Mounting Thread |
2x 1/4"-20 on Camera Body
1x 3/8"-16 on Camera Body 4x M4 on Camera Body |
| Dimensions (W x H x D) |
4.17 x 4.69 x 5.94" / 10.59 x 11.91 x 15.09 cm
|
| Weight |
3.3 lb / 1.5 kg (Body Only)
|
What's in the box
- Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL)
- PYXIS Standard Mounting Plate
- PYXIS SSD Mounting Plate
- Lens Cap
- Power Supply with International Adapters (60W)
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
