Description
The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5" tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.
Features
- Super 35 HDR Sensor, Gen 5 Color Science
- Canon Active EF Mount, Mini XLR Inputs

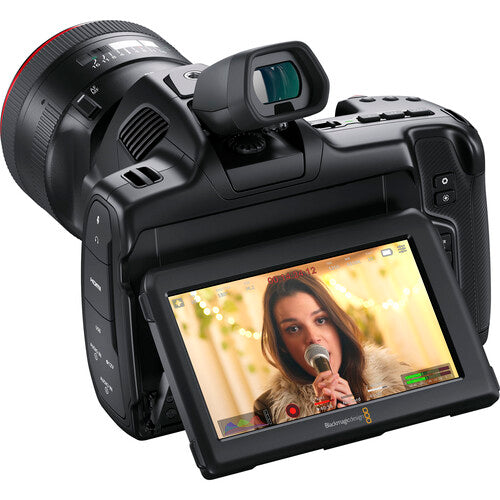

- 5" Tilting LCD Touchscreen
- Does Not Have Internal ND Filters
- Record 6K 6144 x 3456 up to 50 fps
- Record up to 120 fps Windowed 2.8K/1080p
- CFast 2.0 & SD/UHS-II Card Slots
- Dual Native 400 & 3200 ISO
- Supports Optional Pro EVF
- Supports Optional Pro Battery Grip
Specifications
| Lens Mount | Canon EF |
| Sensor Resolution |
Effective: 21.2 Megapixel (6144 x 3456)
|
| Image Sensor |
23.1 x 12.99 mm (Super35) CMOS
|
| ISO Sensitivity Range | 100 to 25,600 |
| Internal Recording Modes |
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 Mb/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 Mb/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 Mb/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps |
| Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast |
| Video I/O |
1 x HDMI (Unspecified Signal) Output
|
| Mobile App Compatible |
Yes: iOS Only
App Name: BlackMagic Camera Control Functionality: Adjust Settings, Remote Control *As of May, 2023: Check with manufacturer for the most up-to-date compatibility Show More |
| Battery Type | Sony L-Series |
| Lens Mount | Canon EF |
| Lens Communication |
Yes, with Autofocus Support
|
| Sensor Resolution |
Effective: 21.2 Megapixel (6144 x 3456)
|
| Image Sensor |
23.1 x 12.99 mm (Super35) CMOS
|
| Image Stabilization | No |
| Built-In ND Filter | No |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Type |
Electronic Rolling Shutter
|
| ISO Sensitivity Range | 100 to 25,600 |
| Shutter Angle | 5 to 360° |
| Advertised Dynamic Range | 13 Stops |
| Internal Recording Modes |
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 60.00 fps UHD 4K (3840 x 2160) up to 60.00 fps 1920 x 1080p up to 120 fps Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 Mb/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 Mb/s] 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 Mb/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s] |
| External Recording Modes |
4:2:2 10-Bit via HDMI
1920 x 1080 up to 60.00 fps Raw via USB 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps |
| Sensor Crop While Recording |
6K (6144 x 2560) in 2.4:1 When Recording in Raw
5744 x 3024 When Recording in Raw 4K (4096 x 2160) When Recording in Raw 3728 x 3104 When Recording in Raw 2868 x 1512 When Recording in Raw |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone Type | Stereo |
| IP Streaming | No |
| Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast |
| Video I/O |
1 x HDMI (Unspecified Signal) Output
|
| Audio I/O |
2 x Mini XLR Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1 x Weipu SF610/S2 (12 to 20VDC) Input
|
| Other I/O |
1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output
1 x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
| Wireless |
Bluetooth Control
|
| Mobile App Compatible |
Yes: iOS Only
App Name: BlackMagic Camera Control Functionality: Adjust Settings, Remote Control *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Size | 5" |
| Resolution | 1920 x 1080 |
| Display Type |
Tilting Touchscreen LCD
|
| Type |
Optional, Not Included
|
| Focus Type |
Auto and Manual Focus
|
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Battery Type | Sony L-Series |
| Shoe Mount | No |
| Tripod Mounting Thread |
2 x 1/4"-20 Female
|
| Accessory Mounting Thread | 1 x 1/4"-20 |
| Material of Construction |
Carbon Fiber, Polycarbonate
|

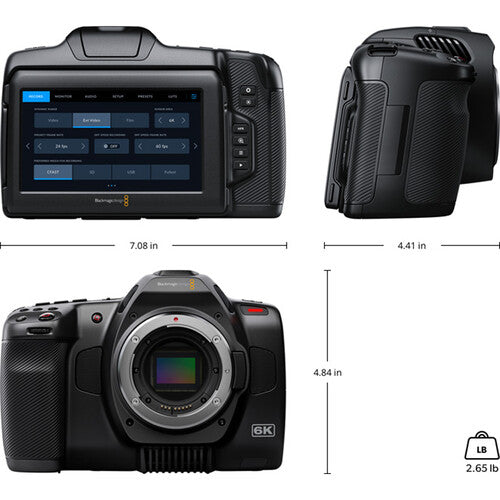

| Dimensions (W x H x D) |
17.98 x 12.29 x 11.2 cm
|
| Weight | 1.20 kg |
What's in the box
- Blackmagic Design Pocket Cinema Camera 6K G2
- Lens Port Cap
- Camera Strap
- Locking Power Supply with International Adapters (30W)
- L-Series NP-F570 Battery
- L-Series Battery Charger
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
