Description

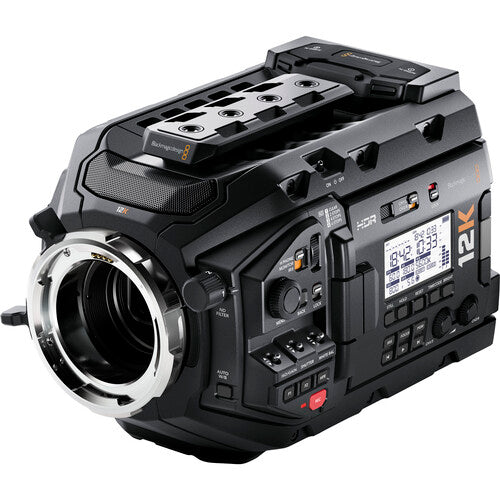

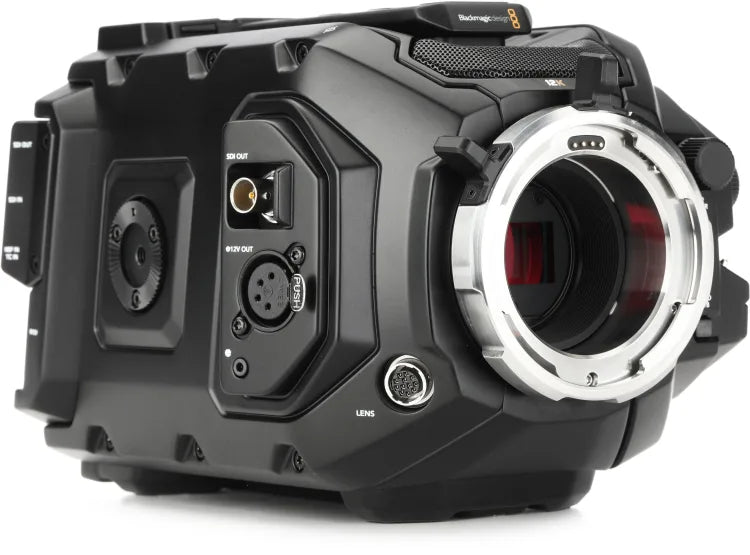

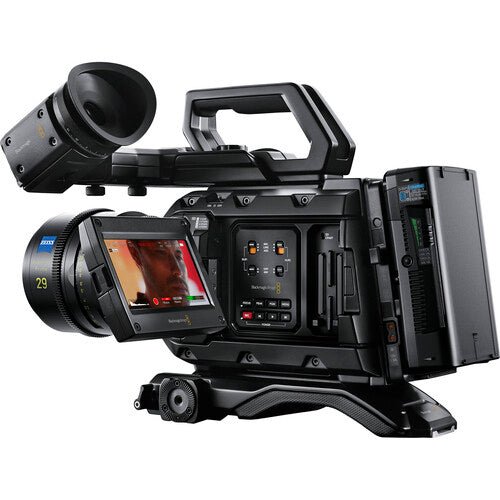

Step your cine-style video recording up to 12K with the URSA Mini Pro 12K Digital Cinema Camera with OLPF from Blackmagic Design. This pro video camera uses a 12,288 x 6480 12K Super35 sensor, a new color science, and up to 14 stops of dynamic range to produce extraordinarily detailed images. The URSA Mini Pro 12K OLPF uses an optical low pass filter that minimizes unwanted image interference when shooting in virtual production environments and also offers updated IR filtering. The camera records up to 80MP per frame in Blackmagic Raw and offers flexible recording options that include dual CFast 2.0 card capture and high-speed USB-C output. Recording rates include up to 60 fps in 12K 17:9 full sensor, up to 75 fps in 12K 2.4:1, 120 fps in 8K, and up to 240 fps in 4K Super 16.
Features
- 12K Super35 HDR CMOS Sensor
- 12K 17:9 at 60 fps | 12K 2.4:1 at 75 fps
- OLPF for Reduced Moire and Aliasing
- Updated IR Filtering
- DCI 8K at 120 fps, 14-Stop Dynamic Range
- User-Changeable PL Lens Mount
- 4K Super16 up to 220 fps
- 80MP/frame Blackmagic Raw
- Dual CFast 2.0 or SD Card Recording
- USB-C Recording to Disk/SSD
Specifications
| Imaging | |
| Lens Mount | ARRI PL |
| Lens Communication | Yes |
| Sensor Resolution | Effective: 79.6 Megapixel (12,288 x 6480) |
| Image Sensor | 27.03 x 14.25 mm (Super35) CMOS |
| Image Stabilization | No |
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Type | Electronic Rolling Shutter |
| ISO Sensitivity Range | 125 to 3200 |
| Advertised Dynamic Range | 14 Stops |
| Video Capture | |
| Internal Recording Modes | Blackmagic RAW 12-Bit 12288 x 6480 up to 60.00 fps [72 to 578 Mb/s] 12288 x 5112 up to 75 fps 11520 x 6480 up to 60.00 fps 8192 x 4320 [32 to 258 Mb/s] 8192 x 3408 up to 160 fps 7680 x 6408 7680 x 4320 6144 x 3240 [18 to 145 Mb/s] 5120 x 4272 up to 160 fps 4096 x 2160 up to 240 fps [8 to 65 Mb/s] 4096 x 1704 up to 160 fps 3840 x 2160 2560 x 2136 up to 160 fps |
| External Recording Modes | Raw via USB 12288 x 6480 8192 x 4320 6144 x 3240 4096 x 2160 |
| Fast-/Slow-Motion Support | Yes |
| Broadcast Output | NTSC/PAL |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | No |
| Still Image Capture | |
| Aspect Ratio | 1:1, 2:1, 4:3, 4:5, 16:9 |
| Image File Format | Raw |
| Interface | |
| Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output |
| Audio I/O |
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
| Power I/O | 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input |
| Wireless | Bluetooth |
| Mobile App Compatible |
Yes: Android & iOS
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type | Articulating Touchscreen LCD |
| Display Size | 4.0" |
| Secondary Display | Side: Status Display |
| Viewfinder | |
| Type | Optional, Not Included |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| General | |
| Accessory Mounting Thread | 4 x 1/4"-20 1 x ARRI/Hirth Rosette |
| Dimensions (W x H x D) | 9.2 x 5.92 x 5.87" / 23.4 x 15.04 x 14.91 cm |
| Weight | 5.62 lb / 2.55 kg |
| Packaging Info | |
| Package Weight | 8.49 lb |
| Box Dimensions (LxWxH) | 12.3 x 10.4 x 8.3" |
What's in the box
- Blackmagic Design URSA Mini Pro 12K with OLPF
- PL Lens Mount
- Port Cap
- Power Supply
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
