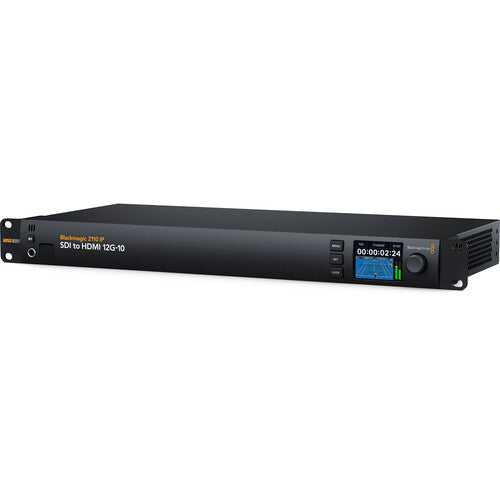

Experience the latest OLED displays with the Blackmagic 2110 IP SDI to HDMI 12G-10 Converter. With 12G-SDI and 2110 IP signal support, this converter provides color-accurate monitoring, color grading, and editing. Enjoy ten channels of audio monitoring with adjustable gain and delay, and accurate calibration with 3D LUTs. Seamlessly integrate with SDI gear and 2110 IP broadcast systems for a professional and sophisticated workflow.
Features
- Converts from 12G-SDI or 2110 IP to HDMI
- Rackmount Design, Front Panel Controls
- LCD for Audio/Video Monitoring & Menus
- Supports 3D LUTs for Color Calibration
- Ideal for Color Grading & Edit Suites
- 10 XLR Outputs
- Redundant Power Supply
Specifications
| Inputs / Outputs |
|
| Video I/O |
Input |
|
1x BNC (12G-SDI) |
|
Output |
|
1x BNC (12G-SDI) (Loop Output) |
|
Output |
|
1x HDMI (Unspecified Signal) |
| Audio I/O |
Output |
|
10x XLR 3-Pin Analog Male |
|
1x 1/4" TRS Stereo Analog Female |
| Other I/O |
Input/Output |
|
1x RJ45 (10 GbE) |
|
Input |
|
1x 1/4" TRS (Remote) |
| Expansion Slots |
No |
| Format Support |
- |
| Video Resolution |
|
|
SDI Input/Output |
|
3840 x 2160 up to 60 fps |
|
HDMI Input/Output |
|
3840 x 2160 |
|
RJ45 Input/Output |
|
3840 x 2160 up to 60 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI |
| Standards |
|
| Video Standard Compliance |
SMPTE: ST-2110 |
| HDR Compatibility |
- |
| Hardware |
|
| Wireless |
No |
| OS Compatibility |
|
| Power |
- |
| Power I/O |
1x IEC C13 Input |
|
1x Barrel (12 VDC ) Input |
| PoE Support |
- |
| Environmental |
|
| Operating Temperature |
- |
| Storage Temperature |
- |
| Operating Humidity |
- |
| Storage Humidity |
- |
| General |
|
| Dimensions |
- |
| Weight |
- |
What's in the box
- Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter
- Limited 1-Year Manufacturer Warranty
