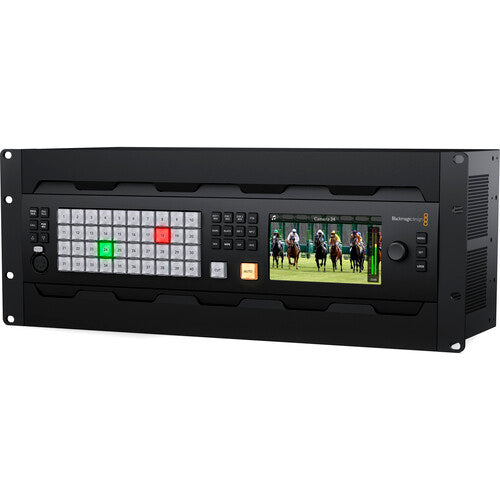

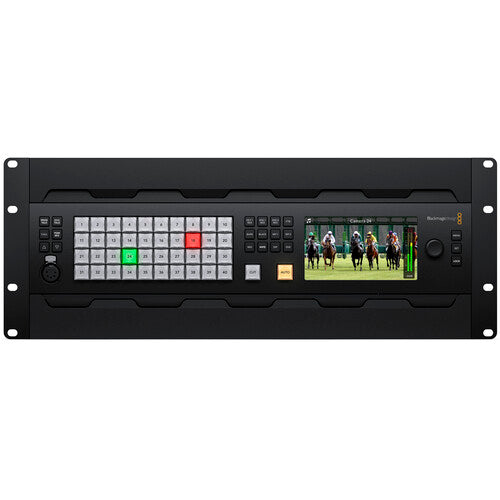

Elevate your live productions with Blackmagic ATEM 4 M/E Constellation 4K Plus. With 80 12G-SDI inputs, 48 independent 12G-SDI outputs, and 4 multiview outputs showing up to 16 windows, this switcher delivers stunning 10-bit UHD 4K60 video and 298 channels of audio. Perfect for cameras and sources, it's the ultimate tool for professional quality productions.
Features
- Twice the I/O of Original Model
- Supports 12G-SDI at 10-Bit
- 80 x 12G-SDI In, 48 x 12G-SDI Out
- 2 x MADI Inputs, 4 x MADI Outputs
- Webcam Output via USB-C
- Frame Rate/Format Converter per Input
- 298-Channel FairLight Audio Mixer
- 16 x Upstream, 4 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
Specifications
| Available M/E Layers |
4 M/E |
| Effect Types |
16x Chroma Key |
|
21x Luma Key |
|
4x Stinger |
|
4x DVE |
| Downstream Keys |
4x Chroma, Luma, DVE |
| Generators |
2x Color |
|
21x Pattern |
| Audio Mixing |
298-Channel Mixing |
| Processing |
|
| Switching Type |
Pushbutton, Software |
| Latency |
- |
| Processing Resolution |
UHD 4K at 60 |
| Color Processing |
10-Bit 4:2:2 |
| Input |
|
| Number of Video Input Sources |
80 |
| Video Inputs |
80x BNC (12G-SDI) |
| Input Video Format |
SDI (10-Bit 4:2:2) |
|
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080i at 50/59.94/60 fps |
|
720p at 50/59.94/60 fps |
| Audio Inputs |
2x 1/4" TRS Stereo Analog Female |
|
1x BNC Stereo MADI |
| Embedded Audio Input |
SDI: 2-Channel (per Input) |
| Output |
|
| Video Output Channels |
52 |
| Video Outputs |
48x BNC (12G-SDI) |
|
1x USB-C (USB Video) (Program) |
| Output Video Format |
SDI (10-Bit 4:2:2) |
|
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080i at 50/59.94/60 fps |
|
720p at 50/59.94/60 fps |
|
USB-C |
|
1080p |
|
720p |
|
|
| Embedded Audio Output |
SDI |
|
USB-C |
| Multiview Output |
4-Way Multiview via SDI |

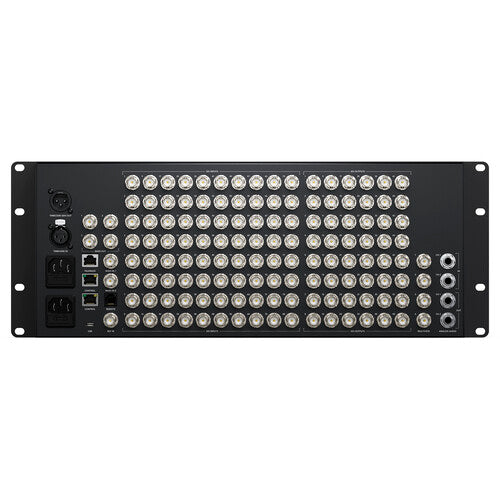

| Connectivity |
|
| Other I/O |
1x BNC Blackburst, Reference, Tri-Level Sync Input |
|
1x RJ45 Control |
|
1x RJ12 Control |
|
1x RJ45 Talkback Input/Output |
|
1x XLR 5-Pin Talkback Input/Output |
|
|
| Video Standard Compliance |
SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| Display |
|
| Display Size |
- |
| Hardware |
- |
| OS Compatibility |
|
| Processor |
Not Specified by Manufacturer |
| Wi-Fi |
No |
| Bluetooth |
No |
| Power I/O |
2x IEC C14 Input |
| Power Consumption |
|
| Environmental |
|
| Operating Temperature |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
- |
| General |
|
| Rack Form Factor |
4 U |
| Dimensions |
19 x 8.9 x 7" / 48.3 x 22.6 x 17.8 cm |
| Weight |
12.24 kg |
What's in the box
- Blackmagic Design ATEM 4 M/E Constellation 4K Plus
- Limited 1-Year Manufacturer Warranty
