The Blackmagic ATEM Micro Camera Panel is a portable hardware controller for adjusting up to 8 Blackmagic cameras at once, built for shading operators who need consistent colour and exposure across a multi-camera shoot without a laptop.
Matching exposure and colour across multiple cameras mid-show is hard to do from software alone. The ATEM Micro Camera Panel gives 8 assignable NKK camera-select buttons with red/green on-air illumination and dedicated controls for iris, pedestal, shutter, white balance, master gain and RGB balance across up to 8 URSA Mini Pro, URSA Broadcast or Blackmagic Studio cameras, plus a 3-axis joystick for fine adjustment. A built-in battery connects over USB-C or Bluetooth for fully mobile shading.
Key Features
- Controls up to 8 URSA Mini Pro, URSA Broadcast or Blackmagic Studio cameras

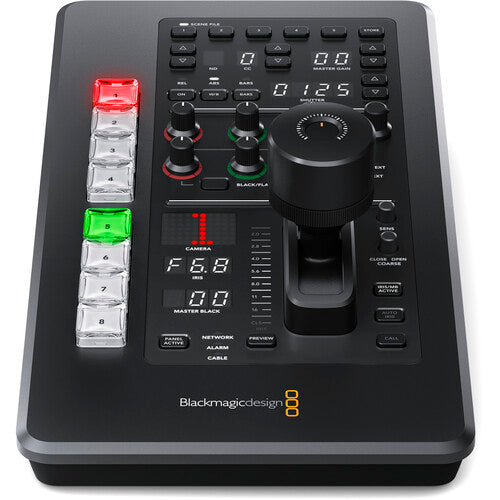

- 8 assignable NKK camera-select buttons with red/green on-air illumination
- 3-axis joystick for fine adjustment
- Dedicated controls for iris, pedestal, shutter, white balance, master gain, RGB balance

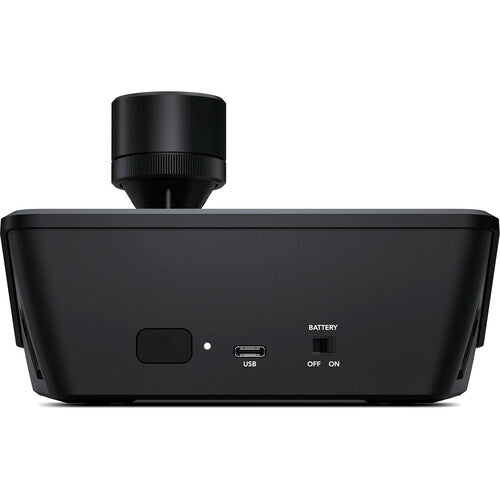

- Built-in battery — connects via USB-C or Bluetooth
- Zoom and focus not supported
Specifications
| Camera Capacity |
Up to 8 cameras |
| Compatible Cameras |
URSA Mini Pro, URSA Broadcast, Blackmagic Studio |
| Controls |
Iris, pedestal, shutter, white balance, gain, RGB balance |
| Joystick |
3-axis |
| Connectivity |
USB-C or Bluetooth |
| Power |
Built-in battery |
Best For: Shading operators matching exposure and colour across up to 8 Blackmagic cameras during a live multi-camera shoot.
