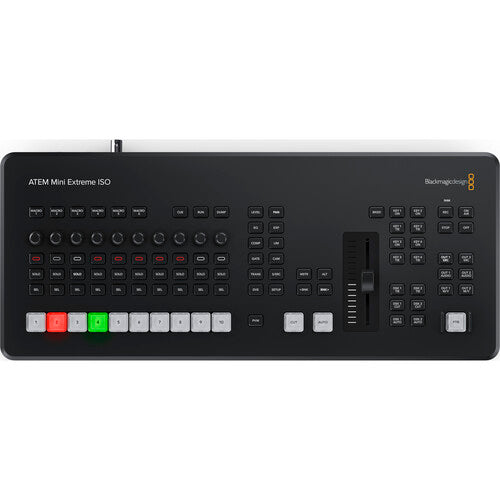

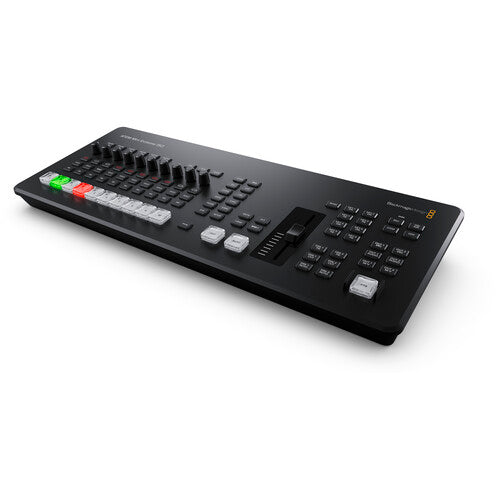

The Blackmagic ATEM Mini Extreme ISO G2 offers large source select buttons, tactile control, and multiple output options for versatile control over your audio mixing, recording, and streaming. With HDMI, XLR, MADI, and Ethernet connections, as well as USB and Thunderbolt options, this device allows for seamless integration with various video software for a professional and dynamic production experience.
Features
- 8-Channel HDMI Live Streaming Switcher
- All-New Design, Supports up to 1080p60
- 1G & 10G Ethernet Ports, CFexpress Slot
- 3 Independently Assignable HDMI Outputs
- 26-Input, 2-Channel Audio Mixer
- Input Frame Rate & Format Converter
- MADI Input, Analog Line/Mic XLR Inputs
- HD Multiview Output with up to 16 Views
- Dual USB-C & Thunderbolt Ports
- 4 Upstream, 2 Downstream Keyers
Specifications
| Available M/E Layers |
9 M/E |
| Effect Types |
2x DVE |
| Downstream Keys |
2x Chroma, Luma, DVE |
| Generators |
5x Pattern |
| Audio Mixing |
2-Channel Mixing |
| Processing |
1080p |
| Switching Type |
- |
| Latency |
- |
| Processing Resolution |
1080p |
| Color Processing |
- |
| Input |
|
| Number of Video Input Sources |
8 |
| Video Inputs |
8x HDMI |
| Input Video Format |
HDMI (10-Bit 4:2:2 YUV) |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080i at 50/59.94/60 fps |
|
720p at 50/59.94/60 fps |
| Audio Inputs |
2x XLR 3-Pin Mono Analog Female |
|
1x BNC Female |
| Embedded Audio Input |
HDMI: 2-Channel (per Input) |
| Output |
|
| Video Output Channels |
2 |
| Video Outputs |
3x HDMI Female |
| Output Video Format |
HDMI (10-Bit 4:2:2 YUV) |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output |
HDMI: 2-Channel |
| Multiview Output |
16-Way Multiview via HDMI |

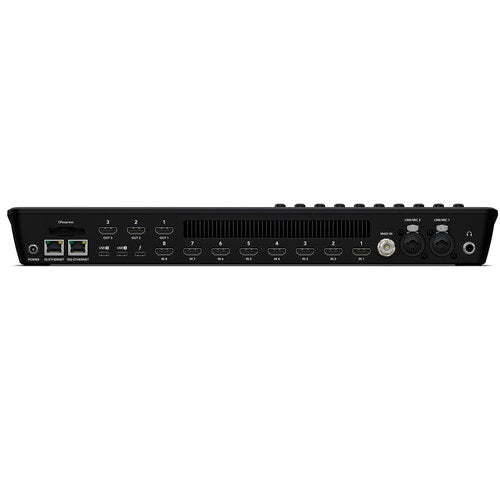

| Connectivity |
- |
| Other I/O |
2x RJ45 LAN Input/Output |
|
2x USB-C Output |
|
1x Thunderbolt 3 Output |
| Video Standard Compliance |
- |
| Display |
|
| Display Size |
- |
| Hardware |
- |
| OS Compatibility |
macOS 14 or Later / Windows 10 or Later |
| Processor |
Not Specified by Manufacturer |
| Wi-Fi |
No |
| Bluetooth |
No |
| Power I/O |
1x Barrel (12 VDC ) Input |
| Power Consumption |
- |
| Environmental |
- |
| Operating Temperature |
41 to 104°F / 5 to 40°C up to 70% Humidity |
| Storage Temperature |
14 to 140°F / -10 to 60°C |
| Operating Humidity |
- |
| General |
- |
| Rack Form Factor |
- |
| Dimensions |
16.3 x 7.35 x 1.97" / 41.4 x 18.67 x 5 cm |
| Weight |
1.86 kg |
What's in the box
- Blackmagic Design ATEM Mini Extreme ISO G2 Switcher
- 12 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
