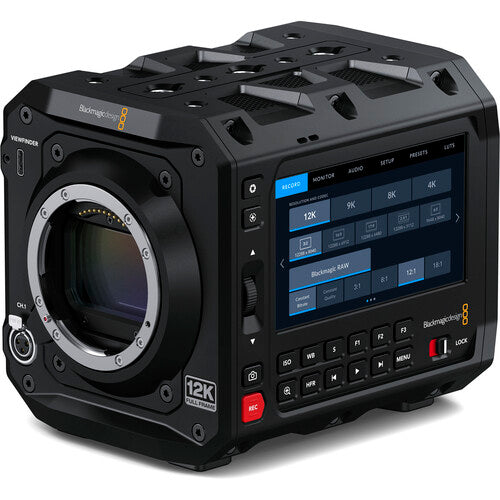

Introducing the PYXIS 12K Camera from Blackmagic. Featuring a full-frame 12K RGBW sensor and a compact design, it captures stunning colors and true-to-life skin tones. Enjoy the versatility of a Leica L lens mount, 16-stop dynamic range, and customizable side plates. Elevate your filmmaking with this powerful camera.
Features
- Large-Format Full-Frame 12K Sensor
- 16 Stops of Dynamic Range
- Blackmagic RAW up to 12K 3:2 Open Gate
- Built-In Optical Low-Pass Filter
- Two CFexpress Card Slots, USB-C Port
- Compact Form with Switchable Side Plates
- 4" HDR LCD Touchscreen
- 10GbE Ethernet Port, 10GHDBase-T Support
- HFR Button & Three Assignable Shortcuts
- Mini-XLR & 3.5mm Audio Inputs
Specifications
| Image Sensor |
35.64 x 23.32 mm (Large Format) CMOS |
| Sensor Resolution |
Effective: 98.8 Megapixel (12,288 x 8040) |
| Shutter Speed |
Electronic Rolling Shutter |
| Optical Zoom Ratio |
- |
| External Recording Modes |
SDI/BNC |
|
4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps |
|
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output |
- |
| IP Streaming |
Yes |
| Supported Control Protocols |
- |
| PoE Support |
- |
| Power Consumption |
- |
| Mounting |
- |
| Exposure Control |
- |
| Presets |
- |
| Range |
- |
| Lens Focal Length |
|
| Field of View |
|
| Maximum Aperture |
- |
| Minimum Focus Distance |
- |
| Pan/Tilt |
- |
| Interface |
|
| - Video I/O |
1x BNC (12G-SDI) Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
|
1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| -Other I/O |
1x USB-C Viewfinder Output |
|
1x USB-C Control/Data/Video |
|
1x BNC (Reference, Timecode) |
|
1x RJ45 (10 Gigabit Ethernet) |
| Built-In Microphone |
Stereo |
| Built-In Speaker |
- |
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
1.6 kg (Body Only) |
What's in the box
- Blackmagic Design PYXIS 12K Cinema Camera (Leica L)
- Len Mount Cap
- PYXIS Standard Mounting Plate
- PYXIS SSD Mounting Plate
- Power Supply with International Adapters (90W)
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
