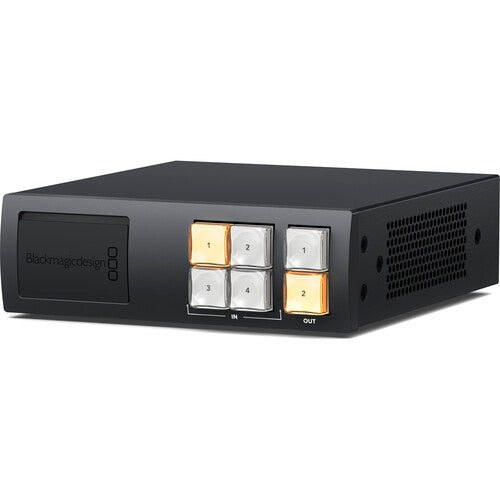

Elevate your live production game with the Blackmagic Videohub Mini 4x2 12G Router. Its compact size boasts four 12G-SDI inputs, four 12G-SDI loop outputs, and two 12G-SDI outputs for ultimate flexibility. Control via front panel or Ethernet connection for automated function. Plus, USB-C output allows for seamless live streaming.
Features
- 4 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- Front 12G-SDI Input, USB-C Output
- Front SDI Port Overrides Back Inputs
- Output Clean Switch Function
Specifications
| Inputs / Outputs |
|
| Video Inputs |
4x BNC (12G-SDI) |
|
1x BNC (12G-SDI) |
| Audio Inputs |
- |
| Video Outputs |
- |
| Audio Outputs |
|
| Other I/O |
- |
| Expansion Slots |
- |
| Format Support |
|
| Input Video Format |
|
| Output Video Format |
SDI |
|
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps |
|
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps |
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps |
|
DCI 2KPsF at 23.98/24/25/29.97/30 fps |
|
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps |
|
1080PsF at 23.98/24/25/29.97/30 fps |
|
1080i at 50/59.94/60 fps |
|
720p at 50/59.94/60 fps |
|
576i / 625 lines at 50 fps |
|
480i / 525 lines at 59.94 fps |
| Embedded Audio |
SDI |
| Standards |
|
| Video Standard Compliance |
|
| Power |
|
| Power I/O |
1x Barrel (12 VDC ) Input |
|
1x IEC C13 (100 to 240 VAC ) Input |
| PoE Support |
|
| Power Consumption |
- |
| Environmental |
|
| Operating Temperature |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Temperature |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
| Operating Humidity |
- |
| General |
|
| Dimensions |
6.82 x 5.51 x 1.82" / 17.32 x 14 x 4.62 cm |
| Weight |
917 g |
What's in the box
- Blackmagic Design Videohub Mini 4x2 12G Router
- Limited 1-Year Manufacturer Warranty
