Description

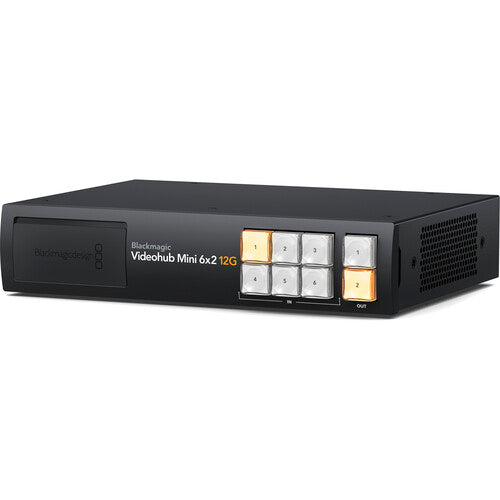

Introducing the Blackmagic Videohub Mini 6x2 12G, the ultimate device for live production flexibility. This ultracompact router features six 12G-SDI inputs, six 12G-SDI loop outputs, and two 12G-SDI outputs, allowing you to easily control your I/O ports with front push buttons or Ethernet connection. The front panel also includes a 12G-SDI input, 12G-SDI output, and a USB-C output which functions as a webcam for seamless live streaming. Upgrade your production game today.
Features
- 6 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
- Dedicated Reference I/O
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- Front 12G-SDI I/O, USB-C Output
- Front SDI Ports Override Back Panel I/O
- Clean Switch Function
Specifications
| Inputs / Outputs | |
| Video Inputs | 6x BNC (12G-SDI) |
| 1x BNC (12G-SDI) | |
| Audio Inputs | |
| Video Outputs | |
| Audio Outputs | |
| Other I/O | 1x USB-C Output |
| 1x BNC Blackburst, Reference, Tri-Level Sync Input | |
| 1x BNC Blackburst, Reference, Tri-Level Sync Output | |
| Expansion Slots | - |
| Format Support | |
| Input Video Format | SDI |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1080i at 50/59.94/60 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Output Video Format | SDI |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1080i at 50/59.94/60 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Embedded Audio | SDI |
| Standards | |
| Video Standard Compliance | |
| Power | |
| Power I/O | 1x Barrel (12 VDC ) Input |
| 1x IEC C13 (100 to 240 VAC ) Input | |
| PoE Support | - |
| Power Consumption | Device: 18.5 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Temperature | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Operating Humidity | - |
| General | |
| Dimensions | 8.27 x 6.82 x 1.82" / 21.01 x 17.32 x 4.62 cm |
| Weight | 1.32 kg |
What's in the box
- Blackmagic Design Videohub Mini 6x2 12G Router
- Limited 1-Year Manufacturer Warranty
