Introducing the CV630-IP 4K PTZ Camera from Marshall Electronics. Capture every detail with its high-quality 8MP sensor and 25x optical zoom lens. With versatile connectivity options and advanced control features, this camera is perfect for professional conferencing. Experience the elegance and sophistication of this top-of-the-line camera.
Features
- Up to UHD 4K Resolution
- 8MP 1/2.5" Sensor
- 30x Optical Zoom, 70° Angle of View
- Ethernet, 3G/HD-SDI, and HDMI Outputs
- 35mm Equivalent 4.6 to 135mm Lens
- IR Remote Select
Specifications
| Image Sensor |
1/2.5"-Type CMOS |
| Sensor Resolution |
Effective: 8 Megapixel |
| Shutter Speed |
1/10000 to 1 Second |
| Optical Zoom Ratio |
30x |
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160
1920 x 1080p
1280 x 720 |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264, H.265, MPEG-TS, RTMP, RTSP, SRT
3840 x 2160 (2.0 to 20.00 Mb/s)
1920 x 1080 (2.0 to 20.00 Mb/s)
1280 x 720 (0.5 to 5.0 Mb/s) |
| Supported Control Protocols |
FreeD
IP
IR
Pelco-D
Pelco-P
RS-232
RS-422
VISCA |
| PoE Support |
PoE+ 802.3at |
| Power Consumption |
30 W |
| Mounting |
1x 1/4"-20 Female for Tripod
7x M3 Female for Ceiling |
| Exposure Control |
|
| Presets |
ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Range |
1700 to 10,000K |
| Lens Focal Length |
4.6 to 135mm |
| Field of View |
70° |
| Maximum Aperture |
f/1.6 to 3.5 |
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 5 to 300°/s
Tilt: 120° (-30 to 90°) at 5 to 300°/s |

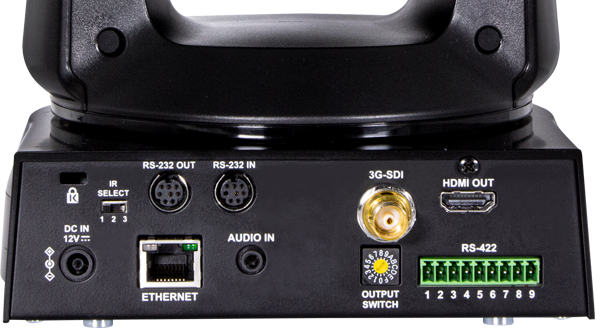

| Interface |
|
| - Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 1.4 Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input (Shared with Video Input)
1x Mini-DIN 8-Pin (RS-232) Control Output (Shared with Video Output)
1x Block 9-Pin (RS-422) Control Input/Output
1x RJ45 (LAN) Control (Shared with Video Output) |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
Kensington Lock Slot |
| Weight |
2 Kg |
What's In The Box
- Marshall Electronics CV630-IPW Broadcast Pro AV UHD 4K IP PTZ Camera (Black)
- Remote Control
- Power Cord
- Power Adapter
- RS-422 Connector (Removable)
- Metal Installation Plate A
- Metal Installation Plate B
- Set of M3 Screws
- Limited 1-Year Manufacturer Warranty
