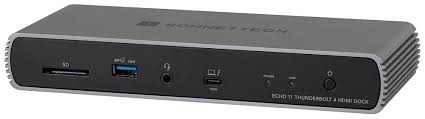

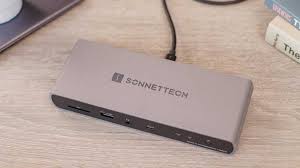

Sonnet Echo 11Thunderbolt 4 Port 8K Dock

Upgrade your workstation with the Sonnet Echo 11 Thunderbolt 4 Dock. Connect to your laptop or computer via Thunderbolt 4 and enjoy up to 90W of charging power. With three Thunderbolt 4 ports and three USB 3.2 Gen 2 ports, you can easily expand your ports and connect multiple peripherals. Plus, the SD card slot and headphone combo jack add even more convenience to your setup. Elevate your productivity in style.

Key Features:

• Instant access – plug peripherals into the Echo 11 and connect your computer to the dock with the included Thunderbolt 4 cable.

• Includes four Thunderbolt 4, three USB 3.2 Gen 2 Type A, and one USB 2.0 Type A (charging) ports; RJ45 Gigabit Ethernet; 3.5mm combo audio; and fast UHS-II SD card slot.

• Connects three Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.

• Three USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super fast USB NVMe SSDs at up to full speed.

• Depending on your computer, supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display (see Displays Compatibility PDF).

• Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt compatible adapter (sold separately)

• Provides up to 90W through the included Thunderbolt 4 cable to power and charge your laptop.

• Front panel USB port charges an iOS device or other device that charges via USB.

• Compatible with SD, SDHC, and SDXC memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards.

• Supports all M series Macs.
• Supports Thunderbolt 3 Intel Macs; all Thunderbolt 4 and USB4 Windows computers; and late model Thunderbolt 3 Windows computers.

• Supports Chromebook computers with Thunderbolt 4 or USB4 ports.

• Supports all M series iPad Pro tablets.






  Specification:







• Compatibility
  Mac Compatibility	Mac (M1/M2) supports only one display
  	Mac (M1/M2 Pro, M1/M2 Max, and M1/M2 Ultra) supports two displays, including two Apple Pro Display XDRs
  	Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 5K
  	macOS 13 (Ventura), 12 (Monterey), and 11 (Big Sur)
  Windows Compatibility	Windows computer with a Thunderbolt 4 port or USB4 port(4)
  	Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
  	Windows 11 and 10
  Chromebook Compatibility	Chromebook with a Thunderbolt 4 port or USB4 port(4)
  iPad Pro Compatibility	M1/M2 iPad Pro supports only one mirrored monitor
  Hardware
  HardwareHardware
  Part Number	ECHO-DK11-T4
  Warranty	2-year
  Form Factor	Thunderbolt dock

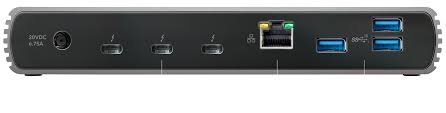

  External Connectors	Four Thunderbolt 4 ports
  	Three USB 3.2 Gen 2 (10Gbps) Type A ports
  	One USB 2.0 Type A charging port
  	One RJ45 (Gigabit Ethernet) port
  	One 3.5 mm combination audio headphone/microphone jack
  	One SD 4.0 card slot
  	One power connector
  Power Delivery	Provides laptop charging up to 90W(1)
  Cables Supported	Any Thunderbolt 4 cable (0.7-meter included)
  	100W 0.2, 0.5, 0.7, 0.8-meter Thunderbolt 3 cables
  Cables Not Supported	60W Thunderbolt 3 cables
  	1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables
  Connectivity	With USB-C connector
  Peripherals Supported	60W Thunderbolt 3 cables
  	1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables




  What is in the box?

  • Sonnet Echo 11 Thunderbolt 4 Dock

  • Power Adapter

  • Power Cord

  • 2.3' (0.7 m) Thunderbolt 4 Cable

  • Lifetime Technical Support

  • Limited 2-Year Manufacturer Warranty
