Elevate your workstation with the Sonnet Echo 13 Thunderbolt 5 SSD Dock featuring a built-in 1TB Kingston PCIe 4.0 NVMe SSD. Delivering blazing speeds up to 4000 MB/s and seamless connectivity via Thunderbolt 5, it supports 140W charging while consolidating multiple ports including three Thunderbolt 5, three USB-A 3.2 Gen 2 charging, one USB-A 3.2 Gen 1, and a 2.5 Gigabit Ethernet RJ45 port. Designed for Windows, Mac, and Chromebook devices, this dock streamlines your setup, reduces cable clutter, and enhances network performance with a single cable solution.
Features
- Thunderbolt 5 1TB NVMe SSD
- Write Speeds up to 4000 MB/s
- 4 x Thunderbolt 5 Ports
- 3 x USB-A 3.2 Gen 2 10 GB/s Charge Ports
- 1 x USB-A 3.2 Gen 1 5 GB/s Port
- 1 x RJ45 2.5 Gigabit Ethernet Port
- 3.5mm Combination Audio Jack
- UHS-II SD Card Slot
- UHS-II microSD Card Slot
- Windows, Mac & Chromebook Compatible
Specifications
| USB I/O |
1x USB-C (Thunderbolt 5) / Supports Video Alt Mode and 60 W Power Delivery |
|
1x USB-C (Thunderbolt 5) / Supports 15 W Output |
|
1x USB-A 3.1/3.2 Gen 2 / Supports 7.5 W Output |
|
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Video I/O |
- |
| Max Resolution |
3 Displays Supported: |
|
7680 x 4320 at 240 Hz (Single) |
|
7680 x 4320 at 240 Hz (Dual) |
|
3840 x 2160 at 240 Hz (Triple) |
| Audio I/O |
3.5 mm Headphone/Microphone Combo Jack |
| Network I/O |
1x RJ45 (2.5 Gb/s) |
| Host Connection |
USB-C (Thunderbolt 5) up to 140 W via Built-In Connecto |
| Power Source |
Included AC Adapter with Barrel Connector: 100 to 240 VAC, 50/60 Hz (180 W) |
| Media Card Reader |
1x SDXC (UHS-II [312 MB/s]) |
|
1x microSDXC (UHS-II [312 MB/s]) |
| Wireless Charging |
No |
| OS Compatibility |
Computer: Windows 11 or Later / macOS 15 or Later / Chrome OS |
|
Mobile: iPadOS Only |
| Operating Conditions |
0 to 35°C |
| Storage Conditions |
- |
| Lock Slot |
No |
| Cable Length |
0.8 m |
| Weight |
- |

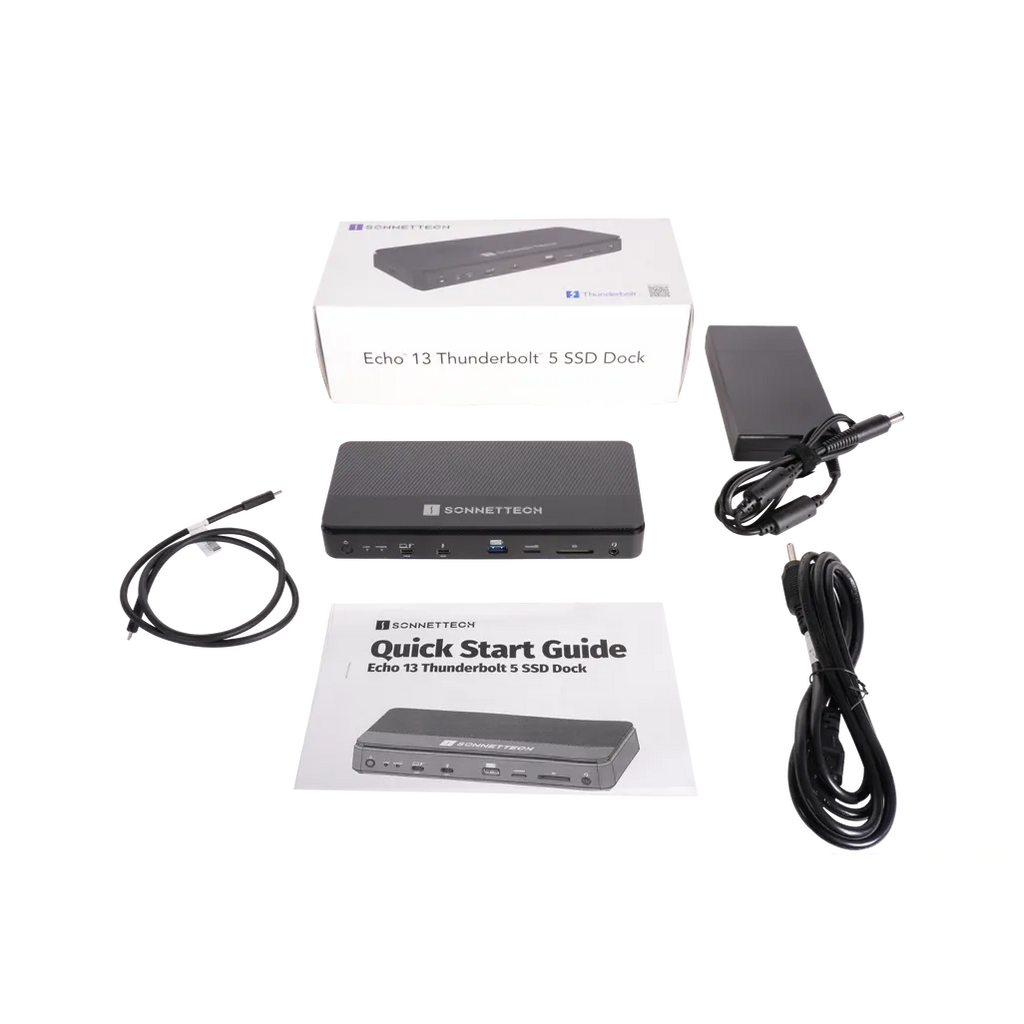

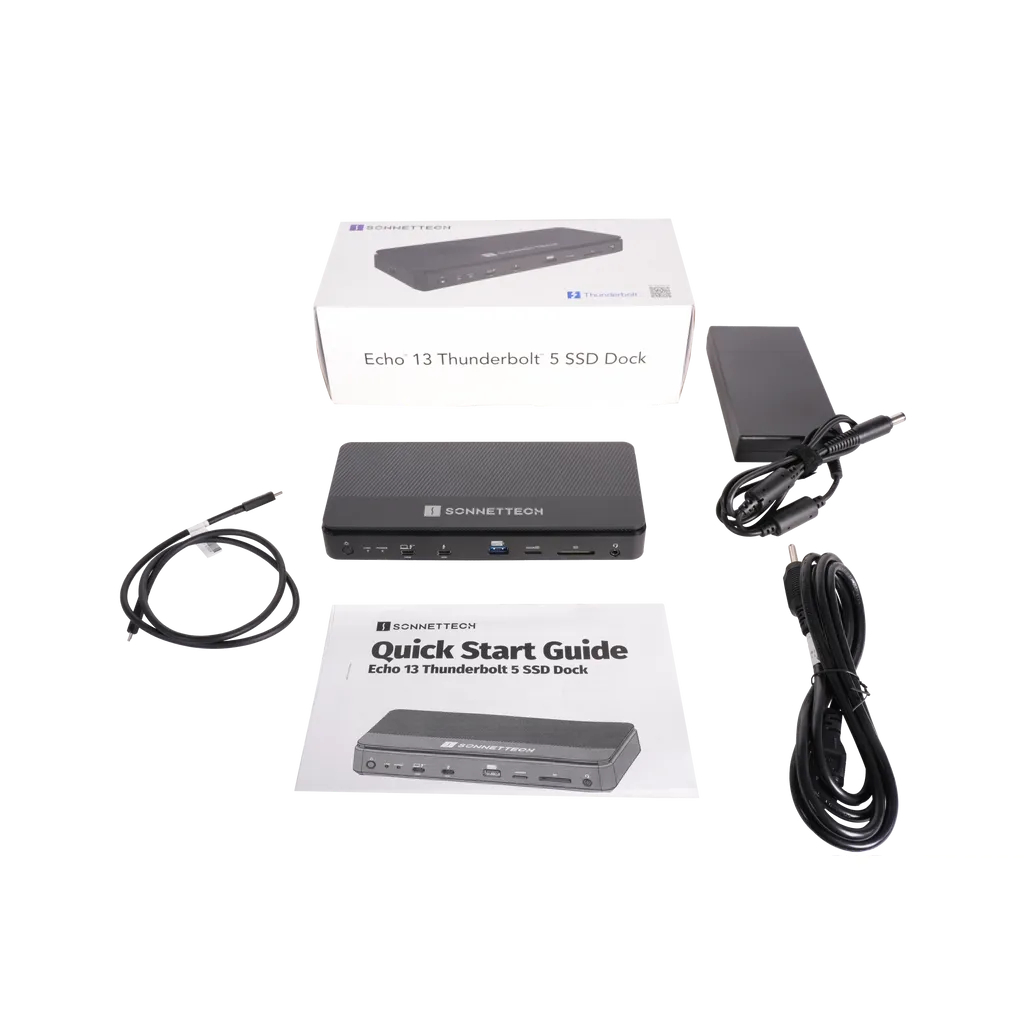

What's in the box
- Sonnet Echo 13 Thunderbolt 5 SSD Dock (1TB)
- Power Adapter and Cable
- Thunderbolt 5 Cable (2.6')
- Limited 2-Year Manufacturer Warranty
