Experience the ultimate connectivity and productivity with the Sonnet Echo 20 Thunderbolt 4 Superdock. Boasting a built-in HDMI 2.1 port for stunning 8K @ 60 Hz display, three Thunderbolt 4 ports for seamless connection to peripherals, and four USB-A and USB-C ports for multi-device support and charging. Upgrade your setup with ease and efficiency.
Features
- 1 x Thunderbolt 4 Port (100W Charging)
- 2 x Thunderbolt 4 Port

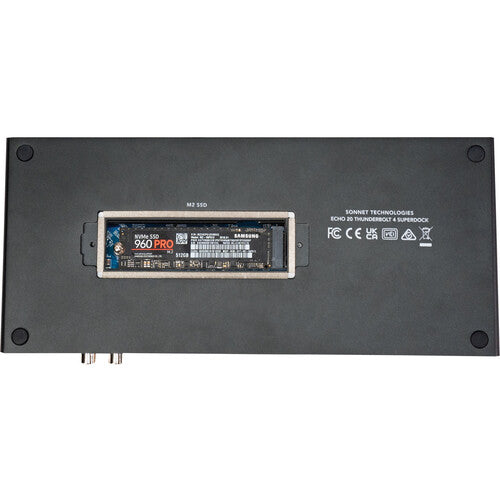

- 1 x M.2 SSD Slot
- 1 x HDMI 2.1 Port
- 4 x USB-C 3.2 Gen 2 Port
- 4 x USB-A 3.2 Gen 2 Port
- 1 x SD 4.0 Card Slot (UHS-II)
- 1 x 2.5 GbE RJ45 LAN Jack
- 1 x 3.5mm Combo Audio | 1 x 3.5mm Mic
- 2 x 3.5mm Audio Line Out Jack
Specifications
| USB I/O |
3x USB-C (Thunderbolt 4) |
|
4x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W Output |
|
4x USB-A 3.1/3.2 Gen 2 |
| Video I/O |
1x HDMI 2.1 |
| Max Resolution |
2 Displays Supported: |
|
7680 x 4320 at 60 Hz (Single) |
|
6016 x 3384 (Dual) |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
|
1x 1/8" / 3.5 mm Microphone Input |
|
2x 1/8" / 3.5 mm Line-Out |
| Network I/O |
1x RJ45 (2.5 Gb/s) |
| Host Connection |
Mini DisplayPort (Thunderbolt) Supporting USB Power Delivery up to 100 W via Detachable Cable |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
|
1x 1/8" / 3.5 mm Microphone Input |
|
2x 1/8" / 3.5 mm Line-Out |
| Network I/O |
1x RJ45 (2.5 Gb/s) |
| Operating Conditions |
32 to 95°F / 0 to 35°C |
| Wireless Charging |
No |
| Power Source |
Included AC Adapter 100 to 240 VAC, 50/60 Hz (150 W) with Unspecified Barrel Diameter Connector |
| Media Card Reader |
1x SDXC (UHS-II [312 MB/s]) |
| Lock Slot |
Yes, Kensington |
| Certifications |
- |
| Cable Length |
- |
| Weight |
1.51 kg |
What's in the box
- Sonnet Echo 20 Thunderbolt 4 SuperDock
- Power Adapter
- Power Cord
- Thunderbolt 4 Cable (2.3')
- ThunderLok 4 Thunderbolt Connector Retainer Clip
- Limited 2-Year Manufacturer Warranty
