The Hollyland Mars 4K Wireless Video Receiver delivers professional-grade wireless video transmission with exceptional reliability. Engineered for demanding production environments, this receiver offers dual HDMI and SDI outputs, enabling seamless integration into diverse workflows. Its standout 66 ms latency ensures real-time monitoring and synchronization, while the robust 450-foot line-of-sight range provides unparalleled flexibility on set. The integrated frequency scanner automatically identifies optimal transmission channels, eliminating interference concerns. Housed in a corrosion-resistant chassis with an intuitive touchscreen interface, the receiver combines durability with user-centric design. Multiple power options—USB-C, DC adapter, or L-series batteries—accommodate any production scenario, making this a versatile solution for broadcast, cinema, and live event professionals.
Features
- Professional Video Receiver
- Receive up to UHD 4K30 Video up to 450'
- SDI & HDMI Outputs, 5 GHz Frequency Band
- Smart Channel Scanning, Touchscreen LCD
- Low 66 ms Latency, 12 Mb/s Data Rate
- DC, L-Series & USB-C Power Options
Specifications
| Video I/O |
1x HDMI Output |
|
1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI/SDI |
| Latency |
66 ms |
| Video Format |
HDMI |
| UHD 4K: 30 |
| 1080p: 60/30/24 |
| SDI |
| 1080p: 60/59.94/30/29.97/24/23.98 |
| Battery |
Interchangeable Mount (No Plate Included) |
| Power Consumption |
8.5 W |
| Antenna I/O |
2x RP-SMA Male |
| Video I/O |
1x HDMI Output |
| 1x BNC (3G-SDI) Output |
| Audio I/O |
No |
| Power I/O |
1x Barrel Input |
| 1x USB-C Input |
| Encryption |
|
| Wireless Range |
137.2 m (Line-of-Sight) |
| Channel Bandwidth |
20 MHz |
| Frequency Range |
US: 5.1 to 5.8 GHz |
| Latency |
66 ms |
| RF Sensitivity |
-90 dBm |
| Wi-Fi |
Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Bluetooth |
No |
| Mobile App Compatible |
Yes: Android & iOS |
| Cellular Support |
No |
| Video Format |
HDMI |
| UHD 4K: 30 |
| 1080p: 60/30/24 |
| SDI |
| 1080p: 60/59.94/30/29.97/24/23.98 |
| Wireless Video Compression |
-
|
| Timecode Support |
Yes |
| Input Power |
6 to 16 VDC |
| Battery |
Interchangeable Mount (No Plate Included) |
| Power Consumption |
8.5 W |
| Tripod/Accessory Mounting |
Bottom |
| 1x 1/4"-20 Female |
| Status Display |
Yes |
| Environmental Resistance |
No |
| Operating Conditions |
10 to 60°C |
| Storage Conditions |
-40 to 60°C |
| Material of Construction |
|
| Weight |
223.00 g, Excluding Antenna |

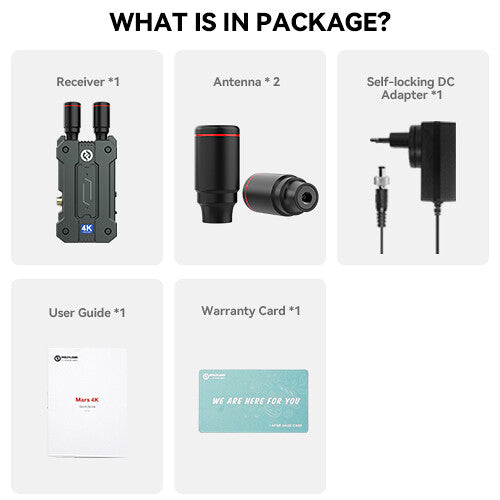

What's in the box
- Hollyland Mars 4K Wireless Video Receiver
- 2 x Antenna
- Locking DC Adapter
- Limited 1-Year Manufacturer Warranty
