Description

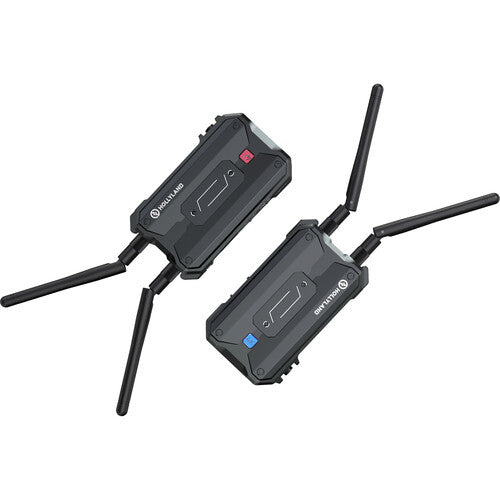

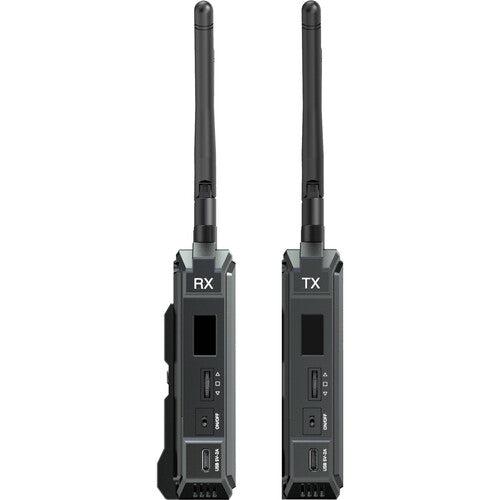

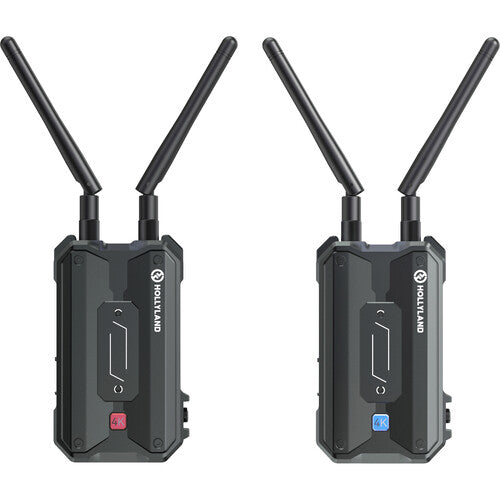

The Hollyland Pyro H 4K HDMI Wireless Video Transmission System delivers professional-grade wireless video distribution for demanding production environments. This comprehensive solution features a transmitter with HDMI input and loop output, paired with a dedicated receiver, enabling seamless 4K30 signal transmission at remarkably low 60 ms latency. Achieve reliable line-of-sight connectivity up to 1300 feet in standard mode, or extend broadcast capabilities to four receivers and two mobile devices at 650 feet. The complete package includes five antennas, USB-A to USB-C adapter, and adjustable shoe mount for flexible deployment across your production setup.
Features
- Wireless Transmitter and Receiver Set
- Transmit UHD 4K30 Video up to 1300'
- HDMI Input, Output, and HDMI Loop Output
- 2.4 and 5 GHz Frequency Bands
- Supports UVC Plug-and-Play for Streaming
- 650' Transmission in Broadcast Mode
- Smart Channel Scanning, Bright LCD
- Low 60 ms Latency, 12 Mb/s Bit Rate
- DC, L-Series, and USB-C Power Options
Specifications
| Video I/O | Transmitter: 1x HDMI 1.4b Input |
| Transmitter: 1x HDMI 1.4b Output | |
| Receiver: 1x HDMI 1.4b Output | |
| Embedded Audio | HDMI |
| Latency | 60 ms |
| Video Format | HDMI |
| UHD 4K: 30/25/24 | |
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Transmitter: 7 W | |
| Power Consumption | Receiver: 4 W |
| Antenna I/O | Transmitter/Receiver: 2x RP-SMA Female |
| Transmitter: 1x HDMI 1.4b Input | |
| Video I/O | Transmitter: 1x HDMI 1.4b Output |
| Receiver: 1x HDMI 1.4b Output | |
| Embedded Audio | HDMI |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x Barrel Input |
| Encryption | No |
| Wireless Range | 1300' / 396.2 m (Line-of-Sight) |
| 650' / 198.1 m (Line-of-Sight) | |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.15 to 5.25 GHz |
| Latency | 60 ms |
| RF Sensitivity | -85 dBm |
| Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Video Format | HDMI |
| UHD 4K: 30/25/24 | |
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 6 to 16 VDC |
| Battery | Transmitter/Receiver: 1x L-Series Mount on Fixed Plate |
| Power Consumption | Transmitter: 7 W |
| Receiver: 4 W | |
| Tripod/Accessory Mounting | Transmitter/Receiver, Bottom |
| 1x 1/4"-20 Female | |
| Status Display | On Transmitter & Receiver |
| Environmental Resistance | No |
| Operating Conditions | - |
| Storage Conditions | - |
| Material of Construction | - |
| Weight | Transmitter/Receiver: 6.77 oz / 192.00 g |

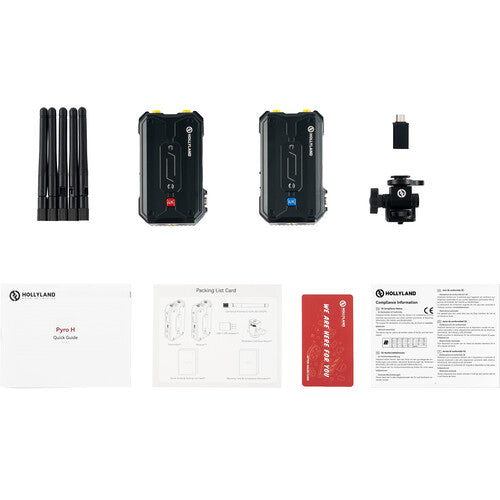

What's in the box
- Hollyland Pyro H 4K HDMI Wireless Video Transmission System
- Hollyland Pyro H 4K HDMI Wireless Video Receiver
- Hollyland Pyro H 4K HDMI Wireless Video Transmitter
- 5 x Cylindrical Antenna (2.4/5 GHz)
- Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
- USB-A to USB-C Adapter
- Limited 1-Year Manufacturer Warranty
