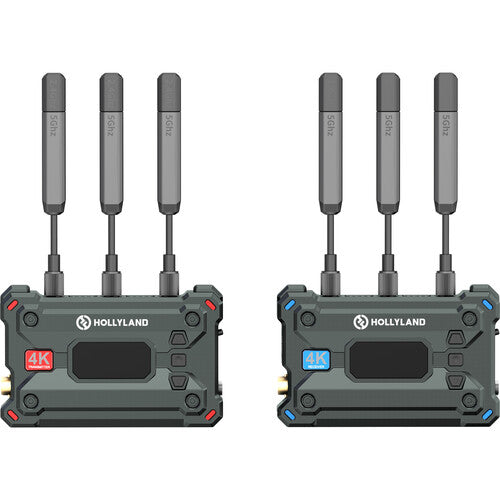

The Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter delivers professional-grade wireless video transmission with exceptional range and minimal latency. Featuring dual HDMI and SDI inputs, this system transmits crystal-clear 4K video up to 1300 feet in line-of-sight mode, with 50 ms latency ensuring real-time performance for live productions. The USB-C powered design enables seamless plug-and-play integration with computers for streaming and conferencing workflows. Built-in frequency scanning automatically selects optimal transmission channels, while broadcast mode supports simultaneous connection to four receivers and two mobile devices at 650 feet. Engineered for demanding broadcast and production environments, the Pyro S combines versatility, reliability, and professional-caliber performance.
Features
- Professional Video Transmitter
- Transmit UHD 4K30 Video up to 1300'
- HDMI and SDI Inputs
- 2.4 and 5 GHz Frequency Bands
- Supports UVC and RTMP for Streaming
- 650' Transmission in Broadcast Mode
- Smart Channel Scanning, Bright LCD
- Low 50 ms Latency, 12 Mb/s Bit Rate
- DC, L-Series and USB-C Power Options
Specifications
| Video I/O |
1 x HDMI 1.4b Input |
| 1 x BNC (3G-SDI) Input |
| Embedded Audio |
HDMI/SDI |
| Latency |
50 ms |
| Video Format |
HDMI |
| UHD 4K: 30/29.97/25/24/23.98 |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| 1080i: 60/59.94/50 |
| 720p: 60/59.94/50 |
| SDI |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| 1080i: 60/59.94/50 |
| 720p: 60/59.94/50 |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
11 W |
| Antenna I/O |
3x RP-SMA Male |
| Embedded Audio |
HDMI/SDI |
| Audio I/O |
No |
| Power I/O |
1x Barrel Input |
| 1x USB-C Input |
| Encryption |
No |
| Wireless Range |
1300' / 396.2 m (Line-of-Sight) |
| 650' / 198.1 m |
| Channel Bandwidth |
40 MHz, 20 MHz |
| Frequency Range |
5.15 to 5.85 GHz |
| 2.412 to 2.484 GHz |
| Latency |
50 ms |
| RF Sensitivity |
-85 dBm |
| Wi-Fi |
Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Bluetooth |
No |
| Mobile App Compatible |
Yes: Android & iOS |
| Cellular Support |
No |
| Wireless Video Compression |
Uncompressed |
| Timecode Support |
Yes |
| Input Power |
6 to 16 VDC |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
11 W |
| Tripod/Accessory Mounting |
Bottom |
| 1x 1/4"-20 Female |
| Status Display |
Yes |
| Environmental Resistance |
No |
| Operating Conditions |
14 to 113°F / -10 to 45°C |
| Storage Conditions |
-40 to 140°F / F104-40 to 60°C |
| Material of Construction |
Magnesium |
| Weight |
207.00 g |
What's in the box
- Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
- 3 x Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
- Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
- USB-C OTG Adapter
- Limited 1-Year Manufacturer Warranty
