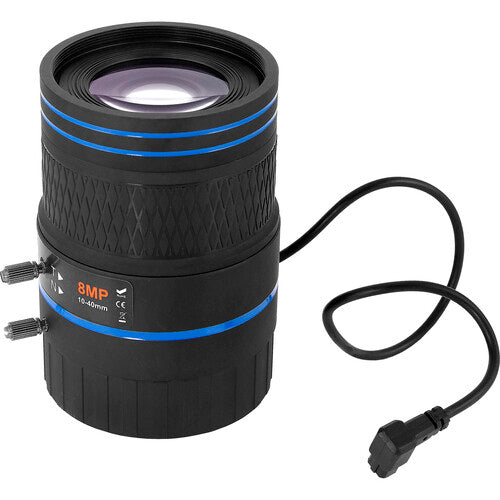

The Marshall 10-40mm F1.4-F1.7 CS Mount Auto-Iris Zoom Lens is designed for 8MP 4K/UHD cameras with a 1/1.7" sensor. Offering a versatile 10-40mm focal range and an approximate 28-8° angle of view, this varifocal lens delivers precise manual focus and zoom control, secured by locking screws. Its DC auto iris ensures optimal exposure in varying lighting conditions, making it ideal for high-resolution surveillance and professional imaging applications.
Features
- Compatible with 8MP Cameras
- CS Mount
- Compatible with 1/1.7" Sensors
- 10-40mm Focal Length
- 43.5 to 13.4° Diagonal Field of View
- DC Auto Iris
- Manual Zoom & Focus with Locking Screws
Specifications
| Lens Mount |
CS |
| Sensor Compatibility |
1/1.7" |
| Focal Length |
10 to 40mm |
| Back Focal Length |
10.56 to 13.5mm |
| Maximum Aperture |
- |
| Angle of View |
1/1.7" Sensor |
|
Horizontal: 27.8 to 8.6° |
|
Vertical: 15.6 to 4.8° |
|
Diagonal: 43.5 to 13.4° |
| Minimum Focus Distance |
From Front of Lens: 0.5 m |
| Focus Type |
Manual Focus |
| Iris Type |
DC Auto |
| IR Corrected |
- |
| Weight |
- |
What's in the box
- Marshall Electronics CS-1040-8MP CS-Mount 10-40mm Varifocal Lens with Long Cable
- Limited 1-Year Manufacturer Warranty
