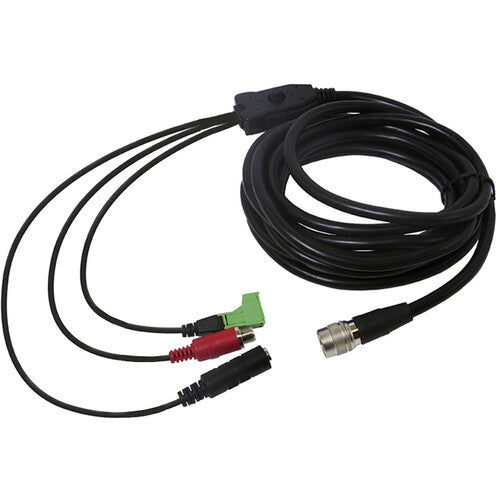

The Marshall CV-BSE-10FT 10ft Hirose Breakout Cable enhances broadcast POV cameras by providing seamless integration of audio, power, and communication inputs. Designed for models CV503 to CV508, CV344 to CV348, and CV355-10X, it features a four-direction joystick for intuitive OSD menu control. The 12-pin Hirose connector splits into a 12V barrel jack, RS-485 communication input, and a TRS microphone/line-level input, ensuring streamlined operation and reliable connectivity for professional broadcast environments.
Features
- For CV503, 504, 506, 508, 344, 346, 348
- 12-Pin Male Hirose Connector
- 12V, 2.1mm Center Contact Barrel Jack
- TRS Mic and Line-Level Input
- RS-485 Input
- Attached 4-Direction OSD Menu Controller
Specifications
| Compatibility |
Marshall Electronics CV503 / CV504 / CV506 / CV508 / CV344 / CV346 / CV348 |
| Connector 1 |
1x 12-Pin Hirose Male |
| Connector 2 |
1x 12 V Power 2.1mm (Center Contact) Female |
|
1x RS-485 Female |
|
1x TRS Mic/Line-Level Input Female |
| Color |
Black |
| Cable Length |
3 m |
| Weight |
- |
What's in the box
- Marshall Electronics 12-Pin Hirose Breakout Cable for Select POV Broadcast Cameras (10')
- Limited 1-Year Manufacturer Warranty
