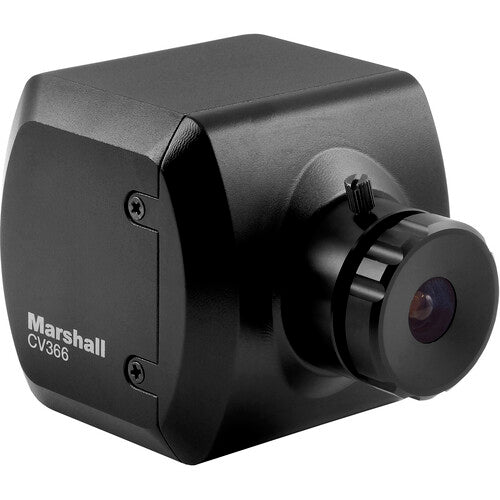

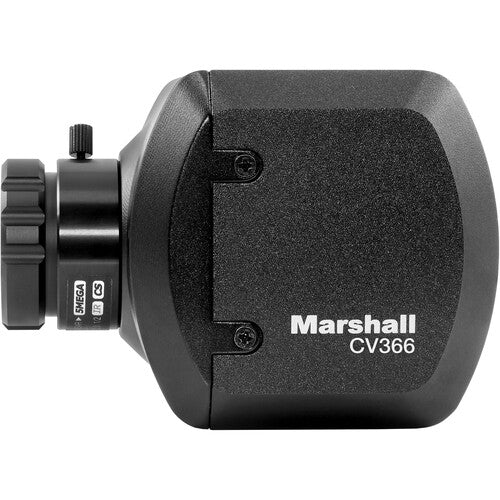

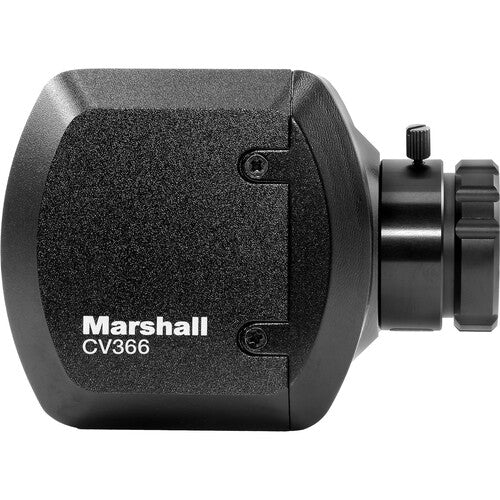

Capture stunning 1080p60 HD video with the Marshall CV366 Genlock Compact Broadcast Camera, designed for professional conference, live broadcast, and event settings. Equipped with a 1/2.8" CMOS sensor, it delivers clear images even in low-light conditions. The tri-level Genlock sync enables seamless integration of multiple cameras with minimal latency, ensuring smooth transitions. Featuring a versatile CS/C mount for interchangeable lenses, the camera offers 3G-SDI and HDMI outputs for flexible connectivity. Control is streamlined via RS-485 input on the included Hirose 12-pin breakout cable, which also supports audio input and power, allowing precise adjustments through dedicated software.
Features
- Up to 1080p60 Resolution
- 1/2.8" CMOS Sensor
- 3G-SDI & HDMI Video Output
- Genlock Tri-Level Sync
- Low Latency

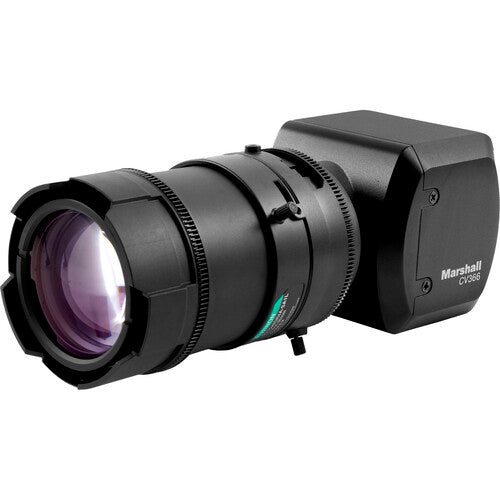

- CS/C Mount
- RS-485 Control
- Hirose 12-Pin Breakout Cable
- Includes 12 VDC Power Supply
- Durable Aluminum Alloy Construction
Specifications
| Compatibility |
|

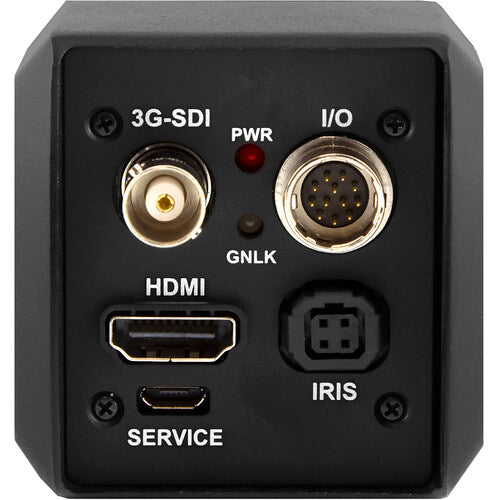

| Inputs/Outputs |
|
| -USB I/O |
- |
| -Video I/O |
1 x BNC 3G-SDI |
|
1 x HDMI Type-A |
| -Audio I/O |
- |
| -Other I/O |
1 x Mini USB Firmware |
|
1 x Hirose 12-Pin (Genlock, Control, Audio, and Power) |
|
1 x Auto Iris 4-Pin |
| Wireless |
- |
| Power Source |
- |
| Power Consumption |
6 W |
| Mounting |
- |
| Color |
Black |
| Material of Construction |
Aluminum Alloy |
| Weight |
NSBM |
What's in the box
- Marshall Electronics CV366 Compact Genlock Camera (3G-SDI, HDMI)
- C-Mount Lens Adapter
- Camera Breakout Cable
- 12 VDC Power Supply
- Limited 2-Year Manufacturer Warranty
