The Marshall CV368 is a compact broadcast camera designed for professional environments, delivering crisp 1080p resolution at up to 60 progressive frames per second. Equipped with a 3.2MP CMOS sensor and a global shutter, it captures motion without distortion, ideal for live broadcasts, corporate events, and more. Featuring 3G-SDI and HDMI outputs alongside a versatile C/CS lens mount, it supports a wide range of lenses. Advanced image tools such as genlock, image flip, digital noise reduction, and auto white balance ensure precise and reliable performance in demanding production settings.
Features
- 1/1.8" 3.2MP Sony Exmor Sensor
- Accepts C/CS Mount Lenses
- Capture up to 1080p60 Video
- Global Shutter, Tri-Level Genlock Sync

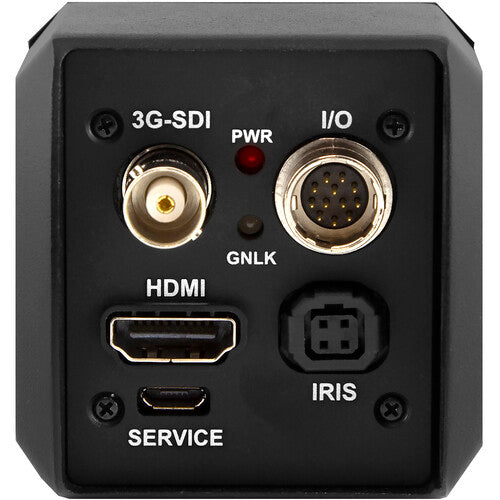

- 3G/HD-SDI & HDMI Outputs
- Digital Image Stabilization, AWB
- Image Flip/Mirror, Digital Zoom
- Mic/Line-Level Audio Input Selection
- RS-485 Control
Specifications
| Compatibility |
- |
| Inputs/Outputs |
|
| -USB I/O |
- |
| -Video I/O |
1x 3G-SDI & 1x HDMI |
| -Audio I/O |
- |
| -Other I/O |
1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock |
| Wireless |
- |
| Power Source |
- |
| Power Consumption |
6 W |
| Mounting |
- |
| Color |
Black |
| Material of Construction |
Aluminum |
| Weight |
1Kg |
What's in the box
- Marshall Electronics CV368 Compact 1080p 3G-SDI/HDMI Camera with Global Shutter & Genlock
- Camera Breakout Cable
- Limited 1-Year Manufacturer Warranty
