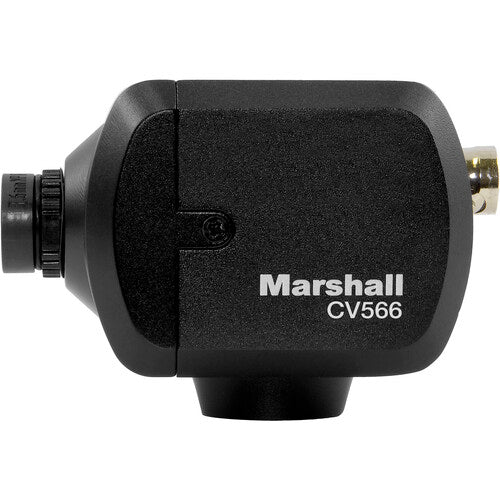

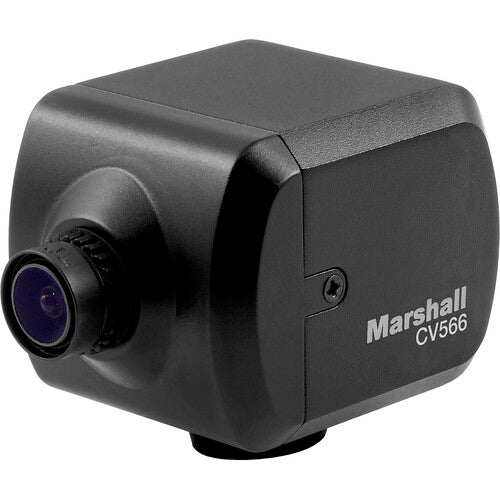

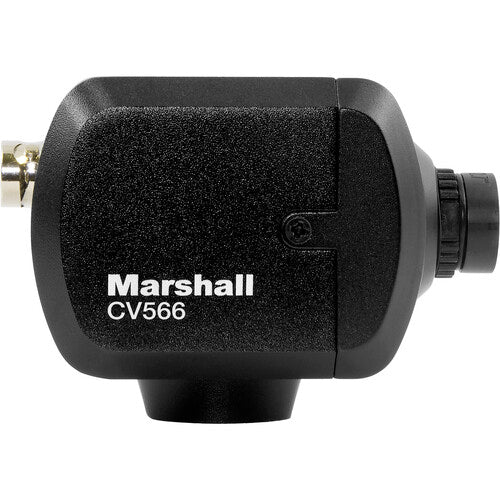

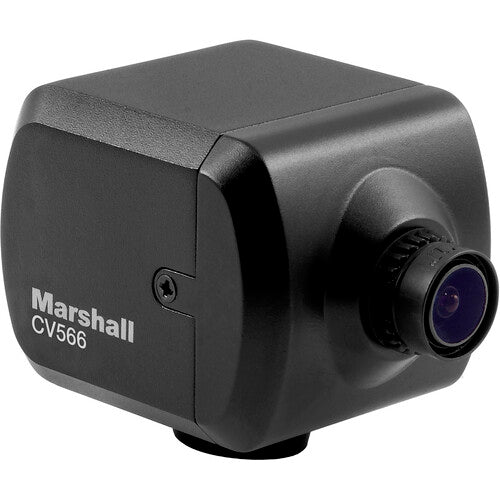

The Marshall CV566 Genlock Mini Broadcast Camera features a cutting-edge Sony 1/2.8" solid-state sensor with 2.2MP resolution and Tri-Level Genlock synchronization. Its compact design delivers outstanding video quality via 3G-SDI and HDMI outputs, maintaining true color fidelity even in low-light conditions down to 0.01 lux. Supporting HD resolutions up to 1080p and a versatile range of frame rates, this camera is ideal for professional broadcast applications requiring precision and flexibility. The included 4.0mm interchangeable lens enhances adaptability for diverse shooting environments.
Features
- 1/2.8" 2.2MP Sony Exmor Sensor
- M12 Lens Mount, 3.6mm Lens Included
- Capture up to 1080p60 Video

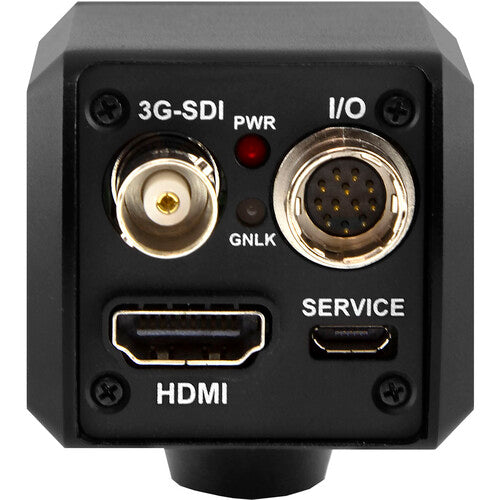

- 3G/HD-SDI & HDMI Outputs
- Genlock Sync/RS485/Audio Hirose Port
- Digital Image Stabilization, AWB
- Image Flip/Mirror, Digital Zoom
- Software-Based & CV-RCP-V2 Control
- Micro USB Port for Firmware Updating
Specifications
| Compatibility |
Marshall M12 Lens Mount |
| Inputs/Outputs |
|
| -USB I/O |
2.2 MP 1/2.8" Type Sony |
| -Video I/O |
1x BNC (3G-SDI) Output |
|
1x HDMI Output |
| -Audio I/O |
- |
| -Other I/O |
- |
| Wireless |
- |
| Power Source |
Proprietary Interface |
| Power Consumption |
6 W |
| Mounting |
1x 1/4"-20 Thread |
| Color |
Black |
| Material of Construction |
Aluminum |
| Weight |
- |
What's in the box
- Marshall Electronics Micro CV566 Genlock Camera with 3.6mm Lens
- 3.6mm M12 Lens
- 12-Pin Hirose Breakout Cable
- 12V Power Supply
- Limited 1-Year Extension with Registration
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
