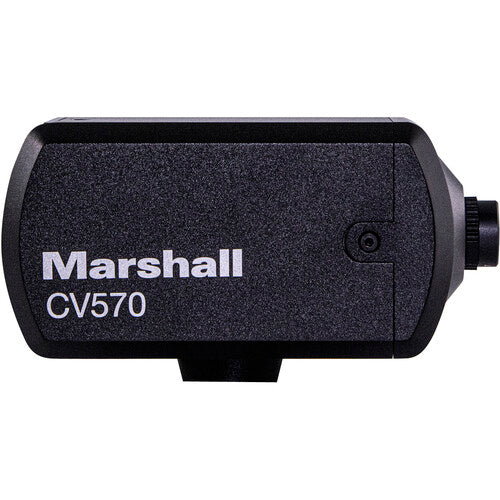

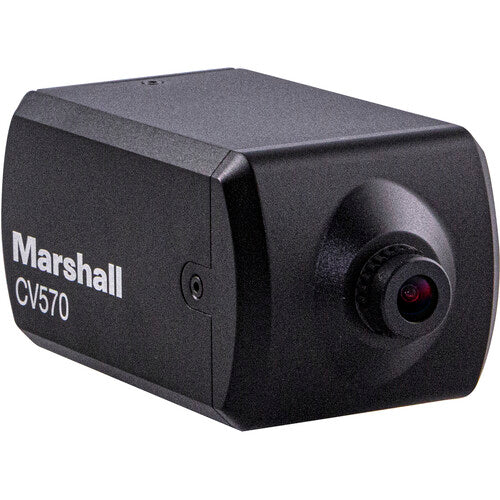

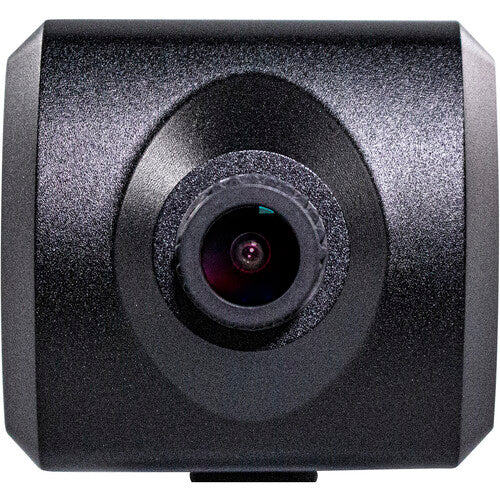

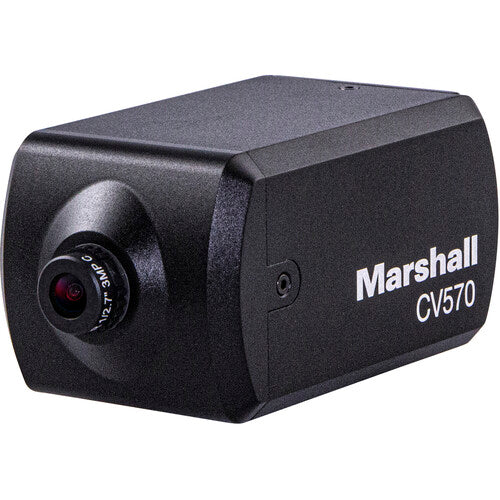

The Marshall CV570 Miniature HD Camera delivers exceptional versatility for professional live production environments. Equipped with a 2.2MP sensor, it captures crisp 1080p60 video and supports multiple output formats including NDI|HX3, SRT, IP streaming, and HDMI. Its compact design and M12 lens mount, paired with a 4mm wide-angle lens (85° FOV), allow flexible installation and lens interchangeability. Powered and controlled via a single PoE cable, the CV570 integrates seamlessly into broadcast, corporate, courtroom, sports, and worship settings, offering reliable, high-quality imaging in a discreet form factor.
Features
- Capture up to 1080p60 Video
- M12 Mount with Removable 4mm Lens
- IP, NDI|HX, SRT & HDMI Outputs
- Stream, Control & Power via PoE
- NDI, VISCA-over-IP/RS-485 & IP Control
Specifications
| Compatibility |
Marshall M12 Lenses / CV-PT-HEAD Pan/Tilt Head |

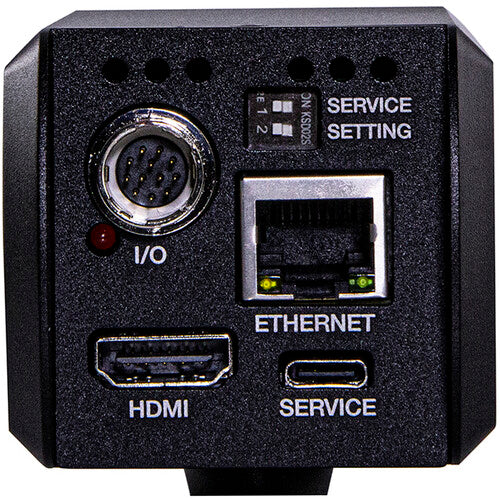

| Inputs/Outputs |
|
| -USB I/O |
1 x USB-C 2.0 Female Input |
| -Video I/O |
1x RJ45 Input/Output |
|
1x HDMI Output |
| -Audio I/O |
- |
| -Other I/O |
12-Pin I/O for Pan/Tilt Head |
| Wireless |
- |
| Power Source |
PoE |
| Power Consumption |
6 W |
| Mounting |
- |
| Color |
Black |
| Material of Construction |
Aluminum |
| Weight |
- |
What's in the box
- Marshall Electronics CV570 Miniature HD Camera with NDI|HX3, SRT & HDMI
- Camera Breakout Cable
- 3.6mm Lens in M12 Mount
- 12 VDC Power Supply
- Limited 2-Year Manufacturer Warranty
